010-02815-20 Garmin Cortex MI SOTDMA SmartAIS Transponder with Remote Vessel Monitoring

SKU: 010-02815-20

$2,199.00 Inc. GST

Product-Overview_Cortex_1.3_GLOBAL.pdf Vesper_Marine_Cortex_Hub_Installation_Guide_English_DEC21_WEBv2.pdf 2022-Vesper-Marine_Catalogue_SEP21_WEB.pdf

010-02815-20 Garmin Cortex MI SOTDMA SmartAIS Transponder with Remote Vessel Monitoring

Description: 25W marine Communication Hub with SmartAIS Transceiver
In this pack
  • M1 Hub
  • GPS antenna
  • Power cable
  • Audio cable
  • External sensors cable
  • External Wi-Fi® antenna
  • VHF patch cable

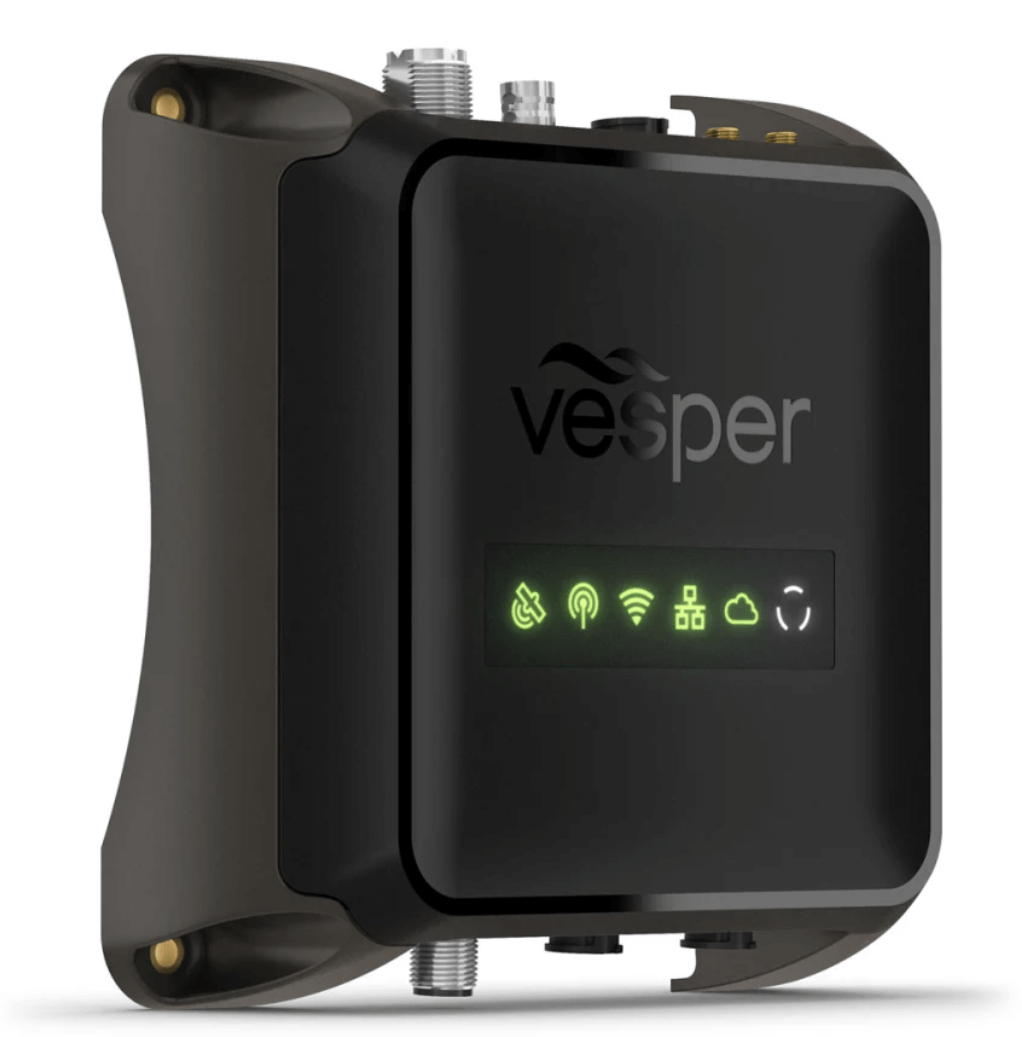

RELAX. CORTEX IS ON WATCH FULL-TIME.

The Cortex M1 hub combines advanced collision avoidance technology with proactive alerting plus remote monitoring and control of onboard systems from your compatible smartphone.

A high-speed smartAIS transponder transmits your boat’s location and heading and proactively warns of certain collision threats.

In addition to collision alerts, smartAIS will trigger alarms for anchor drag or man overboard situations.

This hub comes VHF-ready. Simply add a Cortex handset (sold separately) for full VHF radio capability.

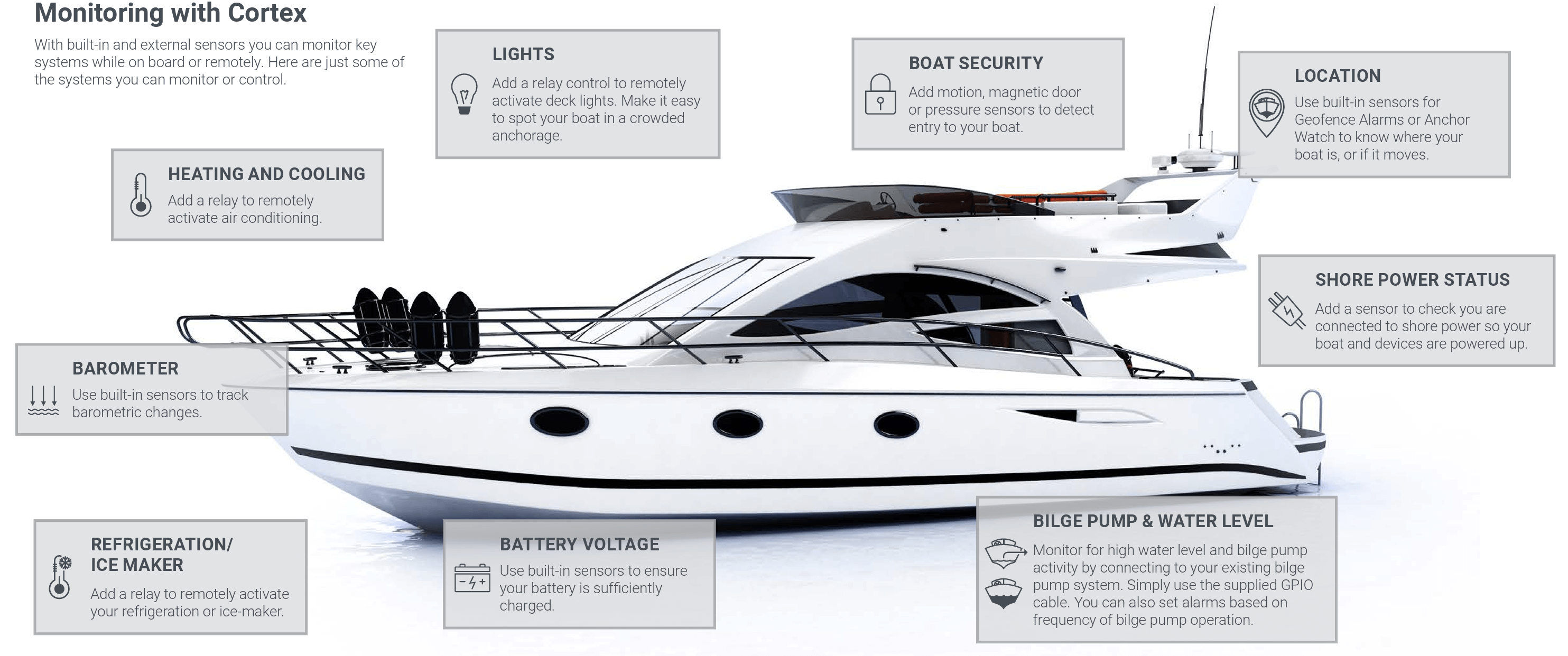

Cortex apps let you monitor boat systems, receive alerts and remotely control devices from your compatible smartphone.

A GPIO port and supplied cable allow you to monitor bilge pumps, security sensors, shore power and more.

NMEA 2000® networking allows you to view Cortex data on your connected MFDs and chartplotters.

NOTE: Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Garmin – Cortex M1 SOTDMA SmartAIS, and Remote Vessel Monitoring

Transmitter frequency error Less than 300 Hz
Unit size M1: 168 x 168 x 58.7 mm (6 5/8″ x 6 5/8″ x 2 5/16″)
H1/H1P: 164.8 x 71.8 x 21.4 mm (6 1/2″ x 2 13/16″ x 7/8″)
Weight M1: 770 g
H1: 285 g
H1P: 235 g
Water rating IPX7
Operating voltage M1: 9-33V
H1/H1P: 12-24V compatible
Current draw 12V: 6A max, 700mA m
Operating temperature -25°C to +55°C
VHF voice
ATIS
Ant connector SO239
Splitter Max input power 25 W
Insertion loss RX 0dB, TX < 2dB
Splitter connector BNC

VHF Voice
VHF frequency range Tx 156.025–161.600 MHz
VHF frequency range Rx 156.050–163.275 MHz
Dedicated Rx VHF channels 3
VHF power output 25 W, 1 W (high, low)
Region U.S., Canada, International
Sensitivity (12 dB SINAD) -116 dBm
Adjacent VHF channel selectivity 80 dB
Spurious response 70 dB
VHF intermodulation 70 dB
Spurious emissions Less than -80 dBc (at 25 W)
Max audio output power 10 W, < 1% THD
Max antenna gain 6 dBi

Class D DSC
Class Class D
Dedicated Rx DSC channels 1
Sensitivity (1% BER) -113 dBm
Adjacent DSC channel selectivity 80 dB
DSC intermodulation 70 dB

AIS
Class SOTDMA Class B
Dedicated Rx AIS channels 2
Frequency range 156.025 – 162.025 MHz
AIS power output 5W
AIS Sensitivity (20% PER) -113 dBm
Adjacent AIS channel selectivity 80 dB
AIS intermodulation 67 dB

GNSS
GNSS sensitivity -167 dBm
Constellations GPS, GLONASS, BeiDou, Galilleo
Channels 72
Differential support SBAS, WAAS, EGS
Navigation rate 10 Hz
Connector SMA
Certifications IEC 61108
Features anti-jamming, anti-spoofing

Networking
NMEA 2000® Gateway 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183
NMEA 2000® LEN 2
NMEA 0183 detail 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000®, 4800/38400 baud
Wireless security WPA2 Personal
Cloud connectivity LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port
Control outputs 2; low side driven (max 150mA)

Sensors
Ambient light sensor
NMEA 2000 Compatible
Heading 9-axial, accuracy: +/- 10 deg, updated rate: 10 Hz (max)
Barometer Update rate 1Hz max (averaged)
Battery voltage Measured at power input
External sensor inputs 5; Digital (0-24V), analog (0-17V)

Audio
Supported functions VHF RX, Alarms
Amplifier M1: 10W Class D, THD < 1% 4 ohm
H1/H1P: 3W Class D amplifier, THD < 5% @ 85dBA
External speaker 10W, 4 ohm
External loudspeaker 30W, 4 ohm

Display
Screen LCD TFT Si, 640 x 800, 24-bit color
Touch capacitive, optically-bonded to LCD
Touch feature glove and salt water operable
Cable length 6 ft (2 m)
Channel 16 shortcut

Electrical features
Compass safe distance standard 80 cm (31.5″), steering 40 cm (15.7)

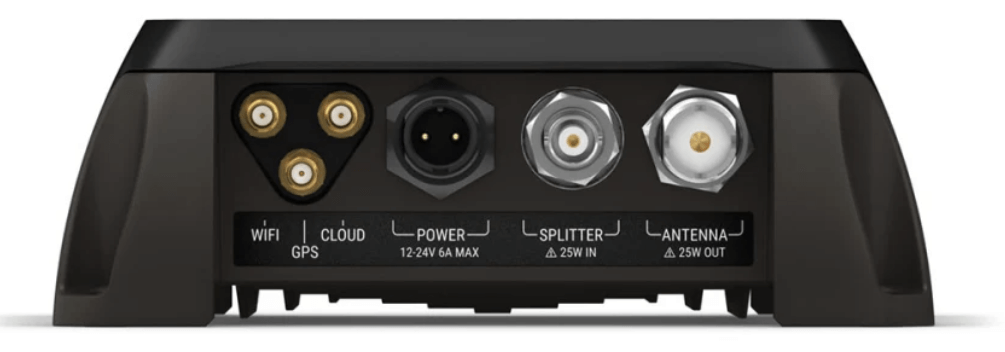

Connections
Connections Wireless Connectivity access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional)

Instrument Features
Backlight 600 cd/m2
