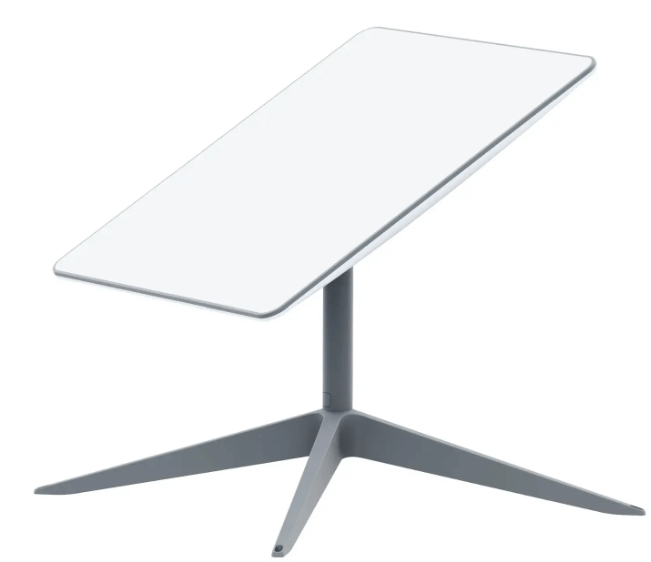

2541005 Starlink Actuated High Performance System

Engineered by SpaceX, Starlink’s Actuated High Performance Kit is designed to deliver high-speed, low latency internet while in motion. The Actuated High Performance Kit features a wide field of view and enhanced GPS capabilities to ensure consistent connectivity on the go.

Key Features

• Best for businesses, enterprise applications, and power users
• Higher reliability for high demand users
• Easy self-install
• No contracts, cancel service at any time
• Type: Delivers high-speed, low latency internet while in motion
• Wi-Fi: 802.11ac Dual Band Wi-Fi 5 – 3×3 MIMO
• Design features: Monthly service plan required

Best for mobility applications: RV, Maritime, Mobile Businesses

Starlink’s Actuated High Performance Kit is the only designated Starlink for in motion use in approved countries.

Permanent installation required
Wedge Mount Included. Bears a small footprint, requiring minimal space on your vehicle or vessel.

Monthly service plan required
Best paired with Mobility or Maritime Service Plans. All Mobile Priority Plans come with high priority data, 24/7 prioritised support and a publicly routable IPv4 address

Get online in minutes
The Actuated High Performance Kit includes your Starlink, Router with Router Mount, Pivot Mount, Power Supply with Mount, and Cables.

No contracts, pay as you go
Starlink Mobile Priority Plans provides the ability to pause and un-pause service at any time and is billed in one-month increments, allowing users to customise their service to their individual needs.

Works anywhere with a clear view of the sky, including polar regions
The Actuated High Performance can see more of the sky, allowing it to connect to more satellites and better serve users on the go.

Weather resistant
Delivers high speeds even in severe environments, such as extreme temperatures, high humidity, or heavy snowfall.

Manage Starlink on the mobile app
Download the Starlink app to check which service plans are available in your area and to determine the best set up location before install.

Specifications – Starlink Actuated High Performance Kit
Antenna – Electronic Phased Array
Field of View – 140°
Orientation – Motorized Self Orienting
Dish Weight – 6.9 kg (15 lbs) without Cable
– 9.4 kg (21 lbs) with 25 m (82 ft) Cable
Environmental Rating – IP56
Operating Temperature – -30°C to 50°C (-22°F to 122°F)
Wind Speed – Operational: 80 kph+ (50 mph+)
Snow Melt Capability – Up to 75 mm / hour (3 in / hour)
Power Consumption – Average: 110-150 W
Wi-Fi – Dual Band Wi-Fi 5 – 3×3 MIMO
User LAN – RJ45 Cable

Router
Wi-Fi Technology – 802.11ac Dual Band
Generation – Wi-Fi 5
Radio – Dual Band -3 x 3 MIMO
Operating Temperature – -30°C to 50°C (-22°F to 122°F)
Weight – 1 kg (2.2 lbs)
Security- WPA2
Range – Up to 185 m2 (2000 ft2)
*Varies on placement, interference, and materials
Environmental Rating – IP54 – Configured for Indoor Use
Power Indicator – White LED | Base of Router
Mesh Compatibility – Compatible with up to 12 Starlink Nodes
Devices – Connect up to 128 devices

Power Supply Unit
Environmental Rating – IP56
Operating Temperature – -30°C to 50°C (-22 to 122°F)
Weight – 1.5kg (3lbs)
Grounding – Dedicated Earth Terminal
Power Specifications – 100-240V – 6.3A 50 – 60 Hz
Mounting – Included Wall Mount

What’s in the box?
1 x Dish
1 x Base
1 x Power Supply
1 x Router
1 x Starlink Cable (25m)
1 x Ethernet Cable (5m)
1 x Router Cable (2m)
1 x AC Cable -Power supply (1.8m)
1 x AC Cable- Router (1.8m)
