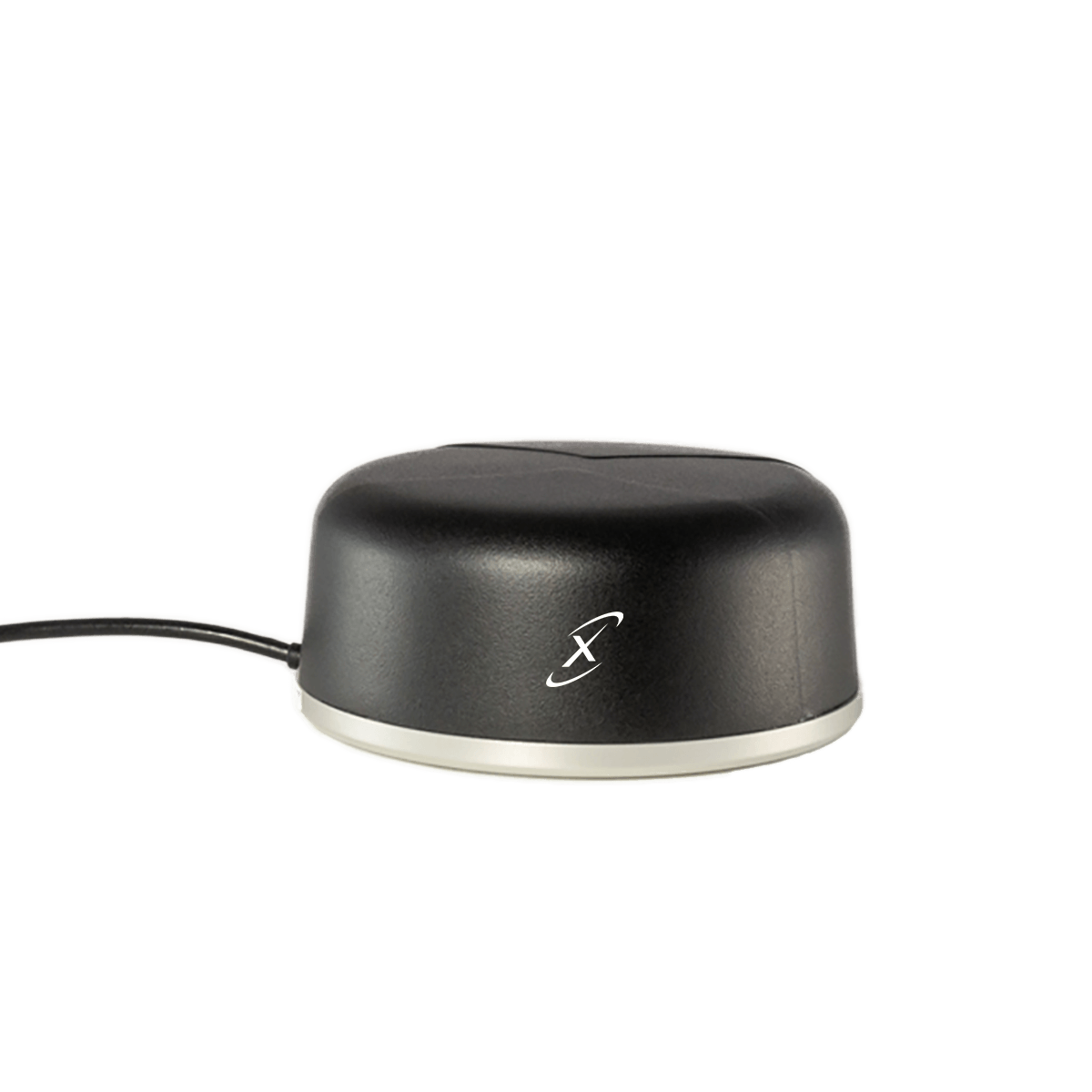

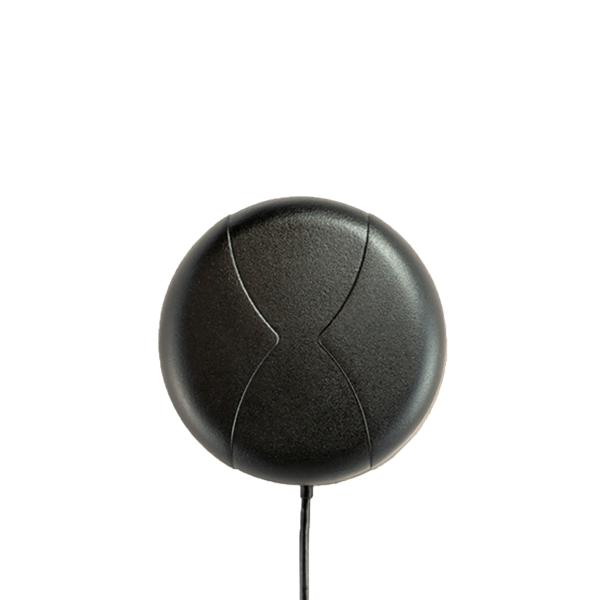

100-00101-02 Maxtena M1621HCT-LP-MM Iridium 9770 Certus SFX Antenna, Low Profile, Magnetic Mount
The M1621HCT-LP-MM is a high performance low profile antenna designed for the Iridium SFX/ RUDICS /SBD network, and built on proprietary Maxtena Helicore Technology.
The Helicore technology provides exceptional pattern control, polarization purity and high efficiency in a very rugged and compact form factor.
The omnidirectional antenna pattern allows this antenna to be easily installed in any location.
This antenna is designed to work with both Iridium voice and data modems including Iridium 9601, 9602N, 9603N, 9523N,|9522B and 9770 SFX.
The antenna features a SMA-Male connector and is designed to be magnetically mounted onto any suitable metal surface.
Optional mounting brackets for easy installation are available.
The antenna is IP66 rated and optimized for harsh environments on both land and maritime applications.
Features:
- Iridium SFX 9770 compliant
- IP66 and ROHS compliant
- Ground plane independent
- High gain & low axial ratio
- Magnetic Mount
- Fixed LMR100/RG174U cable, 1.5,(60in) terminated with SMA-Male Connector
- Low profile
Application
- Drones
- Robotics
- Military radios
- GNSS
- Oil & Gas
- Automotive
- IOT
- SATCOM
- Security
- Autonomous Applications
