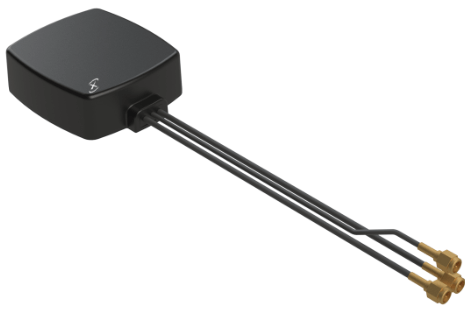

100-00206-01 Maxtena MEA-51G-MA Iridium-5GNR-GLONASS Antenna, Magnetic-Adhesive Mount
100-00206-01 Maxtena MEA-51G-MA Iridium-5GNR-GLONASS Antenna, Magnetic-Adhesive Mount
The MEA-5IG-MA magnet adhesive Mount Antenna is a 3-in-1 low profile antenna solution, with a very high-performance ideal for maintaining constant network connectivity.
The MEA-5IG-MA covers all 5GNR, Iridium and GPS/GLONASS/ /QZSS/Galileo standard frequencies. This is an ideal antenna for telematics systems, remote surveillance, asset tracking and any IOT system applications.
The high performance and low profile make this antenna ideal for the most challenging installations.
This Magnetic or Adhesive mount antenna is fast and easy to install with maximum durability offering IP67 rated housing and anti-rotation mounting.
The MEA-5IG-MA has a three cables with a SMA-Male standard connectors, 3m standard cable length and is fully customizable by offering additional connector types, cable lengths and cable types.
Features:
- 5GNR/Iridium & GPS/GLONASS/QZSS/Galileo frequency coverage
- Easy mounting: Magnetic/Adhesive Mount
- Iridium Certified
- Low profile
- High Performance
- Pre-Filtered GNSS
- Ground plane independent
- Customizable Cable and Connector
- Dimensions 89 × 76 × 27/30 mm
- IP67
- IP69
Application
- IoT applications
- Telematic
- Navigation
- Satellite Communications
- LTE applications
- Satellite M2M
- GNSS
