100-00227-01 Maxtena MEA-1621-MT-MA Iridium Antenna, Bolt Mount, Side Exit Cable 30cm
100-00227-01 Maxtena MEA-1621-MT-MA Iridium Antenna, Bolt Mount, Side Exit Cable 30cm

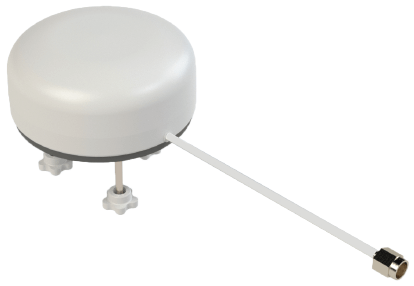

The MEA-1621-MT-MA is an external antenna designed for the Iridium Network.
The antenna provides exceptional pattern control, polarization purity and high efficiency. It offers excellent performance at low orbit and a sleek and offers robust pole-to-pole coverage.
The MEA-1621-MT-MA is low profile design antenna with easy mounting, featuring a standard SMA-Male connector and a 300cm long LL195W cable and is rated IP-67 when mounted.
It can be used to boost the performance of the Iridium handsets among other uses.
This low-profile antenna is a screw mount antenna with rugged ABS plastic housing and is ideal for the most demanding environmental challenges.
The MEA-1621-MT-MA provides outstanding performance for any telematics and fleet management application.
Features:
- Optimized for Iridium Network
- High Performance
- High efficiency & 4.5 dBic Iridium Peak Gain
- Easy mounting: Screw Mount
- Ground plane independent
- Rugged Design
- Customizable Cable and Connector

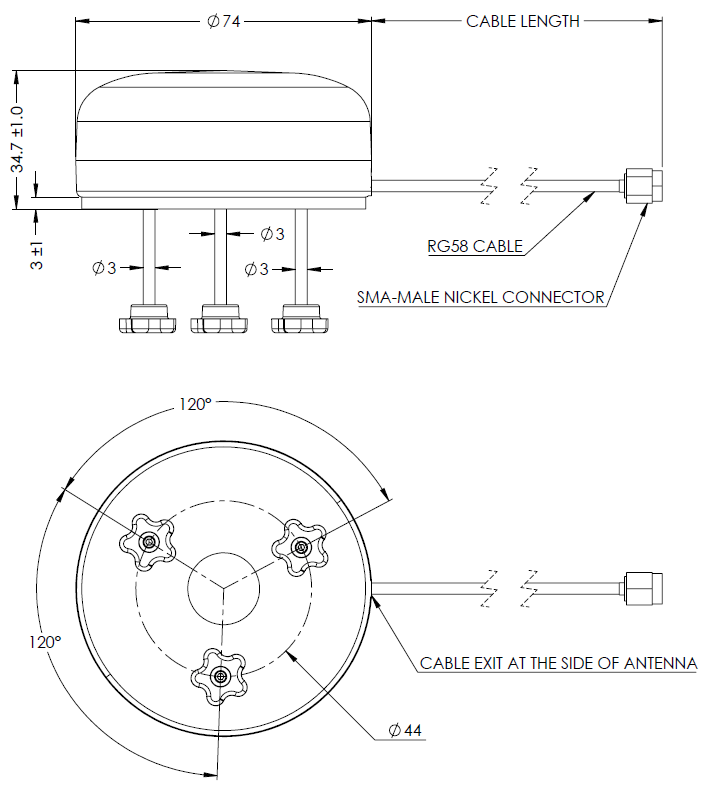

- Low profile: Ø 74 × 34.7 mm
- IP67
Application
- Satellite M2M
- Millitary radios
- GNSS
- Oil & Gas
- SATCOM
- Maritime
- Defense & Military
- Massive IOT
- Public safety communications
