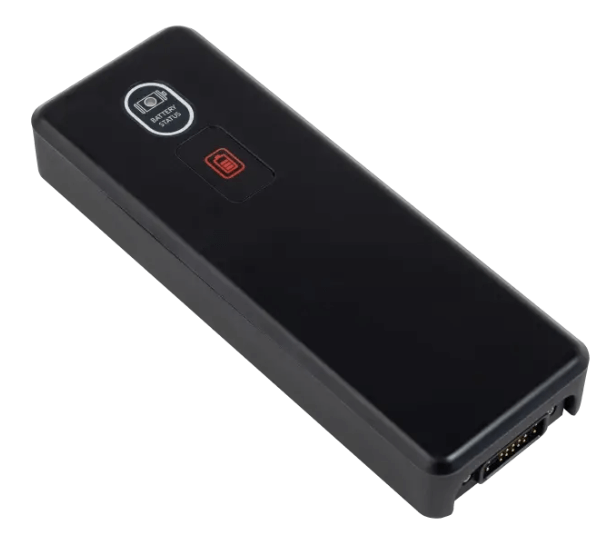

100203 Satcube Ku Battery, 500mAh Li-on
This is the genuine Satcube original spare battery, as supplied with your terminal, and is:
Compatible all Satcube and Satcube Secure series Ku Terminals
$863.50 Inc. GST
100203 Satcube Ku Battery, 5000mAh Li-on, also suits Satcube Secure Terminals
Compatible all Satcube and Satcube Secure series Ku Terminals
This is a genuine Satcube original spare battery, as supplied with your terminal, and is:
Features
- Dimensions: 22.5 x 8.0 x 3.5cm(9.0 x 3.0 x 1.4in)
- Weight: 0.75kg(1.6lbs)
- IATA Compliant
- On-board aircraft approved Lithium-Ion battery with 98Wh capacity.
- The battery gives approximately one hour of full transmit time.
- Charged either when the terminal is connected to external power or by external battery charger.
BATTERY SPECIFICATIONS
- Type of battery: Lithium ion battery pack with PCM safety circuit and wires.
- Cell model: INR18650-25R, 3.7V, 2500mAh
- Weight: Approx. 488g
- Rated capacity: 5000mAh TYP. 4900mAh MIN.
- Nominal voltage: 18.5V
- Watt hour rating: 92.5Wh
- Charging method: Constant current + constant voltage
- Max. charge voltage [V]: 21V (4.2V/Cell)
- Max. continuous charge current: 4.0A
- Rec. Charge cut off: 100mA or timer 3.0h
- Max. continuous discharge current: 7.5A
- Rec. discharge cut off: 12.5V (2.5V/Cell)
- Internal impedance: <200mΩ
- Cycle life: After 250 cycles, >60% of initial capacity
- Over-charge detection: 4.25V typical
- Over-discharge detection: 2.50V typical
- Discharge over-current detection: 12A to 20A typical
- Charge over-current detection: 6A to 10A typical
- Charge/discharge over-temperature detection: 65°C typical
- Ambient temp. range for storage ≤3 months: Approx. -10°C to 35°C
- Ambient temp. range for storage ≤12 months: Approx. -10°C to 30°C
