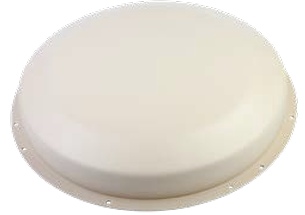

Description: Ruggedized, right-hand circularly polarized antenna designed for tactical vehicles during on-the-move operations.
The Low-Profile Vehicular SATCOM Antenna does not require a metal ground plane.
This is a ruggedized right-hand circularly polarized antenna designed for tactical vehicles during On-The-Move operations.
The 12006-9096-0X covers the entire hemispherical Field of View with a single port, eliminating the need to switch between high and low angles.
This SATCOM antenna also features a flange mount for easy installation.
Compatibility:
- Legacy SATCOM: AN/VRC-103(V), AN/VRC-110, AN/PRC-117G, AN/PRC-117F(C), AN/PRC-158G, RF-300M-V255
- MUOS SATCOM: AN/PRC-117G (with MUOS upgrade and Diplexer), AN/PRC-158 (with MUOS upgrade)
SPECIFICATIONS
Mechanical:

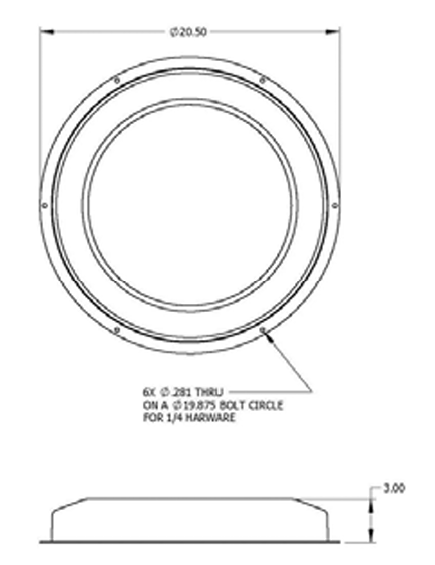

- Dimensions(HxDia): 3.0 x 20.5in (76.2 x 520.7mm)
- Weight: 10.8lbs (5.0kg)
- Connector: Type-N (Female)
- Mounting: (6 of) 0.28in through on 19.875in bolt circle for ¼in hardware
Colour:
- 12006-9096-01 CARC Green
- 12006-9096-02 CARC Tan
- 12006-9096-03 CARC Black
Frequency Range:
- 243-270 MHz UHF SATCOM Rx
- 292-318 MHz UHF SATCOM Tx
- 360-380 MHz MUOS SATCOM Rx
- 300-320 MHz MUOS SATCOM Tx
Other:
- Impedance: 50 ohm (nominal)
- VSWR: 1.5:1
- Power rating: 100W continuous power
- Elevation / (Gain dBiC): 90°(3.0), 45°(-0.5), 20° (-3.5)
- Beam Width: 70°
- Temperature: -40°F to 180°F (-40°C to 82.2°C)
- Designed and Tested to: MIL-STD-810G
