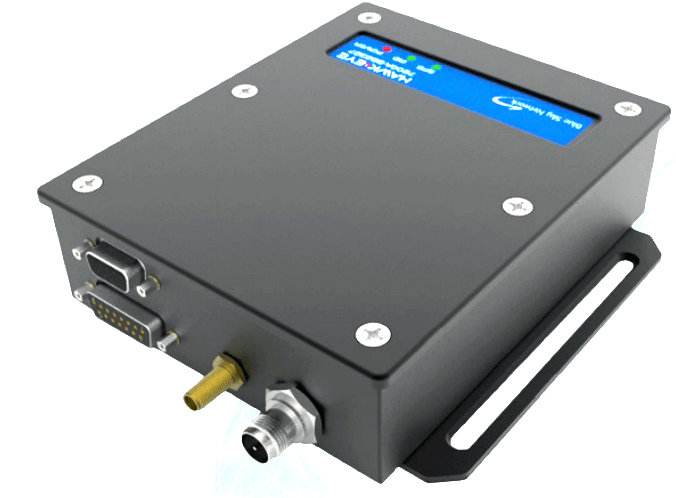

200800 BSN HawkEye 7200A, Satellite Tracking Unit Kit, FAA 8130-3 Certification

The HawkEye 7200A Satellite Tracking Device fulfills and exceeds the planned Global Aeronautical Distress Safety System (GADSS) performance criteria for Transport Aircraft from the International Civil Aviation Organization (ICAO). Air Transport Operators will be needed to equip aircraft with enabling hardware items that are wedded to back-end services in order to meet the ICAO GADSS goal over the next several years. These plane trackers will need to be able to detect aberrant situations in flight on their own, as well as be “tamper-proof” and independent of the aircraft’s power.

There’s no need to wait when the HawkEye 7200A and SkyRouter, the industry’s top cloud-based web portal, are available today.
Blue Sky Network provides aircraft operators with an ICAO GADSS system that is “best-in-class” in terms of meeting all expected aircraft tracking standards.

The New Standard

The HawkEye 7200A satellite tracking system fulfills and exceeds the planned Global Aeronautical Distress Safety System (GADSS) performance criteria for Transport Aircraft from the International Civil Aviation Organization (ICAO). Air Transport Operators will be needed to equip aircraft with enabling hardware items that are wedded to back-end services in order to meet the ICAO GADSS goal over the next several years. These plane trackers will need to be able to detect aberrant situations in flight on their own, as well as be “tamper-proof” and independent of the aircraft’s power.

There’s no need to wait when the HawkEye 7200A and SkyRouter, the industry’s top cloud-based web portal, are available today. Blue Sky Network provides aircraft operators with an ICAO GADSS system that is “best-in-class” in terms of meeting all expected aircraft tracking standards.

Stay Connected At All Times

The HawkEye 7200A approved FAA flight tracker now has access to SkyRouter, Blue Sky Network’s powerful cloud-based web gateway. Operators can see and manage aircraft communication from any point in the world at any time using SkyRouter. Using SkyRouter to its full potential provides operators with comprehensive control and visibility of aircraft activities.

If the operator deems aircraft communication irregular, SkyRouter will keep an eye on it and send out notifications locally as well as by SMS or email as directed. When a distress event occurs on the aircraft while it is in flight, the operator will receive reports at a faster rate—everything is customizable at the operator’s option.

Light As Air, More Powerful Than Ever

The HawkEye 7200A weighs only one pound and has the most advanced technology on the market, thanks to Iridium’s robust worldwide network. Its high-quality GNSS receiver combines GPS and GLONASS for extremely accurate double-level tracking.

Blue Sky Network’s flexible firmware platform also allows for easy remote upgrades to onboard hardware as the evolution of performance based GADSS criteria changes. The unprecedented small form factor of the HawkEye 7200A was designed to allow the unit to replace the required #2 ELT (a pending ICAO proposal).

FEATURES

ICAO GADSS Qualifying Features:

• Normal tracking – optional settings set by aircraft operator
• Operator defined autonomous position reporting options based on time, location or events

ICAO Projected Abnormal Event Position Reporting:

• Ship power disconnected while in flight (with battery backup option)
• Variable advanced reporting geofences – different rates based on geofence
• Compound rules capability (e.g >20,000 ft and V/S > 5000 FPM
• Attitude deviations as defined by an Operator
• Over-the-air reset option by Operator
• Ping option by Operator

Additional Product Features:

• High grade GNSS receiver inside including GLONASS
• FAA- certified, AML STC
• Iridium-certified
• ELT replaceable unit with same three wire cockpit controllability
• Over- the-air parameter changes
• Device side hosted geofences
• Over-the-air firmware upgrade option

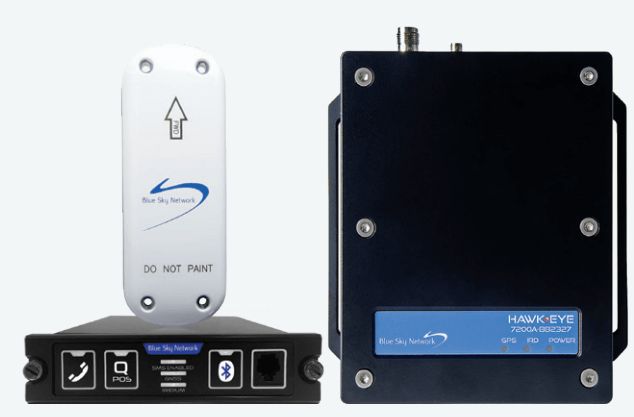

• HE100A Accessory Option includes voice capability and Bluetooth connectivity to BSN iOS Apps for messaging and forms
• QPOS

Benefits

• True Global Coverage – The Iridium global network of 66 low-earth-orbit (LEO) satellites offer faster connection times and true global coverage, so you know where your important assets are all of the time.
• QPOS Button – With a single press of the Quick Position Button (QPOS), you can quickly send an alert and position report to your contact list through SkyRouter.
• SkyRouter Command Center – The HawkEye 7200A communicates directly to SkyRouter, Blue Sky Network’s web portal—where you can track, communicate and manage all your assets.
• Advanced Device-Side Geo-Fencing – The device connects directly with SkyRouter, which supports advanced variable response (AVR) geo-fencing. It allows creating radius or polygonal fences, variable responses and alerts.
