257261014-GCB Inster OneWeb FoldSAT, LEO Ku Terminal for COTP, Green MIL, 2 Batteries, Case
257261014 INSTER OneWeb FoldSAT, LEO Ku Terminal for COTP, Green MIL, 2 Batteries, Case
The Inster FoldSat LEO Ku OW is a uniquely designed, folding flat-panel terminal that is highly portable, military-grade rugged and easy to deploy.
Available In:
• Military-grade in tactical GREEN
• Commercial-grade in WHITE
It integrates an electronically steered array (ESA) terminal into its compact form and operates at high speeds and full-duplex communication over Instelsat’s FlexMove LEO services carried over Eutelsat OneWeb’s Low Earth Orbit (LEO)
satellite constellation.
Features
- Throughput of up to 195 Mbps download and 32 Mbps upload speeds
- Features external GNSS input for GPS denied environments
- Measures 452L x 374W x 114H mm in folded portable form, and 855L x 374W x 57H mm unfolded when operational
- Comes with built-in Wi-Fi 6 capability, a military grade AC/DC unit, tripod and a set of optional extras (transit case, batteries, bespoke backpack)
- Designed in compliance with MIL-STD 810H and MIL-STD 461G standards
- Foldable design fits in a suitcase and can be carried by one individual
- Throughput up to 195 Mbps/32 Mbps full-duplex supports demanding use for comms and video
- Self-aligning and easy to use
- Operates on battery power for use in remote areas
- Wi-Fi 6 capabilities for use up to 100 feet
This provides you with low latency and high speeds to support highresolution images, live video, voice and data communications.
Altogether, this solution provides a transformative satellite connectivity solution.
Flat Panel ESA | LEO Ku Band | COTP Applications | Ruggedized | Low Profile

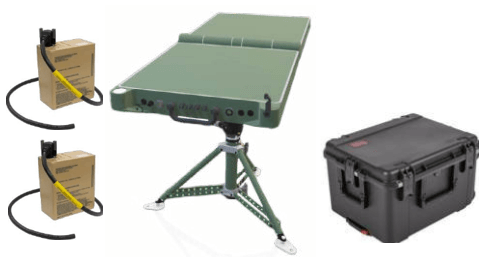

257261013 FoldSat LEo Ku OW Includes:
- 257261014 FoldSat LEo Ku OW Mil – Option 5 – Green Tripod
- 257261013 Person Portable User Terminal
- 257261101 ACC-4. Ruggedized Case
- 257261022 ACC-1. Tripod (Green)
- 257261019 ACC-2. AC/DC External Industrial + Cable
- 231301422 ACC-5. Military Grade Battery (2 units)
- 643400199 ACC-6. Battery Charger
- 133201236 ACC-7. Hot Swap Battery Cables
- 133400287 Ethernet Cable
- Quick Start Guide
- FAT Test report
- CE mark Declaration of conformity
- NOTE: This pack, you get – 1pce RUGGED TRANSIT CASE, and 2pcs BATTERIES
Application
Agencies/Branches
• Air Force
• Army
• Coast Guard
• Homeland Security
• Intelligence Community
• Law Enforcement
• National Guard Bureau
• Space Force
The Inster FoldSat LEO is offered in both military and commercial models, meeting requirements for mission-critical and commercial communications-on-the-pause (COTP) use even in the roughest of environments, where terrestrial networks are unreliable or unavailable.
Both models provide Wi-Fi 6 and interfaces for 1Gb Ethernet, night vision goggles and external GNSS inputs. When folded, this terminal easily can be carried anywhere, set up quickly and run on battery at full speed!
The FoldSat LEo Ku OW terminal is a person-portable, self-aligning, easy to deploy ESA user terminal optimized for operation over the OneWeb Ku-Band LEO satellite constellation. With its low-profile, foldable antenna, the Inster terminal represents a game changer for field operations and maintenance response in areas beyond the bounds of traditional fixed and wireless networks.
The terminal is compact and lightweight, yet delivering high-speed data, video and voice services under the toughest environmental conditions. It comes with a Wi-Fi 6 built-in modem, an industrial grade AC/DC unit, a tripod and a set of optional extras (transit case, backpack) which makes it the perfect solution for civil operations.
Main features
- COTP
- Lightweight, foldable, portable, flat-panel antenna
- Easy to install & self-pointing
- Government, defence, first responder use cases
- Operates with external batteries
- Ext. GNSS port for operation in GPS denied environments
- Wi-Fi 6 capability
Specifications:
- Dimensions(Folded): 452w x 374d x 114h mm
- Dimensions(Un-Folded): 855w x 374d x 57h mm (unfolded)
- Weight: 12.1 kg (17.8 kg with tripod and batteries)
- Operational temperature: -20°C to +55°C MIL-STD 810H, 461 compliant
- Power consumption: 150W (typical), 170W (peak)
Network Coverage
The operator Eutelsat OneWeb manages a constellation of 650 satellites in low Earth orbit at 1,200 km with polar coverage, providing high-speed Internet access to both professionals and individuals on land and at sea.
The service offers download speeds of up to 195 Mbps and upload speeds of up to 32 Mbps, with a latency of around 70ms and a commitment to bandwidth quality.
About fifty ground stations, progressively deployed worldwide, serve as access points to the Internet network and mark the rollout of services, regulated according to the respective countries’ regulations.
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
