INFORMATION / APPLICATION REFERENCE***************************************************  257261013 INSTER OneWeb FoldSAT, LEO Ku Terminal for COTP

The Inster FoldSat LEO Ku OW is a uniquely designed, folding flat-panel terminal that is highly portable, military-grade rugged and easy to deploy.

Available In:
• Military-grade in tactical GREEN(order part# 257261014)
• Commercial-grade in WHITE(order part# 257261013)

It integrates an electronically steered array (ESA) terminal into its compact form and operates at high speeds and full-duplex communication over Instelsat’s FlexMove LEO services carried over Eutelsat OneWeb’s Low Earth Orbit (LEO)
satellite constellation.

Features

Throughput of up to 195 Mbps download and 32 Mbps upload speeds
Features external GNSS input for GPS denied environments
Measures 452L x 374W x 114H mm in folded portable form, and 855L x 374W x 57H mm unfolded when operational

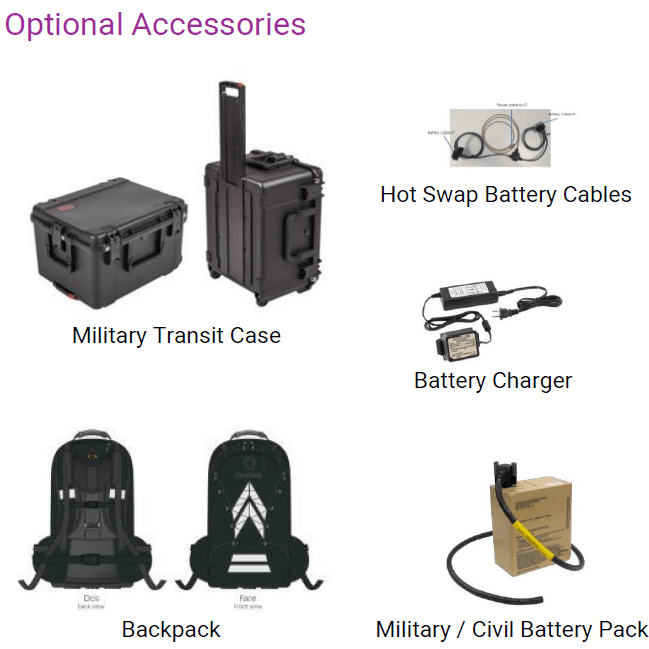

Comes with built-in Wi-Fi 6 capability, a military grade AC/DC unit, tripod and a set of optional extras (transit case, batteries, bespoke backpack)
Designed in compliance with MIL-STD 810H and MIL-STD 461G standards
Foldable design fits in a suitcase and can be carried by one individual
Throughput up to 195 Mbps/32 Mbps full-duplex supports demanding use for comms and video
Self-aligning and easy to use
Operates on battery power for use in remote areas
Wi-Fi 6 capabilities for use up to 100 feet

This provides you with low latency and high speeds to support highresolution images, live video, voice and data communications.

Altogether, this solution provides a transformative satellite connectivity solution.

Flat Panel ESA | LEO Ku Band | COTP Applications | Ruggedized | Low Profile

257261013 FoldSat LEo Ku OW Includes:

• 257261013 Person Portable User Terminal
• 257261100 ACC-1. Tripod (White)
• 133201230 ACC-2. AC/DC External Industrial + Cable
• 133400287 Ethernet Cable
• Quick Start Guide
• FAT Test report
• CE mark Declaration of conformity
• NOTE: This pack, you get – NO RUGGED TRANSIT CASE, and NO BATTERIES

Application

Agencies/Branches
• Air Force
• Army
• Coast Guard
• Homeland Security
• Intelligence Community
• Law Enforcement
• National Guard Bureau
• Space Force

The Inster FoldSat LEO is offered in both military and commercial models, meeting requirements for mission-critical and commercial communications-on-the-pause (COTP) use even in the roughest of environments, where terrestrial networks are unreliable or unavailable.

Both models provide Wi-Fi 6 and interfaces for 1Gb Ethernet, night vision goggles and external GNSS inputs. When folded, this terminal easily can be carried anywhere, set up quickly and run on battery at full speed!

The FoldSat LEo Ku OW terminal is a person-portable, self-aligning, easy to deploy ESA user terminal optimized for operation over the OneWeb Ku-Band LEO satellite constellation. With its low-profile, foldable antenna, the Inster terminal represents a game changer for field operations and maintenance response in areas beyond the bounds of traditional fixed and wireless networks.

The terminal is compact and lightweight, yet delivering high-speed data, video and voice services under the toughest environmental conditions. It comes with a Wi-Fi 6 built-in modem, an industrial grade AC/DC unit, a tripod and a set of optional extras (transit case, backpack) which makes it the perfect solution for civil operations.

Main features

COTP
Lightweight, foldable, portable, flat-panel antenna
Easy to install & self-pointing
Government, defence, first responder use cases
Operates with external batteries
Ext. GNSS port for operation in GPS denied environments
Wi-Fi 6 capability

Specifications:

Dimensions(Folded): 452w x 374d x 114h mm
Dimensions(Un-Folded): 855w x 374d x 57h mm (unfolded)
Weight: 12.1 kg (17.8 kg with tripod and batteries)
Operational temperature: -20°C to +55°C MIL-STD 810H, 461 compliant
Power consumption: 150W (typical)​, 170W (peak)

Network Coverage

The operator Eutelsat OneWeb manages a constellation of 650 satellites in low Earth orbit at 1,200 km with polar coverage, providing high-speed Internet access to both professionals and individuals on land and at sea.

The service offers download speeds of up to 195 Mbps and upload speeds of up to 32 Mbps, with a latency of around 70ms and a commitment to bandwidth quality.

About fifty ground stations, progressively deployed worldwide, serve as access points to the Internet network and mark the rollout of services, regulated according to the respective countries’ regulations.
