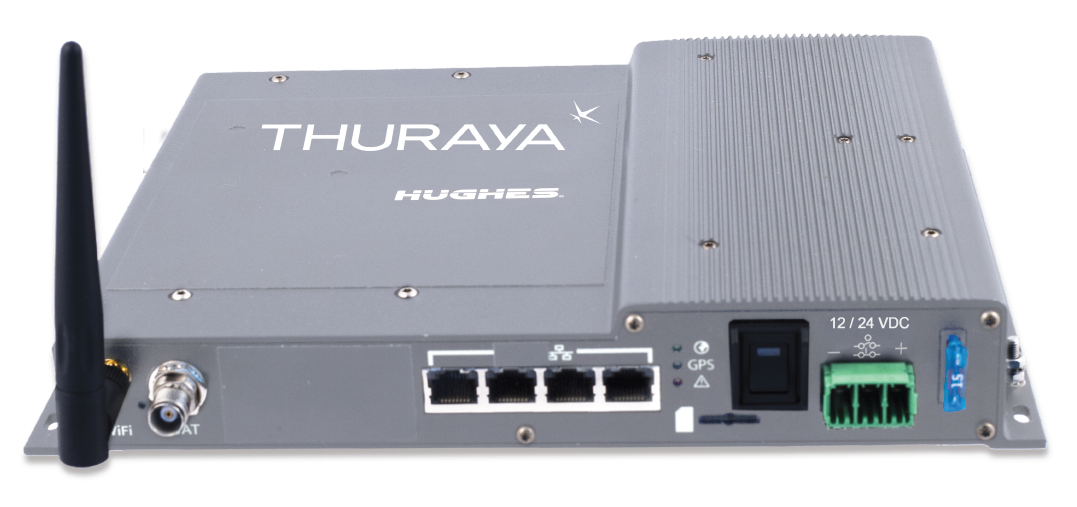

3500462-0004-01 Thuraya Orion IP Broadband System, BDU Terminal Unit

3500462-0004-01 Thuraya Orion IP Broadband System, BDU Terminal Unit

Description: Includes: Orion IP Broadband System, BDU Terminal Unit ONLY

Description: This is a replacement BDU Terminal Unit ONLY for Thuraya Orion IP Broadband Systems

Thuraya Orion IP  REFERENCE INFORMATION BELOW************************************************************

Thuraya Orion IP provides merchant maritime, fishing, governmental and leisure users with competitively priced, robust and
reliable data connectivity at rates up to 444kbps.

Thuraya Orion IP is a maritime-specific broadband terminal manufactured in partnership with Hughes Network Systems,
which supports broadband data communications at speeds up to 444kbps.

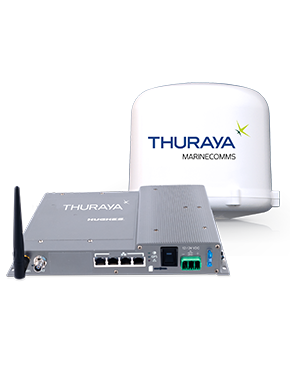

3500462-0004 Thuraya Orion IP Pack includes:

• 3500462-0004-01 BDU(Below-Deck-Unit) Terminal

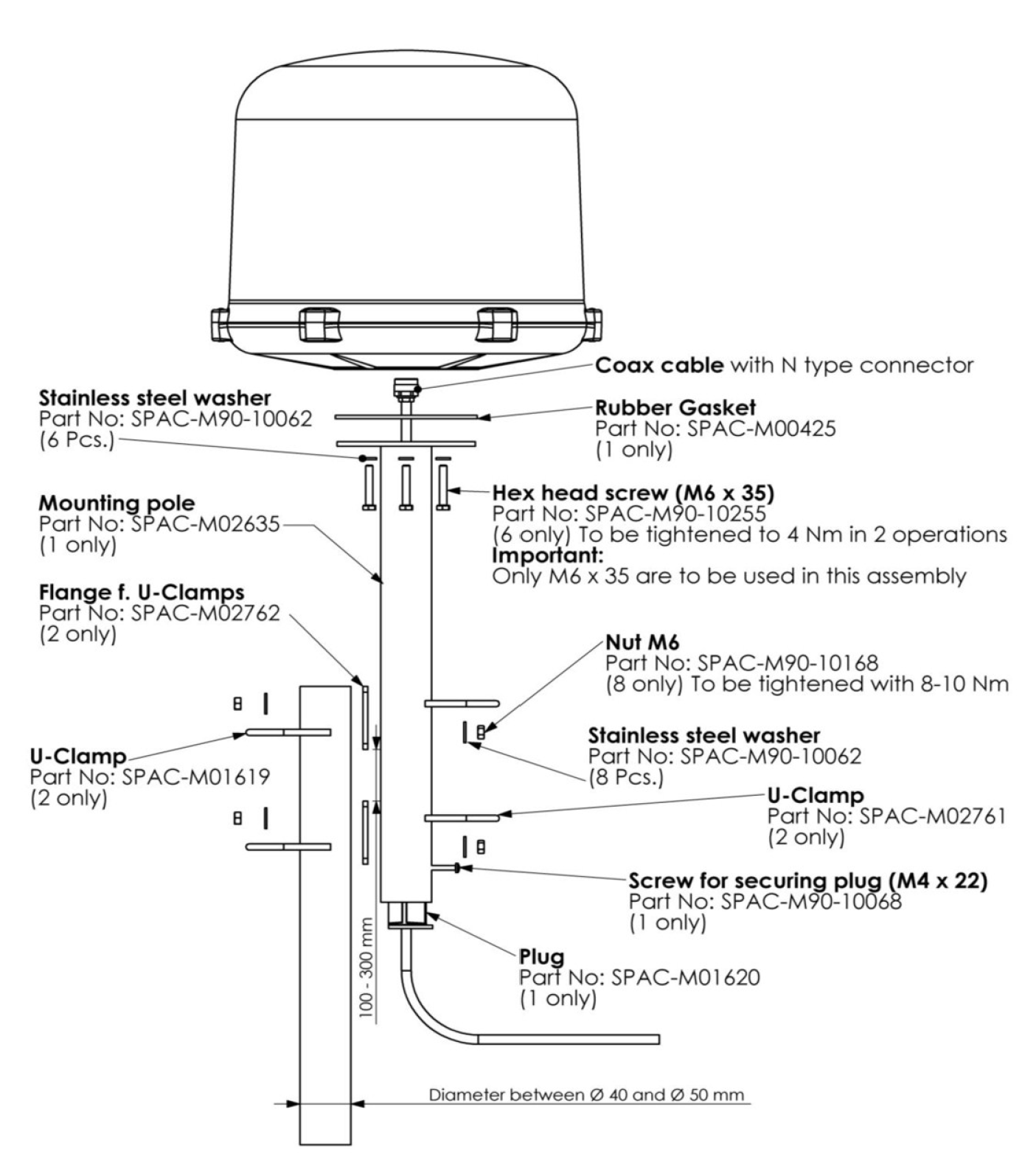

• 3500854-0001 ADU(Above-Deck-Unit) Maritime Antenna Type HN321
• 9506197-0001 WLAN antenna (2.4 GHz, 3 dB)
• 3500472-0003 Power cable with 3-pin connector
• 3500860-0001 SIM cover plate
• 9504275-0008 15 Amp, fast blow, ATO blade fuse (2 pieces)
• Installation Guide and User Manual
• Antenna Cable, RF Coax, N-male and TNC-male Connectors, 25m

OVERVIEW

Data service

Standard IP Up to 444/404kbps
Streaming IP Up to 384/384kbps, available in symmetric and asymmetric configurations of 16, 32,64,138, 256 and 384kbps

Physical characteristics

Weight (ADU) 4.0 kg
Weight (BDU) 2.2 kg
Size (ADU) 319.5mm x 277mm

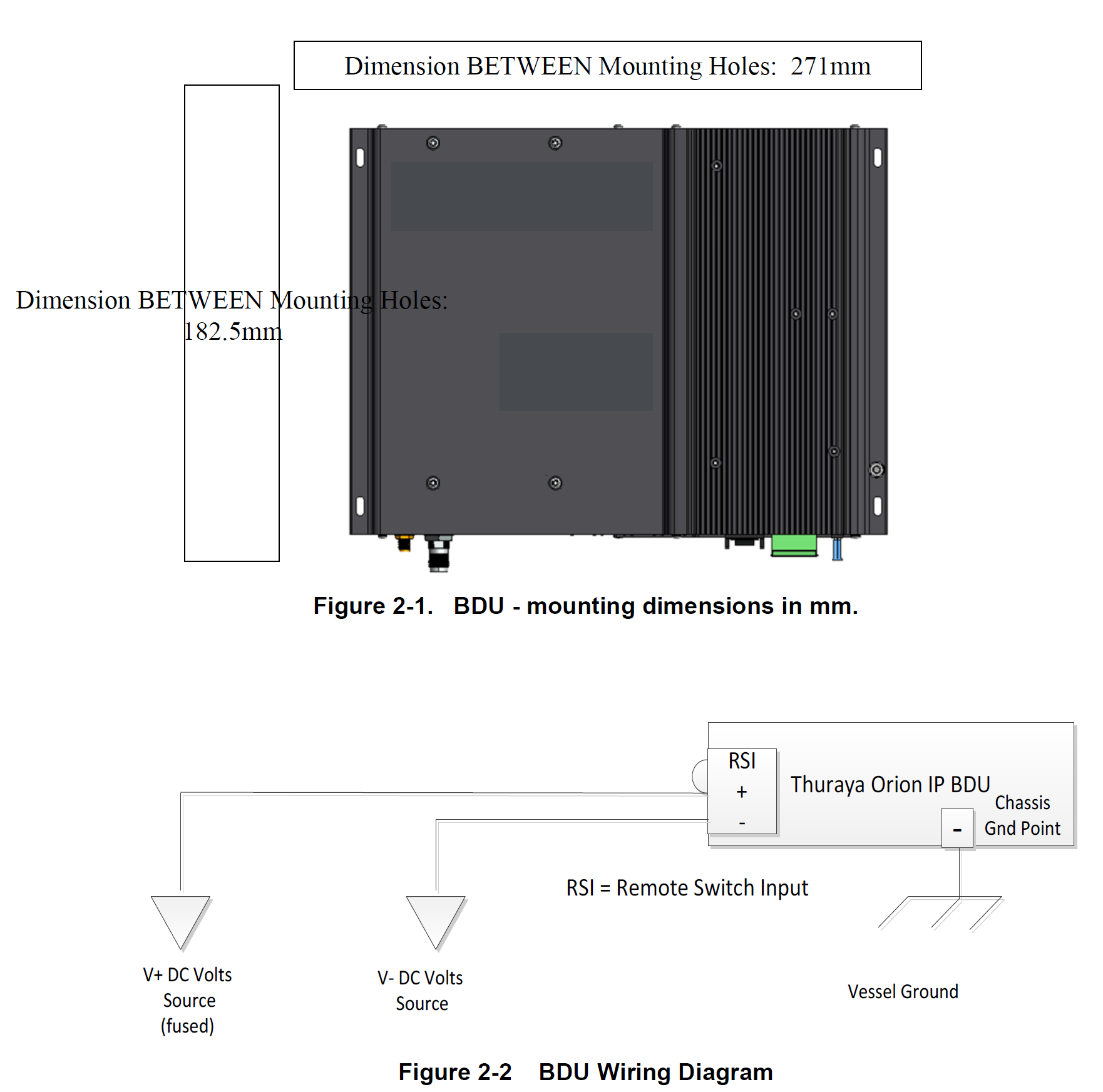

Size (BDU) 46mm x 281mm x 233mm

Key interfaces
Connectors 4 Ethernet (PoE-IEEE 802.3af standard),
DC input, WLAN port, Fuse, Sim slot
User interface Web-based graphical user interface
accessible via standard web browser
External connector Thuraya Satellite tracking antenna
HN321 (Maritime)

WLAN connectivity IEEE 802.11 b/g/n standard with:
– WEP, WPA and WPA2 encryption
– SSID broadcasting control
– MAC address filtering
– DHCP

The terminal features a combination of highly flexible features including:

· Small and lightweight
· Easy installation
· Built-in Wi-Fi
· MAC address filtering
· Port forwarding
· DHCP
Suitable for both business and crew communications, the terminal has been designed for users who want to take advantage of a simple IP connection to leverage the value-added hardware and software solutions provided to them by the Thuraya Service Partners.

Thuraya has a reputation as a leading provider of high quality satellite communications combining flexible and very competitive
rates with a powerful and reliable network.

Our commitment to this demanding market has been further strengthened with the release of Thuraya Orion IP, a brand new
broadband terminal, specifically designed for the harsh maritime environment.

Thuraya Orion IP provides merchant maritime, fishing, governmental and leisure users with competitively priced, robust and
reliable data connectivity at rates up to 444kbps.

At a time when ship owners and operators are on the hunt for solutions and services that maximize operational effectiveness of
the fleet as well as minimizing operational expenditure, Thuraya Orion IP is the natural choice.
