3500462-0004-L Thuraya IP Voyager Broadband System, Land-Mobile, Cable 6m
Thuraya IP Voyager is a high quality vehicular satellite terminal designed for a wide range of mission-critical operations such as border patrol, defence, and disaster response in areas inadequately served by terrestrial networks.
$12,862.30 Inc. GST
3500462-0004-L Thuraya IP Voyager Broadband System, Land-Mobile, Cable 6m
Description: Includes: Voyager IP Broadband System, and 6m Cable for Land Use
Thuraya IP Voyager is a high quality vehicular satellite terminal designed for a wide range of mission-critical operations such as border patrol, defence, and disaster response in areas inadequately served by terrestrial networks. The terminal enables users to collaborate reliably and efficiently with colleagues using video, data, and VoIP to achieve mission critical tasks, where failure is not an option.
Designed to connect at IP broadband speeds of up to 444kbps while on the move, the Thuraya IP Voyager is the only terminal capable of achieving streaming IP rates of up to 384kbps as well as user definable asymmetric streaming. The Thuraya IP Voyager also includes a built-in Wi-Fi access point with 802.11b/g/n technology and WPA2 encryption. In addition, there are four Power-over-Ethernet (PoE) ports that allow users to connect multiple wired devices.
Simple, quick and easy to install on any vehicle, connectivity to the Internet can be achieved within minutes.

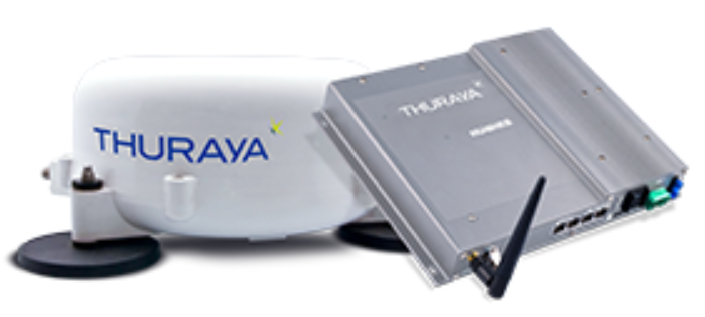

3500462-0004-L Thuraya IP VOYAGER Pack includes:
- 3500462-0004-01 Thuraya IP Voyager BDU(Below-Deck-Unit) Terminal
- 3500855-0001 Tracking Antenna Type HN221 with Magnetic Mounts
- 9506197-0001 WLAN antenna (2.4 GHz, 3 dB)
- 3500472-0001 Power cable with 3-pin connector
- 3500860-0001 SIM cover plate
- 9504275-0008 15 Amp, fast blow, ATO blade fuse (2 pieces)
- Installation Guide and User Manual
- Antenna Cable, RF Coax, N-male and TNC-male Connectors, 6m
- Note: The cable length can be changed, but the maximum loss must be less than <10 dB at 1.6 GHz.
OVERVIEW
Data rates: Standard IP up to 444kbps, Streaming IP up to 384kbps
Connectors: 1 x Ethernet, 1 Voice
WLAN connectivity: IEEE 802.11 b/g/n with WPA2 encryption
Mechanical vibration: 200-2000 Hz, 0.3 m2/s3 MIL-Spec 810B
BDU (Below Deck Unit)
Dimensions: 46mm x 281mm x 233mm(HxWxD)
Weight: 2.3 kg
Main power input: 10-32 Volt DC, 70W max (7A max)
Mechanical vibration: 200-2000 Hz, 0.3 m2/s3 MIL-Spec 810B
Antenna
Weight: 2.0 kg
Dimensions: 252mm x 119mm
IP rating: IP66
The terminal features a combination of highly flexible features including:
· Small and lightweight
· Easy installation
· Built-in Wi-Fi
· MAC address filtering
· Port forwarding
· DHCP
Suitable for both business and recreation, the terminal has been designed for users who want to take advantage of a simple IP connection to leverage the value-added hardware and software solutions provided to them by the Thuraya Service Partners.
Thuraya has a reputation as a leading provider of high quality satellite communications combining flexible and very competitive
rates with a powerful and reliable network.
Our commitment to this demanding market has been further strengthened with the release of Thuraya IP Voyager, a brand new
broadband terminal, specifically designed for the harsh land environment.
Thuraya IP Voyager provides mining, construction, governmental and leisure users with competitively priced, robust and
reliable data connectivity at rates up to 444kbps.
At a time when ship owners and operators are on the hunt for solutions and services that maximize operational effectiveness of
the operations as well as minimizing operational expenditure, Thuraya IP Voyager is the natural choice.
Thuraya IP Voyager – SPECIFICATIONS
Physical Characteristics
Weight (BDU) 2.2 kg
Weight (ADU) 2.0 kg
Size (BDU) 46 mm x 281 mm x 233 mm
Size (ADU) 252mm x 119mm
Packet Data Services
Streaming IP 384 kbps
Standard IP 444 kbps
Environmental
Operating Temperature -25°C to +55°C
Storage Temperature -40°C to +80°C
Operating Humidity 95% RH at 40°C
Mechanical Vibration 200-2000 Hz, 0.3 m²/s³ MIL-Spec 810B
Unpacked Drop 0.5m (cosmetic damage only)
Ingress Protection (ADU) IP56
Compliance and certifications
CE, EMC 301 444, 301 489, IEC 60950
External Power
Main power input 10-32VDC
Maximum current 12A
Interfaces
Connectors
4 Ethernet (PoE-IEEE 802.3af standard)
Note: 48Vdc for PoE devices is
supplied over the TX, RX pairs. It is
active only when an 802.3af
compliant device is plugged in. The
other pairs (4, 5, 7, and 8) are unused.
User Interface Web-based graphical user interface
accessible via standard web browser
External Connector Thuraya Satellite tracking antenna
HN221(Land-mobile)
WLAN Connectivity
IEEE 802.11 b/g/n standard with:
– WEP, WPA and WPA2 encryption
– SSID broadcasting control
– MAC address filtering
– DHCP
