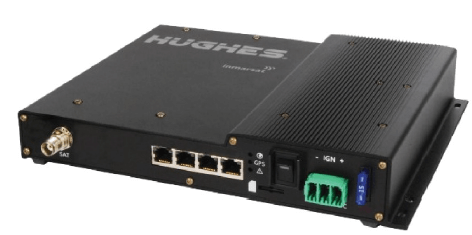

3500497-0012 Hughes 9450E-C10 System, Ethernet, PoE, POTS, ISDN

3500497-0012 Hughes 9450E-C10 System, includes the following:

• 9450 Modem with enabled: Ethernet, POTS, ISDN, PoE
• Part# 1504876-0001 > Class 10 Tracking Antenna
• Part# 3500472-0001 > DC Power Cord
• Part# 3501053 > RF Antenna to Modem Cable, 10m

AVAILABLE – 9450 Terminal Variants Size: (46 x 281 x 233mm, Wt. 2.2kg)

• 9450 > Ethernet (with PoE), POTS, ISDN, WLAN
• 9450E > Ethernet (with PoE), POTS, ISDN
• 9450L > Ethernet
• 9450LW > Ethernet, WLAN

AVAILABLE – 9450/9202m/9211 Antenna Variants:

Part# 1504876-0001 > C10 Tracking Antenna: Dim: 252 x 119mm, Wt. 2kg(includes part# 3501152-0001 Magnetic Mounts)

Part# 1504875-0001  > C11 Tracking Antenna: 477 x 152mm, Wt. 5.5 kg(does NOT include part# 3501152-00020)

Corporate disaster planners and remote field personnel can collaborate reliably and efficiently with various agencies and headquarters staff using video, voice, and data simultaneously. As with all Hughes BGAN models, the Hughes 9450-C11 includes a built-in wireless Wi-Fi access point. The Hughes 9450-C11 terminal is IP-based and offers selectable, dedicated Quality of Service(QoS) levels.

Simple, quick, and flexible options are available for installation on any vehicle. The mini-antenna may be permanently mounted for fleet-style installation or the optional magnetic roof mount can be
used for rapid installation and removal. The antenna includes a single, 8 meter RF cable connection.

The Hughes 9450-C11 terminal also has four (4) Ethernet ports with Power over Ethernet (PoE) that allow the user to connect multiple devices.
The terminal supports analog and ISDN circuit-switched voice calls, along with fax and 64 kbps ISDN data.

Connectivity On The Move
The Hughes 9450 boasts speeds of up to 464 Kbps while on the move or parked.
The compact 9.5″ diameter antenna may magnetically mount to any roof, and the controller provides wireless access for any computer or smart device in-range up to 100′.
The 9450 also has an ISDN port for ISDN 64Kbps capable machines.

A Moving Office
The 9450 will allow a standard 2-wire phone (battery operated) or compatible group 3 fax machine to plug directly with no configuration.
Every system has a unique phone number that can send and receive phone calls or faxes to any phone on the planet. It is truly a traveling mobile office.

Note: Antenna standard 10m cable length can be changed, but the maximum loss must be less than <10 dB at 1.6 GHz.
