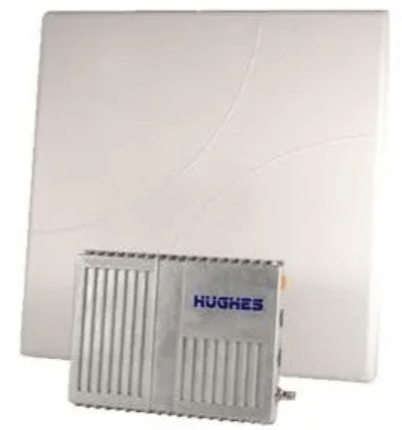

3500509-0004 Hughes 9502 C1/D2 M2M Terminal, Two-piece, ATEX
3500509-0004 Hughes 9502 C1/D2 M2M Terminal, Two-piece, ATEX - Image 2
3500509-0004 Hughes 9502 C1/D2 M2M Terminal, Two-piece, ATEX - Image 3

3500509-0004 Hughes 9502 C1/D2 M2M Terminal, Two-piece, ATEX

SKU: 3500509-0004

BR_9502_2pce_ODU-IDU_Hughes-9502-2-Data-Sheet.pdf UM_9502-series-user-guide.pdf

3500509-0004 9502 Hughes 9502 BGAN M2M Two-piece) Terminal C1/D2 Compliant

Hughes 9502 BGAN M2M Terminal, C1/D2 Compliant for Hazardous Locations (3500509-0004)
The world’s most cost-effective, all-IP BGAN machine-to-machine satellite terminal with exceptionally low power consumption. The Hughes 9502 BGAN M2M (machine-to-machine) terminal is the first to receive Hazardous Locations Accreditation. The Hughes 9502, a global-use terminal designed and manufactured by Hughes for operation over Inmarsat?s BGAN service, has successfully completed testing by Met Laboratories, Inc. (MetLabs), an Accredited Laboratory. The Hughes BGAN terminal has been certified for operation in hazardous locations where explosive gaseous atmospheres may potentially be present. The certification covers operation in environments classified as Class 1, Division 2, Groups A-D, and ATEX Zone 2, Group II, Category 3.
The Hughes 9502 IP satellite terminal provides reliable connectivity over the Inmarsat Broadband Global Area Network (BGAN) for IP SCADA and machine-to-machine (M2M) applications. The Hughes terminal delivers affordable, global, end-to-end IP data connectivity enabling applications in industry sectors such as environmental monitoring, SmartGrid, pipeline monitoring, compressor monitoring, well site automation, video surveillance, and out-of-band management to primary site communications.
The exceptional low power consumption (<1 W idle) of the Hughes 9502 makes it possible to provide end-to-end IP connectivity to sites that are off the grid. This breakthrough provides end-to-end IP connectivity to power-challenged locations that rely upon solar battery arrays involving sensitive power budgets.

Hughes 9502 M2M IP Terminal

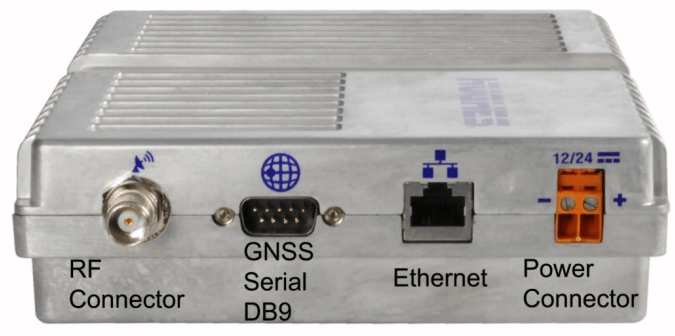

Interfaces
• Ethernet
• USB
• RS232 serial interface (DB9 male, DTE) to external NMEA 0183 based GNSS device (e.g., GLONASS receiver).This port cannot be used for serial data
• SIM Card
• TNC-Female type RF connector(for Cable to ODU)
• DC input, 2-line power connector
• Audio Jack, 3.5mm(for audio tone or voltage level to assist in ODU pointing)

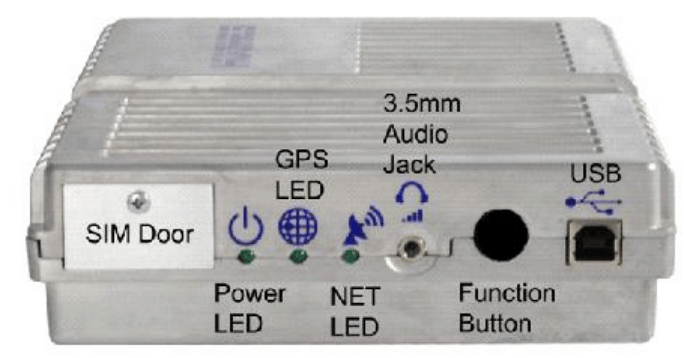

Operation Interface / LED
• Function(User) Button
• LED – Power
• LED – BGAN Satellite Network
• LED – GPS Satellite
Mounting Profiles
The IDU can be mounted using the:
IDU strap (P/N 3500617-0001) if desired Strap will require 4 each mounting bolts either M3.5 or 6/32” (not included).
The Indoor unit (IDU) is housed inside building or NEMA 4x Enclosure / the remote terminal unit (RTU), NOT included.

Optional Accessories – NOT included in this “IDU Terminal ONLY” pack
Part# HN-01-3500638-0001, ODU External Flat Panel Antenna
Part# HN-01-3500638-0001, RF Cable 10m(32.4ft) Antenna cable, terminated with N Connectors
Part# HN-01-3500634-0001, Adapter, TNC to N type (for connecting the RF Cable from ODU Antenna to the IDU Terminal)
Part# HN-01-3500617-0001, IDU Mounting Strap(requires 4 each mounting bolts either M3.5 or 6/32” NOT included)
Part# HN-01-3004066-002 ODU Fixed Mount
Part# HN-01-1022994-0022 ODU Azimuth Elevation Bracket
Extended warranty options

This is the terminal Unit as supplied in the complete 9502 M2M Pack, part# HN-00-3500509-0001

Brand

Hughes
