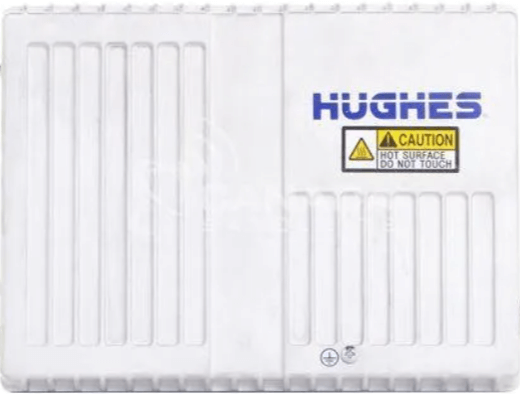

3500563-0006 Hughes 9502 C1/D2 ATEX M2M Two-piece, Transceiver only

HN-01-3500563-0001
9502 M2M IP Terminal UNIT ONLY
 No connection charge with BGAN M2M(normal BGAN charge is 100 Kbytes)
 Minimum CDRs only 1 Kbyte (normal BGAN charge is 10 Kbytes)
 No charge over-the-air modem software upgrades
 Exclusive airtime packages unique to the Hughes 9502
 Integrated IP Watchdog to ensure “always-on” network connectivity.
 No manual intervention required to recover from an outage
 Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
 Remote control via SMS—remote management platform for command and control to the terminal using SMS, including configuration, debugging, and access to Web interface
 Ultra-low power consumption
 Transmit: < 20 W
 Narrow beam w/o transmit: 3 W
 Idle (regional beam): < 1 W
 Off (wake on packet): < 10 mW (@ 12 Vdc)
 Off (wake on packet): < 30 mW (@ 24 Vdc)
 Off (GPIO control): 0 W
 Relay mode passes WAN IP address to the connected RTU
 Security enhancements with extended layers of embedded security options
 Basic installation; no PC required
 Outdoor unit (ODU) can be pole mounted
 Indoor unit (IDU) is housed inside building or the remote terminal unit (RTU)
 Built-in GPS receiver
 Use of Internet Protocol (IP) via the BGAN satellite network
Security
o Ethernet MAC Filtering
o Administration Password
o SMS Control password
o White List for SMS control
o AT Command password lock
o SIM Personalization: Phone-to-SIM, DP SIM Lock, SP SIM Lock
Other Features:
o Single external BGAN Satellite and GPS antenna connection
o GPS module inside Indoor Unit
o 3 status LEDs
o Antenna pointing audio tone and voltage level indicator through audio jack
o SIM/USIM Slot (behind SIM door)
