3500566-0004 Hughes 9202M BGAN Portable Satellite Terminal
$6,353.60 Inc. GST
3500566-0004 Hughes 9202M BGAN Portable Satellite Terminal
Features and Benefits
- Backlit LCD user display including four-button control
- The 9202M has a rugged and durable IP55 rating
- Wi-Fi b/g/n supporting multi-user access
- Two-line RJ11 for voice and fax
- Advanced integrated user interface (IUI)
- Automatic Context Activation (ACA)
- External antenna options
- XL-band supported
The Hughes 9202M operates over the Viasat Go-anywhere Pro satellite service and provides high-performance connectivity and reliability for the most demanding users and extreme conditions.
Using the world’s smallest class 2 Go-anywhere Pro terminal, users can connect at IP broadband speeds up to 464kbps, as well as take advantage of such features as built-in multi-user Wi-Fi access, external tracking antenna, automatic context activation (ACA), including the ability to transmit SMS messages via the integrated user interface (IUI) without a connected laptop, smart phone, or other user device.
The Hughes 9202M enables the user to send and receive IP traffic via Ethernet and Wi-Fi. In parallel with the packet data service, the Hughes 9202M supports circuit switched voice and fax calls via a two-line RJ11 plug.
Corporate disaster planners and remote field personnel can collaborate with confidence and efficiency with various agencies and headquarters staff using video, voice, and data simultaneously. As with all Hughes satellite internet models, the Hughes 9202M is IP-based, delivering selectable, dedicated Quality of Service (QoS) levels.
HN-00-3500566-1 INMARSAT by Hughes 9202 Portable Broadband Satellite BGAN Terminal Simultaneous voice and broadband data – access your data applications and make a phone call at the same time.
Delivers high-speed Internet of 464 Kbps, 94.5% as fast as the larger Hughes 9201
The 9202 is the worlds smallest Wi-Fi BGAN Terminal
Lightweight – The 9202 weighs just 3.3 lbs (1.5 kg). The Hughes 9201 weighs 6.17 lbs (2.8 kg)
Portable size – 9202 dimensions are 8.5″ x 8.5″ x 1.8″ inches (21.6 x 21.6 x 4.6 cm)
Outdoor Use – Superior IP55 Ingress Rating – Built for extreme weather
Operates in +23° F to +131° F degrees (-5° to +55° C), or -25° to +60° C with external power source
Integrated Wireless Hotspot – 100′ wireless connectivity for any in-range device. Stay warm indoors
Directly connect any standard corded or cordless phone with RJ-11 phone jack
Directly connect any approved Group 3 fax machines
SMS Texting supported. 160 characters, with free incoming text messages
Fully ISDN capable (64Kbps) with full UDI (Unrestricted Digital Information)
Night friendly LCD backlit display with 4 button controls
Intuitive browser interface screens for advanced controls
Li-Ion battery will last 36 hours in idle mode
XL-Band capable
- Capabilities: Internet, email, voice, FTP, FoIP (fax), ISDN, SMS text, video streaming
- Internet Speeds: 464Kbps (Rx), 448Kbps (Tx) – Class-2
- Streaming (1:1CIR): 32Kbps, 64Kbps, 128Kbps
- Wifi: 802.11b/g/n – 100-foot radius. Up to 10 concurrent wireless connections.
- Wireless Security: WPA2 and MAC address filtering for up to 10 devices.
- Interfaces: 1 x RJ45 Ethernet, Two Line RJ11 Phone port – (Requires RJ11 splitter for one phone and one fax)
- Dimensions: 8.5″ x 8.5″ x 1.8″ (216 x 216 x 45mm)
- Weight: 3.3lbs (1.5kg)
- Onboard Battery Life: 36 hours on standby, 5.5 hours continuous RX, 3.25 hours continuous transmitting/streaming
- Max Vibration 200-2000 Hz, 0.3 m2/s3; MIL-SPEC 810B METHOD 500.3 procedure 1
- Operating Temperature: +23°F to +131°F (-5°C to +55°C) with battery, or -13°F to +140°F (-25°C to +60°C) without battery
- Humidity: 95% RH at +40°C
- Environmental: IP55-compliant
- Power: 110 to 240VAC – Pulls 27 watts charging battery, 4.5 watts when battery is out
- Power Cables: 2-pin US type, 3-pin European, 2-pin UK
- Other Cables: USB, Ethernet (RJ-45), ISDN (RJ-45)
- Wind: Operational wind loading (with stand secured to ground) 25mph (40kph)
- Ice: 20mm before non-operation
- Standard 18 month Warranty (parts and labor) – Extended warranties available
- Compliance: FCC, EN, IEC, CB, CE – Hughes 9202 Regulatory Compliance Certificate.
Brand
Hughes

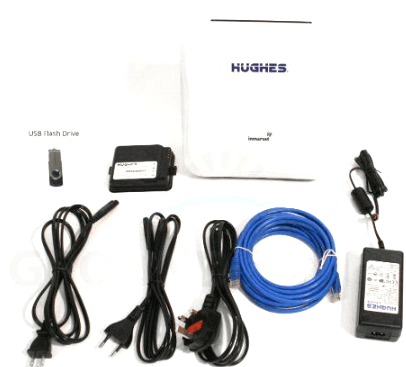

WHATS IN THE BOX? HN-00-3500566-0004
– Hughes 9202 Modem
– Rechargeable Lithium-Ion Battery Pack
– Ethernet Cable
– AC/DC Adapter and 3 Power Cords
• US Power Cord
• EU Power Cord
• UK Power Cord
