3500638-0002 Hughes 9502 BGAN M2M Two-piece, ODU Assy, Antenna and 10m cable

3500638-0002 Hughes 9502 BGAN M2M Two-piece, ODU Assy, Antenna and 10m cable

External Antenna for remote mounting, comes with RF cable that connects the 9502 IDU

This pack includes:
• 1x 9502 External Antenna
• 1x RF Cable,10m(32.8ft)

Features

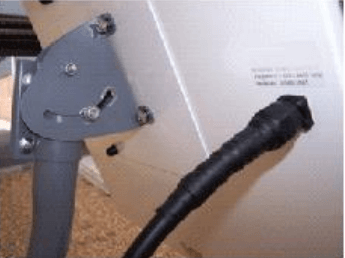

• 9502 Antenna with N type cable termination
• Cable Terminations: N type connector for antenna end and TNC type connector on IDU end
• Cable Loss: 1.8dB loss end to end

Mounting Profiles
The ODU can be mounted using the:
Basic Fixed Mount Kit (P/N 3004066-0002) or by using the
Azimuth elevation bracket (P/N 1022994-0022) and an existing 37mm(1.5in) diameter pole.

SPECIFICATIONS

Electrical
Satellite Transmit Frequency: 1626.5–1660.5 MHz
Satellite Receive Frequency: 1525–1559 MHz
GPS Frequency: 1574.42–1576.42 MHz

Mechanical
Weight: 1.9 Kg (4.18 lbs)
Dimensions: 385 x 385 x 33mm

Environmental
Operating Temperature: -40° C to +75° C
Storage Temperature: -55° C to +75° C
Humidity: 95% RH at +40° C
Wind Loading: Survival wind loading (with optional mount) up to 100 mph
Water and Dust: IP-65 Compliant

Compatibility: 9502 all models
