3500753-0022 Hughes 9502 C1/D2 BGAN M2M Terminal, one-piece, ATEX
3500753-0022 9502 Integrated Antenna (One-piece) Terminal C1/D2 Compliant
The world’s most cost-effective, all-IP BGAN machine-to-machine satellite terminal with exceptionally low power consumption. The Hughes 9502 BGAN M2M (machine-to-machine) terminal is the first to receive Hazardous Locations Accreditation. The Hughes 9502, a global-use terminal designed and manufactured by Hughes for operation over Inmarsat?s BGAN service, has successfully completed testing by Met Laboratories, Inc. (MetLabs), an Accredited Laboratory. The Hughes BGAN terminal has been certified for operation in hazardous locations where explosive gaseous atmospheres may potentially be present. The certification covers operation in environments classified as Class 1, Division 2, Groups A-D, and ATEX Zone 2, Group II, Category 3.
Introduced as an alternative to the external antenna version of the 9502, this product integrates the 9502 modem with a compact antenna to create a single-piece, integrated, rugged terminal to withstand the most extreme weather conditions.
Providing reliable IP connectivity over the Inmarsat Broadband Global Area Network(BGAN), it includes backup and out-of-band management to primary site communications—ideal for SCADA and unattended sites equipped for machine-to-machine (M2M) applications such as environmental monitoring, SmartGrid, pipeline monitoring/control, compressor monitoring/control, well site automation and surveillance.
Its exceptional low power consumption (<1W idle) makes it possible to provide end-to-end IP connectivity to sites “off-the- grid”.
FEATURES
- No minimum connection charge
- Minimum billing increment of 1 Kbyte
- No usage charge for over-the-air modem software upgrades
- Integrated IP Watchdog to ensure “always-on” network connectivity. No manual intervention required to recover from an outage
- Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
- Remote control via SMS provides management platform for command and control to the terminal using SMS, including configuration, debugging, and remote access to Web interface
- Relay mode passes WAN IP address to the RTU
- Security enhancements with extended layers of embedded security options
- Basic installation; no PC required
- Built-in GPS receiver
- The Hughes M2M terminal is BGAN M2M Certified
- Idle: < 1W
- Transmit; < 20W
- Receive: < 3W
- Ethernet connection (RJ45)
- USB Type B for connection to PC for configuration of terminal
- RS-232 (DB9) to external NMEA 0183-based GNSS device (e.g., GLONASS receiver)
Applications
The Hughes terminal delivers affordable, global, end-to-end IP data connectivity enabling applications in industry
sectors such as:
- Environmental Monitoring,
- SmartGrid,
- Pipeline Monitoring,
- Compressor Monitoring,
- Well Site Automation,
- Video Surveillance, and
- Out-of-Band Management to Primary Site Communications.Benefits
This breakthrough enables “always on” IP connectivity to power challenged locations which rely upon solar-battery arrays with limited power budgets.
Installation is simplified as there is no need to remotely package the transceiver inside a standalone NEMA enclosure.
The Hughes M2M terminal qualifies for no charge over-the-air (OTA) upgrades, saving customers time and money.
HN-01-3500753-0021
Hughes 9502 One-piece M2M BGAN IP M2M Terminal Pack
No connection charge with BGAN M2M(normal BGAN charge is 100 Kbytes)
Minimum CDRs only 1 Kbyte (normal BGAN charge is 10 Kbytes)
No charge over-the-air modem software upgrades
Exclusive airtime packages unique to the Hughes 9502
Integrated IP Watchdog to ensure “always-on” network connectivity.
No manual intervention required to recover from an outage
Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
Remote control via SMS—remote management platform for command and control to the terminal using SMS, including configuration, debugging, and access to Web interface
Ultra-low power consumption
Transmit: < 20 W
Narrow beam w/o transmit: 3 W
Idle (regional beam): < 1 W
Off (wake on packet): < 10 mW (@ 12 Vdc)
Off (wake on packet): < 30 mW (@ 24 Vdc)
Off (GPIO control): 0 W
Relay mode passes WAN IP address to the connected RTU
Security enhancements with extended layers of embedded security options
Basic installation; no PC required
Built-in GPS receiver
Use of Internet Protocol (IP) via the BGAN satellite network
Security
o Ethernet MAC Filtering
o Administration Password
o SMS Control password
o White List for SMS control
o AT Command password lock
o SIM Personalization: Phone-to-SIM, DP SIM Lock, SP SIM Lock
Other Features:
o 3 status LEDs
o Antenna pointing audio tone and voltage level indicator through audio jack
o SIM/USIM Slot (behind SIM door)
HN-01-3500753-0021
Hughes 9502 One-piece M2M BGAN IP M2M Terminal Pack
Electrical
Satellite Transmit Frequency: 1626.5–1660.5 MHz
Satellite Receive Frequency: 1525–1559 MHz
GPS Frequency: 1574.42–1576.42 MHz
Input Voltage: +12 Vdc/+24 Vdc nominal
Firmware Upgrades: Over the air or local
Mechanical
Weight 3.8 Kg (8.4 lbs)
Dimensions 275 mm x 275 mm x 84 mm
Environmental
Operating Temperature: -40° C to +75° C
Storage Temperature: -55° C to +75° C
Humidity: 95% RH at +40° C
Wind Loading: Survival wind loading (with optional mount) up to 100 mph
Water and Dust: IP-66 Compliant

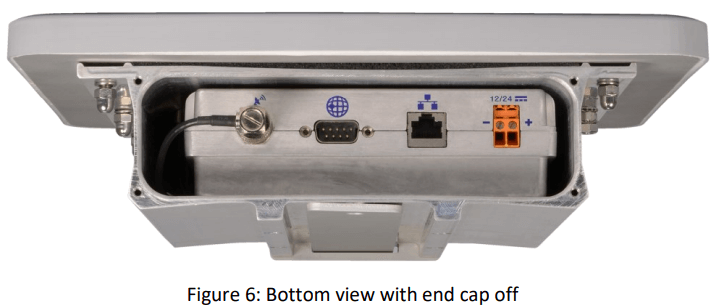

Interfaces
Ethernet connection (RJ45)
USB 1.1 connection (USB Type-B) for PC to configure terminal
(requires installation of Hughes USB driver, see www.bgan.hughes.com )
Integrated GPS receiver and L-band ODU
RS232 serial interface (DB9 male, DTE) to external NMEA 0183 based GNSS device (e.g., GLONASS receiver).
This port cannot be used for serial data

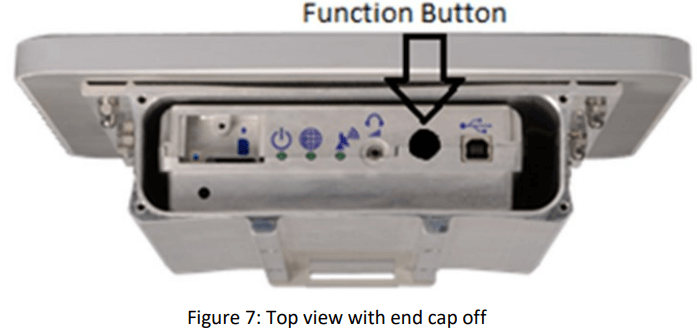

3 LED status display and a single function button
3.5 mm stereo audio jack for audio tone or voltage level to assist in ODU pointing
USIM card slot behind SIM door
Mounting Profiles

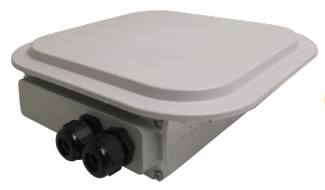

The Hughes 9502 One-piece is a single unit fixed design that comes with:
Fixed assembly Part# HN-01-3500563-0001, an Indoor Unit (IDU), Part# HN-01-3500752-0001, a Flat Antenna and
IP-66 housing with end caps
Hughes 9502 chassis
This 2 part unit is fixed together, but has removable panels to access control and interface features)
Mounting options are available, but NOT included

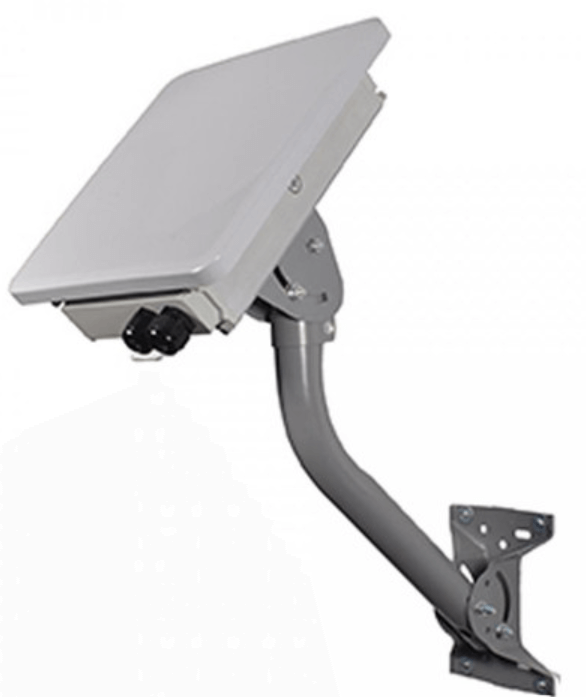

The 9502 M2M One-piece unit can be mounted using the:
Basic Fixed Mount Kit (P/N 3004066-0002) or by using the
Azimuth elevation bracket (P/N 1022994-0022) and an existing 37mm(1.5in) diameter pole.
Brand
Hughes
WHATS IN THE BOX? HN-01-3500753-0021
Included with the Hughes 9502 One-piece M2M BGAN Terminal package is:
1x Fixed assembled together Part# HN-01-3500563-0001, IDU Hughes 9502-M2M Satellite IP M2M Terminal, and Part# HN-01-3500638-0001, ODU Flat Panel Antenna
1x Part# HN-01-3500762-0001, Locking bar for padlock
1x Part# HN-01-3500xxx-0001, Mounting screws and washers
1x IP-66 housing with end caps
Optional Accessories – NOT included in this pack
Part# HN-01-3004066-002 ODU Fixed Mount
Part# HN-01-1022994-0022 ODU Azimuth Elevation Bracket
Extended warranty options
