3500910-0001 Hughes LPB BGAN System, Portable Low Profile Land Covert
3500910-0001 Hughes LPB BGAN is the world’s first lay flat BGAN antenna, with exceptionally low power consumption for off-the-grid and Land Covert installations
3500910-0001 Hughes LPB BGAN System, Portable Low Profile Land Covert
LPB, the world’s first lay flat BGAN antenna, with exceptionally low power consumption for off-the-grid installations
The Hughes Low Profile BGAN (LPB) modem and antenna provide the user with reliable, remotely controllable satellite connectivity over the Inmarsat BGAN network.
The LPB modem delivers exceptional low power consumption (1W idle) for off-the-grid installations.
Both modem and antenna are IP-67 rated for outdoor use and can also be installed below ground-surface for inconspicuous operation.
A thin layer of dry, non-metallic material over the antenna is permissible during TX/RX operation.
Low Profile BGAN (LPB) Terminal
- The Hughes Low Profile BGAN (LPB) modem and antenna provide the user with reliable, remotely controllable satellite connectivity over the Inmarsat BGAN network.
- The LPB modem delivers exceptional low power consumption (< 1 W idle) for off-the-grid installations. Both modem and antenna are IP-67 rated for outdoor use and can also be installed below ground-surface for inconspicuous operation.
- A thin layer of dry, non-metallic material over the antenna is permissible during TX/RX operation.
Main Features
- Auto-on/autocontext activation automatically restores power and Packet Data Protocol (PDP) connection to the unit following loss of power and/or IP connection
- Remote control via SMS—allows command and control of the terminal using SMS, including configuration, debugging, and access to its Web interface
- Ultra-low power consumption
- Basic installation; no PC required
- Built-in GPS receiver
- Over the air firmware upgrades

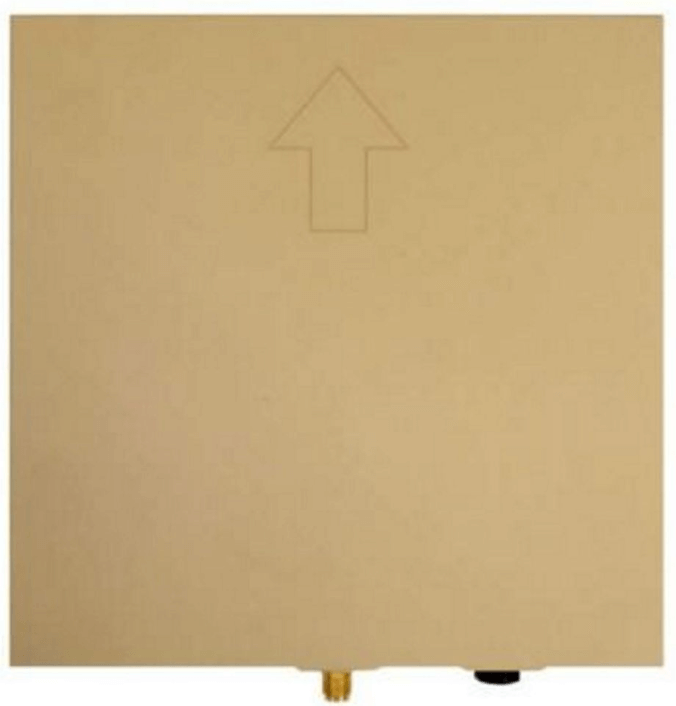

- Minimal pointing of antenna is required; lay antenna flat and point arrow toward the satellite (antenna operates between 30°–60° elevation angle but can be tilted from horizontal, if necessary, at greater elevations.)
Interfaces

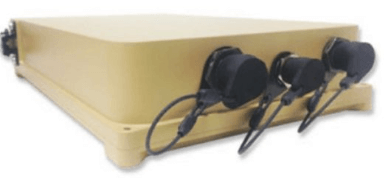

- IP Ethernet connection via IP-67 rated 6-pin Amphenol
connector - Power-on switch signal via IP-67 rated 3-pin power input
connector - IP-67 TNC RF connection on modem to lay flat antenna

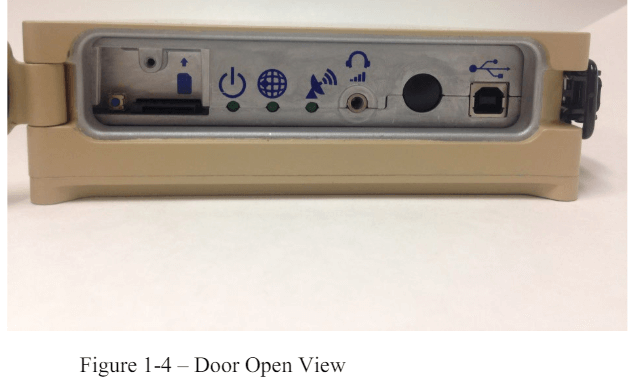

USB for local configuration and setup

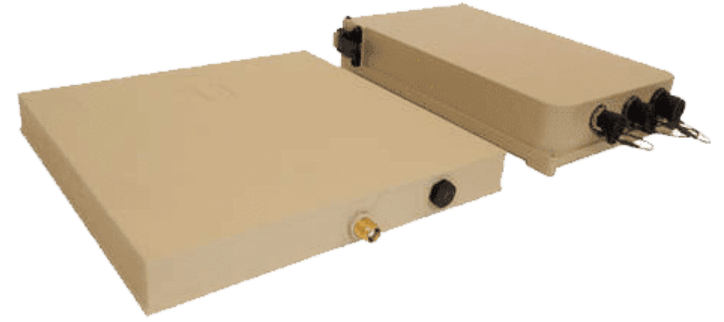

Package Contents
- Modem – Low profile BGAN (LPB) modem
- Antenna – Low profile, lay flat, passive antenna
- Cable – 3 m RF antenna cable (TNC)
HN-00-3500566-1 INMARSAT by Hughes 9202 Portable Broadband Satellite BGAN Terminal Simultaneous voice and broadband data – access your data applications and make a phone call at the same time.
Delivers high-speed Internet of 464 Kbps, 94.5% as fast as the larger Hughes 9201
The 9202 is the worlds smallest Wi-Fi BGAN Terminal
Lightweight – The 9202 weighs just 3.3 lbs (1.5 kg). The Hughes 9201 weighs 6.17 lbs (2.8 kg)
Portable size – 9202 dimensions are 8.5″ x 8.5″ x 1.8″ inches (21.6 x 21.6 x 4.6 cm)
Outdoor Use – Superior IP55 Ingress Rating – Built for extreme weather
Operates in +23° F to +131° F degrees (-5° to +55° C), or -25° to +60° C with external power source
Integrated Wireless Hotspot – 100′ wireless connectivity for any in-range device. Stay warm indoors
Directly connect any standard corded or cordless phone with RJ-11 phone jack
Directly connect any approved Group 3 fax machines
SMS Texting supported. 160 characters, with free incoming text messages
Fully ISDN capable (64Kbps) with full UDI (Unrestricted Digital Information)
Night friendly LCD backlit display with 4 button controls
Intuitive browser interface screens for advanced controls
Li-Ion battery will last 36 hours in idle mode
XL-Band capable
- Capabilities: Internet, email, voice, FTP, FoIP (fax), ISDN, SMS text, video streaming
- Internet Speeds: 464Kbps (Rx), 448Kbps (Tx) – Class-2
- Streaming (1:1CIR): 32Kbps, 64Kbps, 128Kbps
- Wifi: 802.11b/g/n – 100-foot radius. Up to 10 concurrent wireless connections.
- Wireless Security: WPA2 and MAC address filtering for up to 10 devices.
- Interfaces: 1 x RJ45 Ethernet, Two Line RJ11 Phone port – (Requires RJ11 splitter for one phone and one fax)
- Dimensions: 8.5″ x 8.5″ x 1.8″ (216 x 216 x 45mm)
- Weight: 3.3lbs (1.5kg)
- Onboard Battery Life: 36 hours on standby, 5.5 hours continuous RX, 3.25 hours continuous transmitting/streaming
- Max Vibration 200-2000 Hz, 0.3 m2/s3; MIL-SPEC 810B METHOD 500.3 procedure 1
- Operating Temperature: +23°F to +131°F (-5°C to +55°C) with battery, or -13°F to +140°F (-25°C to +60°C) without battery
- Humidity: 95% RH at +40°C
- Environmental: IP55-compliant
- Power: 110 to 240VAC – Pulls 27 watts charging battery, 4.5 watts when battery is out
- Power Cables: 2-pin US type, 3-pin European, 2-pin UK
- Other Cables: USB, Ethernet (RJ-45), ISDN (RJ-45)
- Wind: Operational wind loading (with stand secured to ground) 25mph (40kph)
- Ice: 20mm before non-operation
- Standard 18 month Warranty (parts and labor) – Extended warranties available
- Compliance: FCC, EN, IEC, CB, CE – Hughes 9202 Regulatory Compliance Certificate.
Brand
Hughes
WHATS IN THE BOX? HN-00-3500566-0004
– Hughes 9202 Modem
– Rechargeable Lithium-Ion Battery Pack
– Ethernet Cable
– AC/DC Adapter and 3 Power Cords
• US Power Cord
• EU Power Cord
• UK Power Cord
