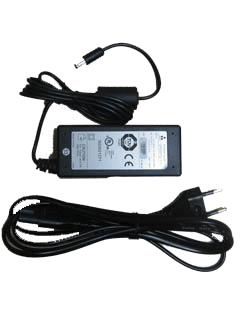

TT-01-3682L Thrane Explorer 300 500 AC DC Charger Adapter
TT-01-3682L Thrane Explorer 300 500 AC DC Charger Adapter
Click to enlarge
TT-01-3682L Thrane Explorer 300 500 AC DC Charger Adapter
TT-01-3682L Thrane Explorer 300 500 AC DC Charger Adapter

403682L Explorer 300, 500 AC-DC Charger, also for Thrane IP Wireless Cradle

SKU: 3682L

Compatible with:

  • Explorer 300 and 500 BGAN terminals
  • Thrane IP Wireless Cradle for Sailor and Explorer BGAN Terminals

$180.43 Inc. GST

98-126059-J-Sailor_IP_Handset_manual_v.-2018.pdf Explorer-500-user-manual-tt-98-122274-r.pdf

403682L (TT-01-3682L) Explorer 300 500 AC-DC Charger, also for Thrane IP Wireless Cradle

Compatible with:

  • Explorer 300 and 500 BGAN terminals
  • Thrane IP Wireless Cradle for Sailor and Explorer BGAN Terminals

SPECIFICATIONS
• AC Input voltage: 100 to 240 VAC, 47 to 63 Hz
• DC Output Voltage: 15 VDC +/- 10%, 50W
• Connector type Proprietary DC Jack, 2.5 mm, EIAJ RC-5320-IV, positive center
• Protections: Overheat / Overload

Power consumption
Standby mode: 0.8 W (Typical)
Transmit mode: 14 W (Typical)
During charging: 38 W max.
DC Input range: +10 to +16VDC
Performance depends on a wide range of factors and actual usage.

SOLAR PANEL USE: requires a minimum capacity of 65 W, 10-32 VDC.

Brand

Explorer
