40101540-MARINE-DOCK-BNDL IsatPhone 2 and Starpak Maritime Docking Station Kit Bundle, 10m cable, Active Antenna

40101540-MARINE-DOCK-BNDL IsatPhone 2 and Starpak Docking Station Kit Bundle, 10m cable, Active Antenna

This economical but reliable Bundle Pack includes:

• IsatPhone 2 Satellite Telephone factory pack,
• Docking Station Kit, with Active Antenna and 10m cable.

Included Inmarsat Part# 40101540 complete factory pack with:

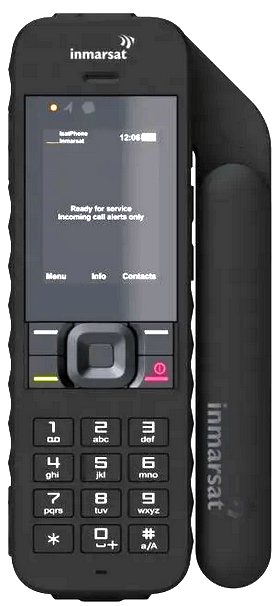

• Isatphone 2 Satellite Telephone Handset(latest model version 2.1),
• part# 40101065 Battery, Hi-Capacity 3180mAh, Li-on
• part# 40101775 AC-DC Mains Charger, with 4x wall outlet plug adapters, for US, UK, EU and AU/NZ Regions
• part# 40100520 DC-DC Car Auto Charger,
• part# 40100521 USB Cable(Micro-USB),
• part# 54045004 Wired Handsfree Privacy Headset,
• part# 40101066 Holster, Heavy Duty Belt Clip
• Lanyard/wrist strap,
• USB memory with User Guides,
• QSG(quick start guide), warranty card,

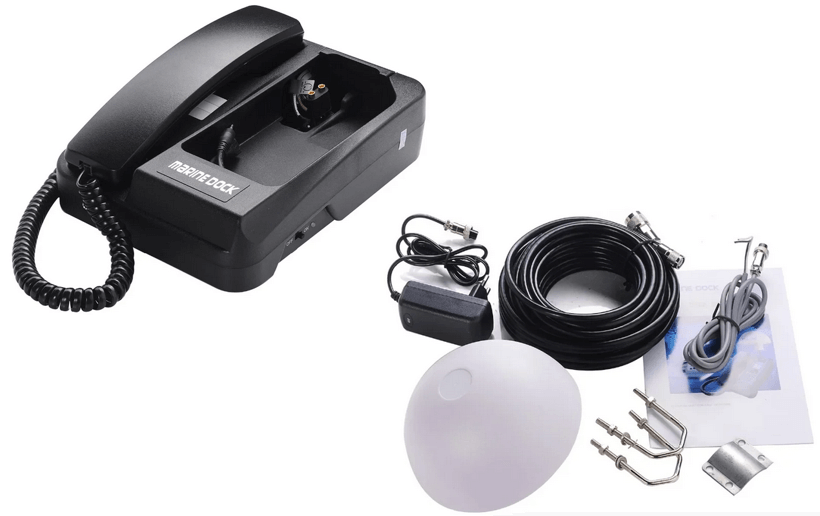

Included Pacific Rim Part# 40101540-MARINE-DOCK :

• part# DOCK221240 Isat2 Docking Station Main Unit,
• part# ISA190221240 Antenna, Inmarsat / GPS
• Privacy Handset,with 1.2m curly cord,
• part# 189932841 AC/DC Power Adapter
• Cable, Inmarsat/GPS Active, 10.0m(32.8ft)
• 1pce Installation hardware kit
• QSG(Quick Start Guide) / User Instruction Manual,

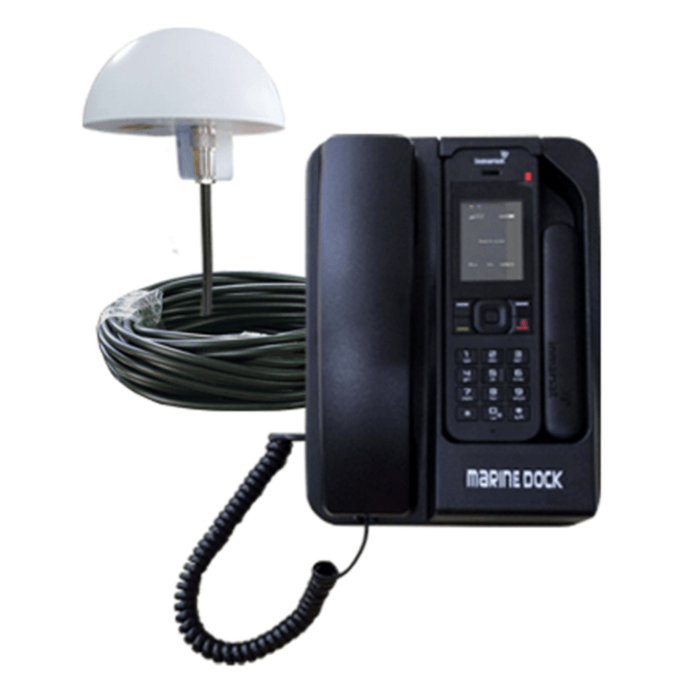

The STARPAK IsatDock 2 MARINE DOCKING STATION: Supports GPS functionality via the dedicated in-built SatPhone GPS. Always on – antenna and power can be permanently connected to the Dock and ready for use.

The handset is enclosed in the docking unit whilst still giving full access and functionality to the user. High quality Antenna marine enclosure, all in one design.

FEATURES

• LOUD SPEAKER: supports voice services via the SatPhone handsfree speakerphone.
• INMARSAT VOICE AND DATA: services are always on via the Dual Mode Antenna
• DATA: access is via the external USB Port located on the side of the unit.
• PRIVACY: with the active Privacy Handset is loud and clear even for noisy backgrounds or just for privacy or business calling.
• CABLE: includes unique Dual mode Cable supports both Inmarsat and GPS with a generous length of 10m(32.8ft).
• ACTIVE ANTENNA: Includes Dual Mode INMARSAT and GPS Antenna in one that ensures maximum signal gain.
• ANTENNA RADOME: protects the vital Antenna from harsh environments such as extreme heat, and cold, vibration, and corrosion.
• MOUNTING OPTIONS: Wall or Desk mounting options, with accessible control buttons .
• POWER PORT: Convenient DC Power Jack connects to any available 12 – 30VDC source, or use the included AC/DC Converter/Adapter with 1m cord, w/ Power Plug connecter.

APPLICATION – for any Maritime or other application such as:

• VEHICLES: Cars, 4×4, RV, Buses, Trucks, Heavy Vehicles.
• BUILDINGS: Remote Office, Work Camps, Holiday Cabins
• EXPLORATION – Oil, Gas Drilling, Offshore Platforms and Rigs.
• MERCHANT VESSELS – Cargo, Cruise Ship, Ferry Transports
• FISHING/SAR/LEISURE  VESSELS – Fishing, Leisure, Yachts, Search and Rescue

MANUFACTURERS NOTE: 12mths Manufacturers Warranty(does not include misuse, voltage overload, liquid ingress, impact damage.) Design, Description and Contents subject to change without notice

SPECIFICATIONS

• part#221240 Isat2 Docking Station Main Unit, TNC-F conn, L220xW165xH55mm(Wt. 434g)
• Privacy Handset,with 1.2m curly cord, L210 x W50 x H35mm(Wt. 88g)
• part# 189932841 AC(110-240V)/DC(9-30V) Power Adapter, Output 12V, 2A(Wt. 96g)
• part# ISA-190 Antenna, Inmarsat / L1 GPS, 80H x Dia160mm, N-Female conn(Wt. 460g)
• Active Cable 10.0m(32.8ft),TNC-Male/N-Male connectors(Wt. 546g)
• 1pce Installation hardware kit for 1.0mm(1.0in) Pole/pipe for Mast, Bull Bar etc(Wt. 88g)
• DC Input: 9-32VDC
• AC Input: 100-240VAC
• Working Range: 0.025A to 0.400A
• Charging Consumption: 300mAh, 3.6W
• Operating Consumption: 400mAh, 4.8W
• Stand-By Consumption: 25mAh, 0.3W
• Peak Current: 2Ah, 24W
• Excess Voltage Protection
• Energy saving mode
• Short Circuit Protection
• Battery Temperature: 0degC to +45degC
• Operating Temperature: -30degC to +80degC, Humidity: 95% at +40degC
• Storage Temperature: -35degC to +85degC, Humidity: 95% at +40degC

SHIPPING

• Unit Packing: L25.0 x W25.0 x 20.0cm
• Gross Shipping Weight: 2.2kg
