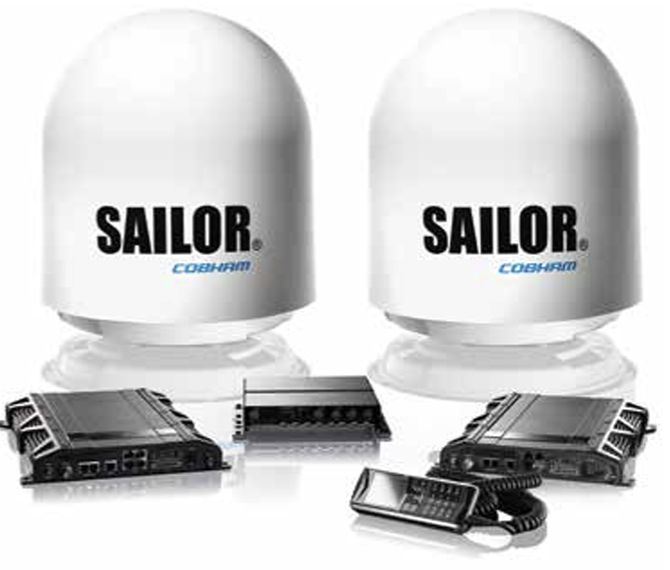

403052C-00500 SAILOR 500 FleetBroadband System, FBB500 Dual Antenna Solution

403052C-00500 SAILOR 500 FleetBroadband System, FBB500 Dual Antenna Solution

This Pack Includes: PREMIUM Tailor-Made Dual Antenna System specifically configured for your requirements.

The importance of being online

Being online wherever you are at sea, running important applications, downloading essential information etc. are all key factors that ensure maximum performance of your daily business. With the new SAILOR 500 FleetBroadband Dual Antenna solution you can be confident in your ability to connect.

Always connected

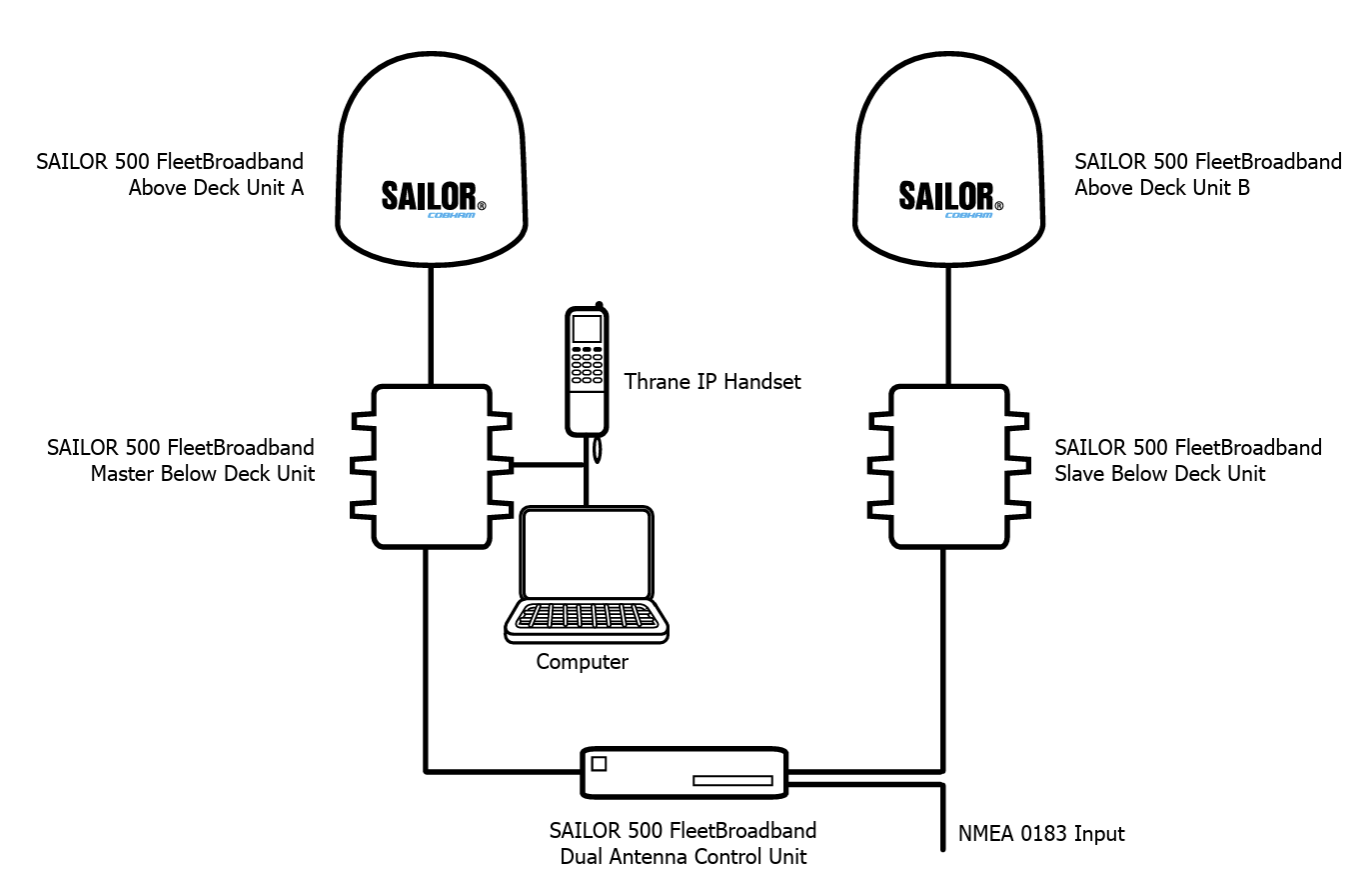

When your SAILOR 500 FleetBroadband antenna cannot obtain full line-of-sight to the satellites because of blocking objects on board your vessel, the new SAILOR FleetBroadband Dual Antenna solution keeps you connected. It maintains full line-of-sight to the satellites with a combination of two SAILOR 500 FleetBroadband solutions installed at different locations and a SAILOR FleetBroadband Dual Antenna Control Unit (DACU).

No interruptions

By default, the intelligent DACU ensures the antenna with the best signal is always used in order to obtain the best possible coverage and connectivity. This all happens without interruption to on-going communication and with the same high voice and data quality you are used to with a standard SAILOR FleetBroadband installation.

Maximum flexibility

The two antennas in the solution are placed to cover each other’s blocking zones. Blocking zones are areas where the signal is blocked between the antenna and the satellite because of the ship’s superstructure. Blocking zones are easily configured on the terminals, using a built-in web interface. The ship’s visibility to a satellite is determined by the combination of blocking zones for the two antennas.

Single solution

Although two SAILOR 500 FleetBroadband antennas are combined into a single system, you only have one IP address, guaranteeing fluid and uninterrupted communication when switching between antennas and ensuring quick and easy configuration. The solution uses one SIM card, which ensures that you always have a total overview of your costs.

Professional & Proven performance

SAILOR 500 FleetBroadband uses a fully stabilized 3-axis antenna with rate sensors for improved performance and fast, intelligent satellite tracking. It’s built to the world-renowned SAILOR standards, so you benefit from reliable performance at all time, regardless of location and condition.

ThraneLink

The SAILOR Dual Antenna solution is supported by the ThraneLINK Management Application (TMA), which runs on the sophisticated ThraneLINK network protocol. TMA is a software solution that provides easy monitoring, remote operation and software update of connected ThraneLINK enabled SAILOR products like the DACU.

REFERENCE GENERIC SAILOR FBB500 INFORMATION BELOW******************************************************

403740A-00500 Sailor 500 FleetBroadband System, FBB500, IP Handset, Cable 25m

Description: PREMIUM KIT – Sailor 500 Inmarsat FleetBroadband Marine Satellite Internet Terminal, with IP Handset Kit and 25m cable

SAILOR 500 FleetBroadband from Thrane & Thrane meets the critical needs for voice and data communication of maritime and offshore, offering global coverage based on the Inmarsat services.

It provides extensive functionality including full access to band-width-hungry IP applications, broadband internet/intranet, e-mail, secure VPN and nine simultaneous voice lines.

The SAILOR 500 FleetBroadband is designed for vessels and plat-forms with demanding requirements for connectivity. It meets the critical needs for voice and data communication of maritime and offshore professionals globally but despite its power, is a compact, lightweight solution.

In This Pack:

• 403052C-00501SAILOR 500 FleetBroadband Above Deck Unit
• 403738A-00571SAILOR 250/500 FleetBroadband Below Deck Unit w/o IP Handset
• 683738A-00570 Accessories Kit for SAILOR 500/250 FleetBroadband
• 98-125645 User Manual SAILOR 500/250(Incl. 19in Rack Mount ver.)
• 98-125646 Installation Manual SAILOR 500/250 (Incl. 19in Rack Mount ver.)
• 98-125647 Quick Guide/English SAILOR 500/250 FleetBroadband
• and in addition, the following:
• 403670A-00500 Sailor IP Handset and Cradle Kit, Wired
• 404330A-925 Sailor Antenna Cable, 25m

KEY FEAUTURES

Thrane IP Handset: This advanced plug-and-play handset provides an intuitive user interface through a 2.2” TFT colour screen and features cutting-edge technology.

Tracking: Sailor 500 enables tracking and telemetry functionality, so colleagues on shore have all the information they need; real-time engine data for maintenance, drilling data for improving production or position data for fleet tracking and management.

Connectivity: Sailor 500 FleetBroadband also provide communication and internet access for crew, which is vital for ensuring an efficient workforce.

Simple and Secure installation: SAILOR 500 FleetBroadband is easy to install and getting connected can be fast and cost-effective process. The system is delivered with everything you need to get started in the box and because it is based on standard IP services and features a clear user interface, connecting your computer, corporate network, external sensors or phone system is simple and secure.

Multiple voice lines: Sailor 500 come with up to nine simultaneous voice lines possible using Inmarsat Multi-voice.

PRODUCT FEATURES

• IP connection for e-mail and internet/intranet access, including secure VPN
• Get access to remote networks securely
• Send and receive large files
• Access to voice and data simultaneously
• Small size hardware
• High-speed data up to 432kbps
• IP streaming of speeds up to 256kpbs
• ISDN 64k and 3.1kHz Audio service
• Durable antenna
• Up to 16 IP Handsets

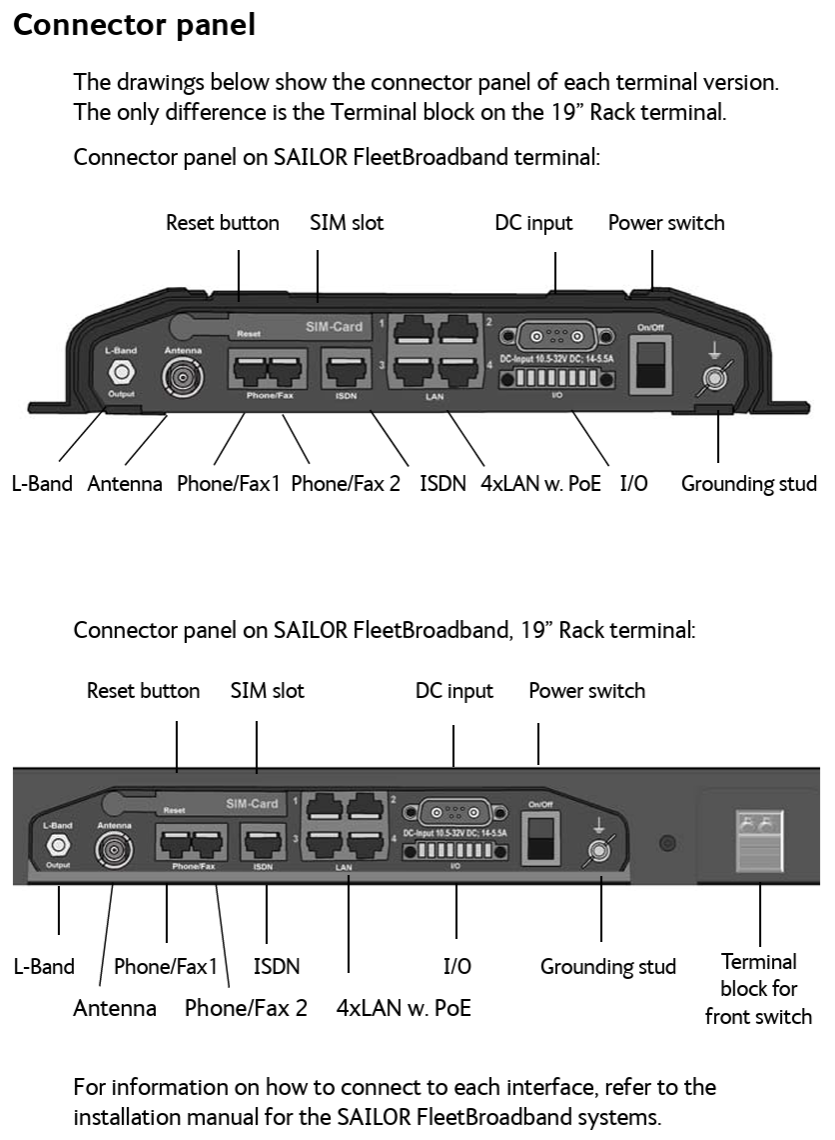

• Multiple interfaces including Ethernet(PoE), RJ11, USB, L-Band and I/O
