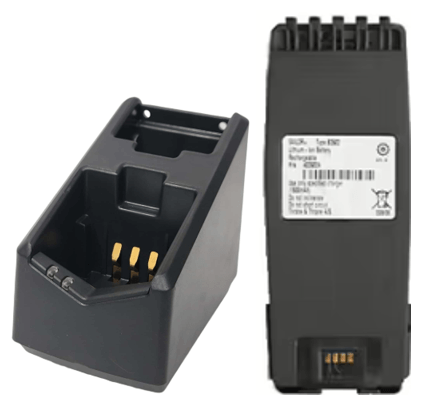

403506A Sailor CH3507 Desk-Top Charger ATEX Bundle includes B3502 Battery
$667.70 Inc. GST
403506A Sailor CH3507 Desk-Top Charger ATEX Bundle includes B3502 Battery
In This Pack you will find marked as pack# 403506A:
- part# 403502A Battery, model# B3502 Secondary BLACK, Li/on Rechargeable for General every-day use

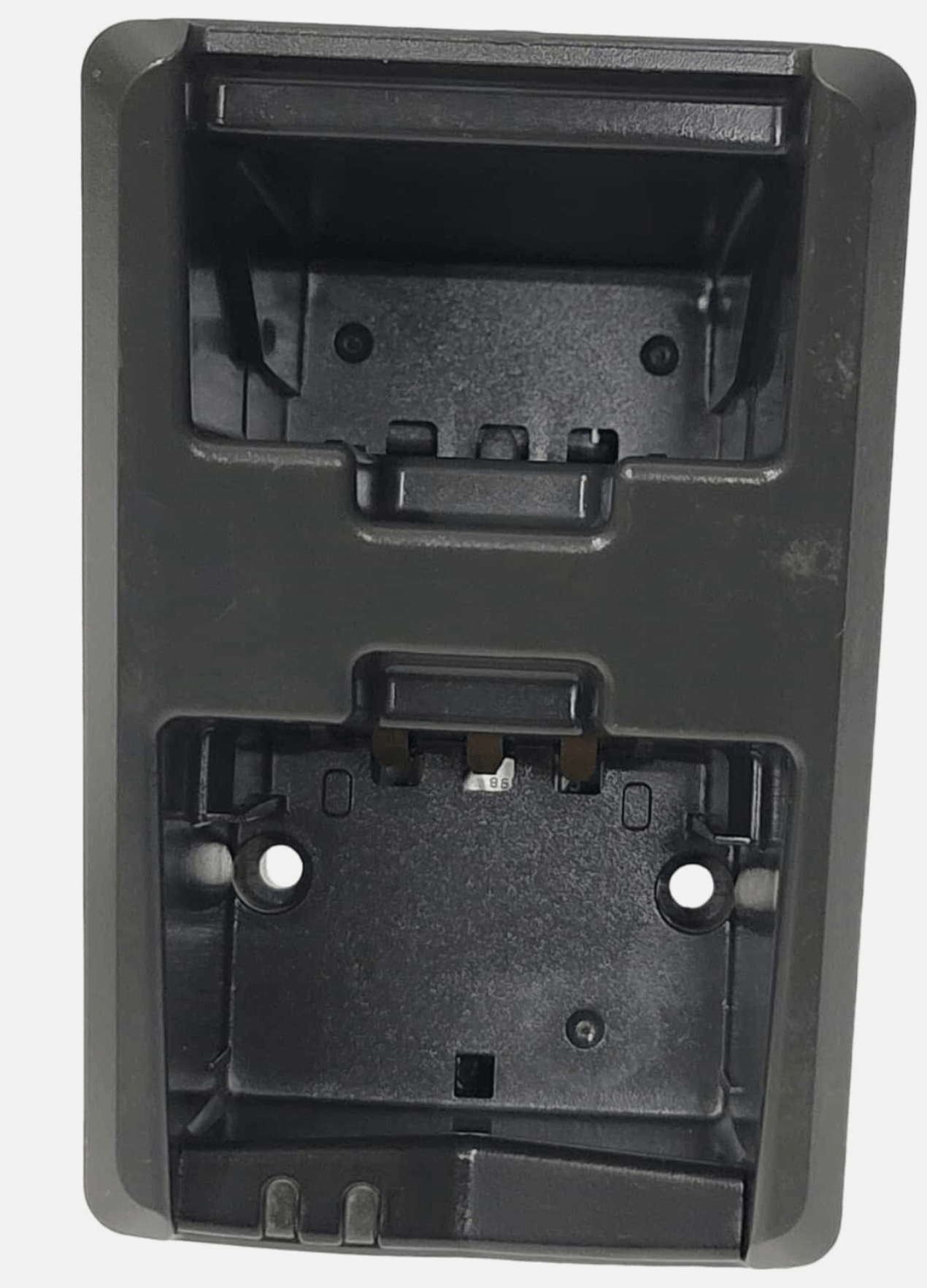

- part# 403507B Desk-Top Charger, model# CH3507 (Dual Pocket, Single Front Pocket Charging only)
- part# 88-125538 AC/DC converter, length 150cm (100-240V~ /12VDC out)
- part# 37-124381 12-24VDC Connection cable, length 150cm
Description: B3502 Battery(non-ATEX):
- Part# 403502A
- Model: B3502
- Lithium-ion
- Capacity: 1800mAh, 15.2Wh
- Type: Rechargeable
- Application: Secondary Battery for General Every-Day Use
- Color: Black
Description: CH3507 Charger(ATEX):
- Charger Unit – Front position ONLY for: (a) charging the Handset/Battery attached, or just for (b) Charging the Stand-alone Battery all on its own, or (c) Stowing a Spare Battery.
- 100-240VAC operation voltage
- Charging time with low battery:
(a) Radio turned off approx 4 hours, (b) Radio turned on : approx 5 hours - comes with AC/DC converter/adaptor 88-125538
Charger Compatibility: all Sailor SPxxxx VHF/UHF series radios
BATTERY CHARGER OPERATION/MAINTENANCE – all B350x for SP3500/3900 series
If the radio is not used for several weeks it is recommended to store the radio and battery separated to reduce self discharge of the battery.
Connecting to power
The charger can be supplied from DC or from AC using an AC/DC converter.
DC: Connect the 12-24VDC Connection Cable between the DC supply and

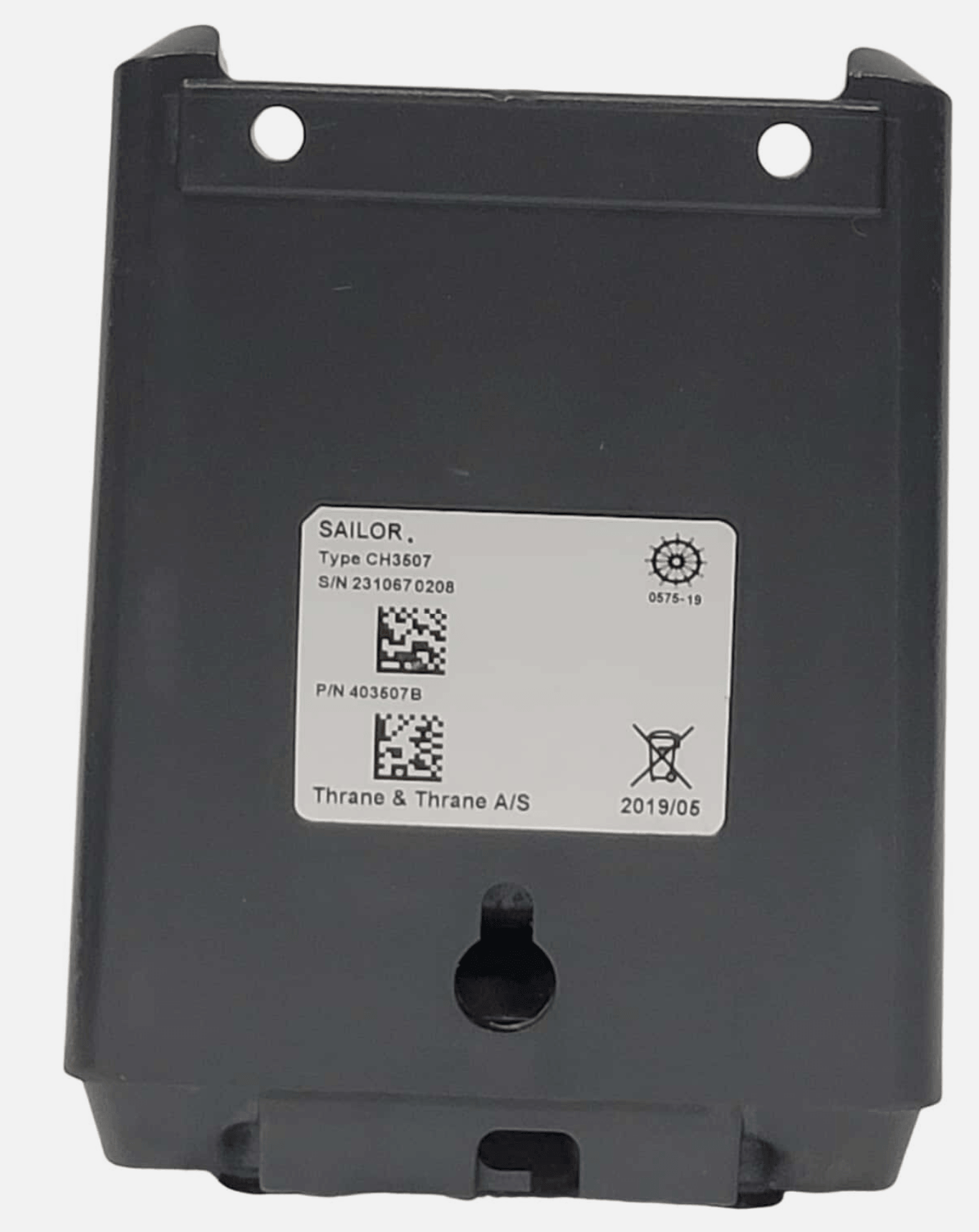

the connector on the underside of the charger.
AC: Connect the AC/DC converter to the connector on the underside of the
charger. Then connect the AC/DC converter to the AC outlet.
Recharging the battery
To recharge the battery, place the radio with battery or the battery alone
in the front position of the charger cradle.
If the radio cannot turn on due to complete discharged battery, then turn
of the radio and place it in the charger or charge the battery alone.
The light indicators on the charger cradle show the status as follows:
• Green light: Power is connected to the charger.
• Slow red flash: Charging in progress.
• Quick red flash (twice per second): Charging error, e.g. battery defect or temperature out of range.
• Steady red light: Charging completed. Trickle charge mode.
