403648A-00500 Explorer 3648 PRISM PTT Mobile Gateway, 6205 Handset
$5,109.50 Inc. GST
403648A-00500 Explorer 3648 PTT Mobile Gateway Bundle
EXPLORER Mobile Gateway is an IP-based radio and data communications device that delivers extended coverage, improved call quality and lower costs for mobile workforce communications.
Beyond Line-Of-Sight Communication
EXPLORER Mobile Gateway is an IP-based radio and data communications device that supports satellite/3G/LTE/LAN backhaul and Land Mobile Radio (LMR) integration to provide seamless switching between available networks in any situation. It is a cost effective system designed to expand and augment traditional LMR systems widely used in the Public Safety, Utility, Mining, and Oil & Gas sectors.

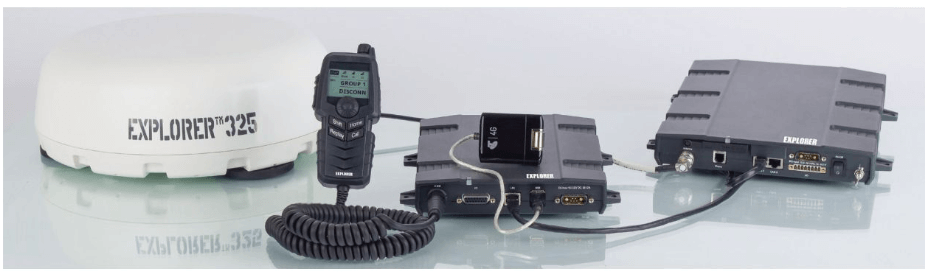

Included in system :
- 403647A-00500 EXPLORER PRISM Mobile Gateway (3647 PTT Unit)
- 406205B EXPLORER 6205 CSM(Control Speaker Microphone) Handset
- 37-138863-A: PTT – BDU Power Cable (PTT 2)
- Quick Start Guide
Related Products – NOT included in this pack
- 650000-001 Cobham PRISM Managed Service
- 403723A-00500 EXPLORER 323 Terminal
- 403706A-050 EXPLORER Connection Box
Features
- A ruggedized and easy to use digital Push-To-Talk communication solution.
- Designed to cost effectively expand and augment Land Mobile Radio systems.
- Built-in support for LMR devices to ensure over-the-horizon radio communication.
- Voice-over-IP technologies optimized for use under difficult satellite or terrestrial link conditions.
- Automatic voice and data routing between cellular (2G/3G/LTE) and satellite networks.
- Beyond Line-Of-Sight communication – global coverage.
The network agnostic multi-bearer solution extends legacy Push–To-Talk capabilities to hybrid data networks such as terrestrial cellular networks (where available), supplemented by satellite where no terrestrial network coverage is present. With no user intervention required, the system automatically routes voice and data traffic via the most reliable network available.
User Interface

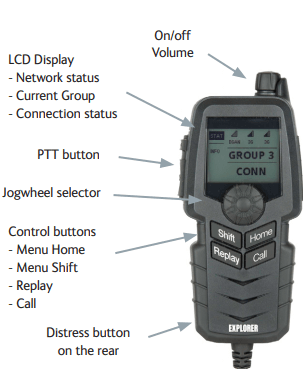

Handset (CSM): Power On/Off, PTT button, 4 control buttons, 40x30mm Display, Jogwheel selector, Dimmer (display backlight), and Distress button
Enhanced Capabilities
EXPLORER Mobile Gateway solves many challenges faced by traditional LMR system operators:
- Coverage area can be extended by using satellite and existing cellular based networks
- Lowers expensive terrestrial infrastructure costs
- High availability to support critical communications
- Scalable from two to thousands of units
- Seamless switching between available satellite, cellular, and LAN connectivity ensures constant communications
- Compatibility with many different brands of land mobile radios
- Voice compression technologies are used to allow for the most efficient use of bandwidth across multiple transport mediums
- 256 bit AES-CTR encryption
The look and feel of the included Control Speaker Microphone is exactly like a simple legacy Push-To-Talk handset. Vehicle installation of the system requires an on-the-move satellite terminal and the EXPLORER Mobile Gateway. Up to two cellular modems can be connected to the EXPLORER Mobile Gateway, allowing for independent network connections. The all important automatic routing functionality enables seamless switching between the available networks.
Cobham PRISM Service
The EXPLORER Mobile Gateway is managed and configured in the Cobham-managed PRISM Portal. The web-based portal ensures simple and easy configuration of any EXPLORER Mobile Gateway, no matter its location and with over-the-air updates to vehicles.
Description
The new Prism Mobile Gateway from Cobham provides a rock solid industrial style smart router that can connect to satellite and cellular connections at the same time. The Prism Explorer then creates multiple IP connections back to the Cobham hosted Prism Service ($25/Month/Unit) allowing full Push to Talk PTT services along with remote configuration options and many more features. Download the brochure, case studies or watch new videos of us using it over different satellite and cellular networks.
Included in system :
- EXPLORER PRISM Mobile Gateway (3647 PTT Unit)
- EXPLORER 6205 Control Speaker Microphone
- 37-138863-A: PTT – BDU Power Cable (PTT 2)
- Quick Start Guide
Features
- A ruggedized and easy to use digital Push-To-Talk communication solution.
- Designed to cost effectively expand and augment Land Mobile Radio systems.
- Built-in support for LMR devices to ensure over-the-horizon radio communication.
- Voice-over-IP technologies optimized for use under difficult satellite or terrestrial link conditions.
- Automatic voice and data routing between cellular (2G/3G/LTE) and satellite networks.
- Beyond Line-Of-Sight communication – global coverage.
