403670A-00501 Cobham Thrane IP Handset and Cradle Kit, Wired, for Explorer Land BGAN systems

403670A-00501 Cobham Thrane IP Handset and Cradle Kit, Wired, for Explorer Land BGAN systems

This part# 403670A-00501 is compatible with Explorer BGAN Land based systems only.

NOTE: This is NOT compatible with Maritime Systems – Use part# 403607A-00500 for Sailor FleetBroadband 500, 250, 150, Fleet One, and Sailor 4300 L-band series.

From the BGAN terminal, the call is transmitted as a normal circuit-switched call.

The wired handset is powered directly from the LAN interface using Power over Ethernet (PoE), so an external power supply is not needed.

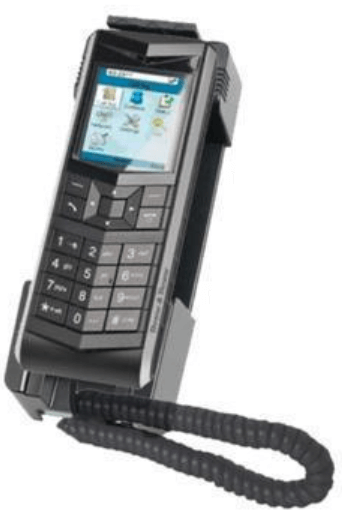

The 403670A-00501 Cobham Thrane IP Handset & Cradle, wired, includes the following main units:

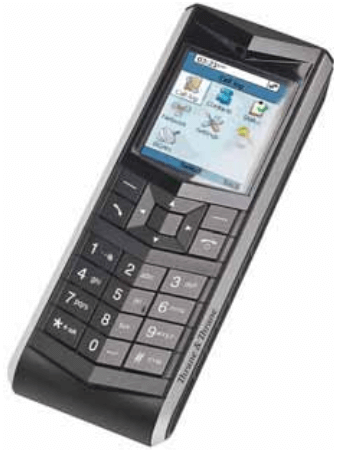

• 4033672A Thrane IP Handset, wired
• 403674A Thrane IP cradle, wired

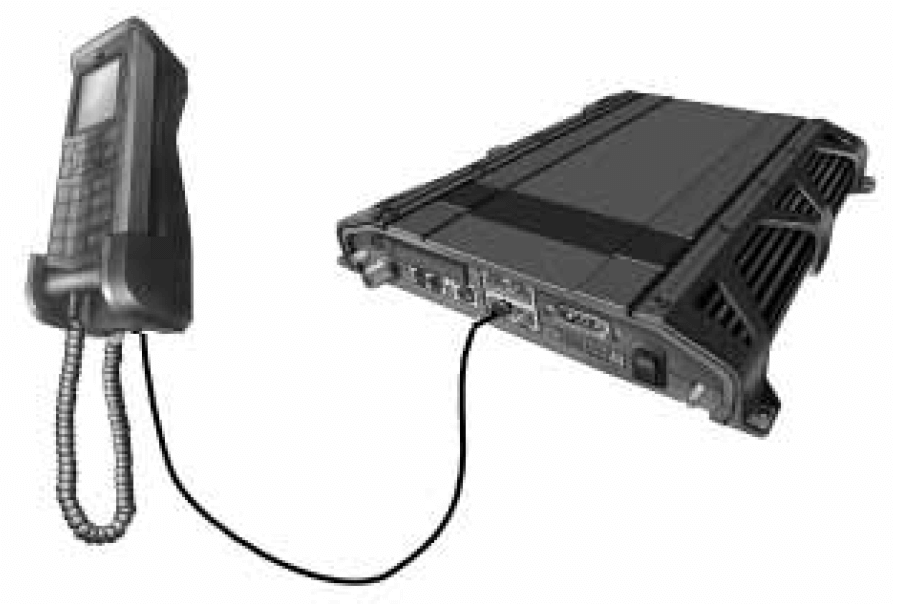

The IP Handset connects to the cradle with a coil cord. The cradle connects with a fixed LAN cable to a LAN port with PoE, for example in a BGAN terminal (Broadband Global Area Network) for satellite communication.

Features
The IP Handset offers the following features:
 Plain voice communication over Internet or IP based network
 Secure voice communication over Internet or IP based network
 Start and stop IP data connections in a connected BGAN terminal
 Contacts list with up to 100 entries
 Intuitive user interface and menu system
 Built-in web interface
 High quality color display QVGA with night colors
 Rugged but elegant design
 Splash proof and dust proof
 Connectivity to Broadband Global Area Network (BGAN) terminal
 BGAN menu to display BGAN terminal type, GPS position and more
 Display of critical alarms of the BGAN terminal

NOTE: Use part# 403607A-00500 for Sailor FleetBroadband 500, 250, 150, Fleet One, and Sailor 4300 L-band series.
