403723A-00586 Explorer 323 PRISM PTT System, Mobile Gateway 3 Bundle

403723A-00566 EXPLORER 323 PRISM PTT Mobile 3 Gateway Bundle

Turnkey one-piece system consists of a combined transceiver and switched beam antenna with integrated Wi-Fi.

This is an advanced IP-based radio and data gateway that integrates Land Mobile Radio (LMR) devices with satellite / LAN backhaul to provide seamless switching between available networks in any situation.

This Pack Includes:

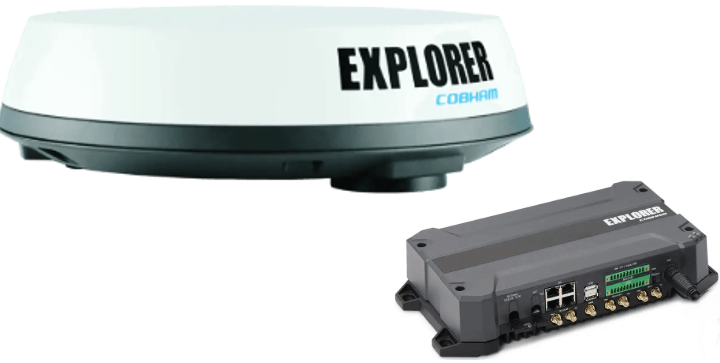

• 403723A-00506 Fully integrated EXPLORER 323 Antenna and Terminal, Color: White,
• 37-138863-A  Explorer 323 Hybrid cable for 12/24V DC power and Ethernet connectivity (6m / 19.7ft),
• Part# 403667A-00500 Explorer 3667 PTT PRISM Mobile Gateway 3 Terminal Unit,

This Mobile Gateway hub integrates all in-vehicle devices into one communication platform:
• Converts existing LMR/DMR radios into a futureproof Radio over IP solution
• Compatible with any type of radio network (DMR, P25, TETRA, LTR, Analogue)
• Connects 2 cellular USB modems (3G, 4G, LTE)
• Connects to all IP based networks such as LAN, public cellular networks and satellite
• Seamless routing of voice and data between networks and carriers with no loss of connectivity
• Easy to use speaker microphone with display

Beyond Line-Of-Sight Communication The 3rd generation EXPLORER Mobile Gateway is an AES-256 encrypted data communications device designed for use in a vehicle. It is an advanced IP-based radio and data gateway that integrates Land Mobile Radio (LMR) devices with satellite / LAN backhaul to provide seamless switching between available networks in any situation.

It is completely radio brand agnostic and designed to expand and augment LMR systems already in use in Public Safety, Utility, Mining, and Oil & Gas. The solution extends legacy Push-To-Talk radio capabilities to hybrid data networks such as terrestrial cellular networks, supplemented by satellite where no terrestrial network coverage is available.

With no user intervention required, the system automatically routes voice and data traffic via the most reliable network available.

The EXPLORER 323 is an ultra-compact BGAN terminal for voice and data communication on-the-move, a perfect match for PRISM PTT+

Whether you’re engaged in humanitarian operations, cargo or rail transportation, telemedicine or emergency services, you need easily deployable communication equipment you can always rely on.

Instant communication
Simply place the terminal on the roof – it is easily mounted with optional magnetic mounts – and connect your phone to the EXPLORER app or log onto the wireless network with your PC to turn the vehicle into a mobile communication hub.

No moving parts
The beam switching antenna is ultra compact and lightweight (just 3.9 kg / 8.5 lbs), ideal for vehicles or trains on-the-move. It is designed for robust and durable use with no moving parts.

NOTE: Requires setting up – sales: speak to service team
