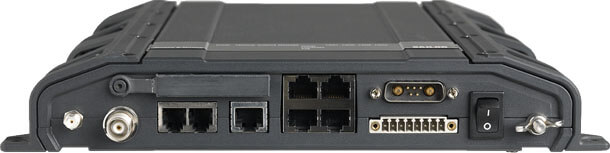

403736A Explorer 727 Transceiver, BDU Modem

TT-01-403736A
Weight: Transceiver – 2.4 kg(5.5 lb)
Size: Transceiver: H/W/D 42.5 x 247 x 270mm(1.67 x 9.72 x 10.63in)
RX: 1525.0 – 1559.0 MHz
TX: 1626.5 – 1660.5 MHz
Ch. spacing: 1.25 kHz – RX.
Global Services
Voice: Standard 4 kbps, Premium 3.1 kHz audio (*1)
Fax: ISDN, 3.1 kHz audio (*1), 64 kbps
Data: ISDN UDI/RDI (*1), 64/56 kbps, ISDN 3.1 kHz audio (*1), 64 kbps
Standard data up to 432 kbps
Streaming data (QoS) Up to 256 kbps
Text messaging: SMS up to 160 char.
Antenna Connectors
EXPLORER Terminal TNC-socket, female
Interfaces
4 x 10/100 Mbps Ethernet LAN user ports w/PoE(Max power at 12V, 30W), (Max power at 24V, 60W)
1 x ISDN (Euro – RJ-45)
2 x 2-wire (Analog – RJ-11)
5 x I/O connector with General Purpose I/Os: Pin 1: Ringer, Pin 2: Warning, Pin 3: Mute, Pin 4: Radio Silence, Pin 5: Ignition Control
1 x SIM card slot.
1 x Heavy duty power input plug (10-32 VDC), w/ remote on/off and locking mechanism
1 x Factory default reset button
1 x Power on/off switch
Status LEDs for: Power, Terminal, Antenna, Messages, LAN Activity, Link, PoE
Power Consumption
Maximum incl. antenna & PoE @ 10-32 V: 150 W
Environmental Conditions
Ambient temperature(Operational): -25 to +55°C (-13 to 131°F)
Survival temperature(Power on, non-functional): -40 to +80°C (-40 to 176°F)
Storage temperature: -40 to +85°C (-40 to 185°F)
Operating humidity: 95% non-condensing (at +40°C/104°F)
EXPLORER Terminal IP Rating: IP-31
Approvals
Inmarsat Land Vehicular Type Approval
CE mark, GMPCS
