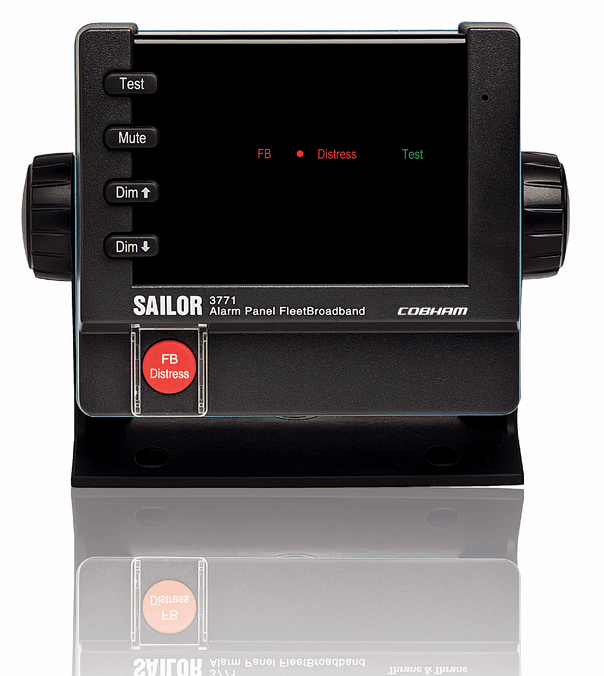

403771A-00500 Sailor 3771 Alarm Panel, Voice Distress, Non-SOLAS

403771A-00500 Sailor 3771 Alarm Panel, Voice Distress, Non-SOLAS

In the Voice Distress (Non-SOLAS) system, you can enable the use of priority calling for emergency use in the: Sailor Fleet One, FBB150, 250, 500 and Sailor 4300 Systems.

This is done using the built-in web interface, where you also designate a specific IP Handset for Distress.

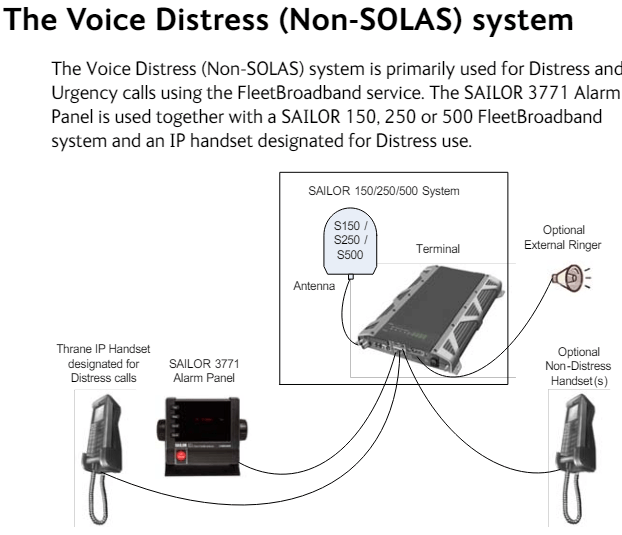

To use the Voice Distress (Non-SOLAS) system you must connect a Thrane IP Handset to the LAN interface and designate it for Distress. You must also connect a SAILOR 3771 Alarm Panel to activate Distress calls.

HOW IT WORKS

Inmarsat’s Voice Distress Calling service provides full priority access in both ship-shore and shore-ship communication in emergency situations, together with pre-emption for distress priority calls initiated by activation of the ‘red button’. Essentially, the service is able to interrupt any non-urgent calls once the distress button has been activated and gives full priority to subsequent emergency communications and so improve safety onboard.

The Voice Distress calling service provides full priority access in both ship-shore and shore-ship communication in emergency situations, together with pre-emption for distress priority call initiated by the activation of the “red button”. Essentially, the service is able to interrupt any non-urgent calls once the distress button has been activated and give full priority to subsequent emergency communications and hereby improve the safety on board.

The distress call from the FleetBroadband system is a voice call, which means that the call will be connected to an operator at the MRCC (Maritime Rescue Coordination Center). Each Inmarsat satellite region has a nominated MRCC, which assesses the call and directs details to a suitable rescue co-ordination centre near to the scene of the incident.  Please note that the service is not GMDSS compliant.

Distress pre-emption and priority voice call Pre-emption and Priority Calls enable the possibility of calling either to or from a vessel in distress even if the FleetBroadband voice line is already busy in an in- or outbound call. If a Voice Distress call is made, any existing calls will be terminated.

Pre-emption is for giving the RCC the ability to contact the vessel in distress or a vessel in close proximity even if the line is busy. • Priority is for giving the Distress call priority over any other call from the terminal.

How it works

In an emergency, pressing the button on the Alarm  Panel will connect you to one of  three MRCCs strategically located across the globe, one for each satellite. You will be offered assistance in any type of emergency. If you require rescue or other action, the MRCC will ensure you receive prompt assistance from those best suited to address your circumstances and location.

Simply lift the cover and press the red button on the Alarm Panel until beeps sounds continuously (Press and hold for 5 sec.). The phone will ring when the connection to the RCC is established. Since this is a voice only solutions position, vessel name etc. is not transferred in the call establishment and will have to be given to the operator.

IMPORTANT NOTE: Requires Sailor IP Handset, part# 403670A-00500 and is NOT included in this kit, but is available for purchase separately.
