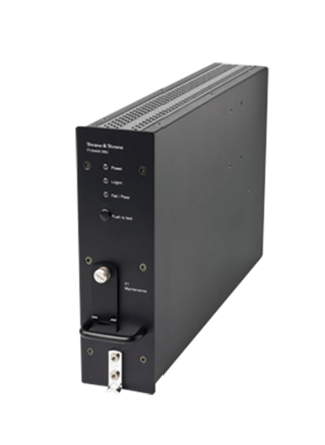

405040A-THD Cobham Aviator SBU SwiftBroadband Unit, for 200D/300D/350D/700D, without CM
405040A-THD Cobham Aviator SBU SwiftBroadband Unit, for 200D/300D/350D/700D, without CM - Image 2
405040A-THD Cobham Aviator SBU SwiftBroadband Unit, for 200D/300D/350D/700D, without CM - Image 3
405040A-THD Cobham Aviator SBU SwiftBroadband Unit, for 200D/300D/350D/700D, without CM - Image 4

405040A-THD Cobham Aviator SBU SwiftBroadband Unit, for 200D/300D/350D/700D, without CM

SKU: 405040A-THD

AVIATOR_700D_Brochure.pdf Aviator-700-and-700D_Installation-and-Maintenance-Manual-Part-1-7186906.pdf Aviator-700-and-700D-User-Manual_4022335.pdf Aviator-700-and-700D_FAA-REFERENCE-DOC_4022338.pdf 405013A-Diplexer-DRAWING_4022291.pdf

405040A-THD Cobham Aviator SBU SwiftBroadband Unit, for 200D/300D/350D/700D, without CM

The Swift Broadband Unit is a compact, high-performance module designed for seamless satellite communication integration on aircraft.

It supports up to eight simultaneous voice calls and provides IP Packet or streaming SwiftBroadband data.

With built-in Ethernet connectivity, a router featuring six ethernet interfaces, and a wireless access point, it allows multiple devices to connect effortlessly.

This lightweight, two MCU unit is energy-efficient, requires no forced cooling, and integrates easily with existing systems. FAA PMA certified, it’s ideal for reliable in-flight connectivity.

This pack includes the SBU(SwiftBroadband Unit): part# 405040A-THD only.

405040A-THD Features
  • Up to eight simultaneous voice calls
  • IP Packet or streaming SwiftBroadband data
  • Ethernet connectivity
  • Built-in router with six ethernet interfaces
  • Built-in wireless access point
  • Low weight and power consumption
  • Compact two MCU size
  • No forced cooling required
  • Easy integration
  • FAA PMA
405040A-THD Specifications
  • Weight: 6.2 lbs (2.8 kg)
  • Dimensions: 12.62 x 2.25 x 7.62 in (320.5 x 57.2 x 193.5 mm)
  • Power: 28 VDC (max), 30 W (typical), 83 W (max)
  • Altitude: MSL to 55,000 ft
  • Temperature: -25°C to 55°C
  • Connectors: Rear: ARINC 404A, Front: RJ-45
700/700D SYSTEM REFERENCE – SEE BELOW……………………………………………………………….
The Cobham AVIATOR 700D system is engineered to take advantage of the latest technologies, such as, SwiftBroadband for increased reliability and connectivity.
The SwiftBroadband Background Data and Standard Voice channel allow users to access a shared data channel and a compressed high-quality voice channel at the same time.
The Aviator 700/700D System is a mounted Aeronautical Communication System supporting simultaneous voice and data communication though Inmarsat BGAN satellite service.
The standard 700/700D system components consist of the following Items:
 SDU (Satellite Data Unit) 405035A or 405035A-THD (TT-5035A or TT-5035A-THD)
 HPA (High Power Amplifier) 405014A or 405014A-THD (TT-5014A or TT-5014A-THD)
 SBU (Satellite Broadband Unit) 405040A or 405040A-THD (TT-5040A or TT5040A-THD)
 Type-F DLNA (Diplexer and Low Noise Amplifier) 405013A (TT-5013A)
 HGA (High Gain Antenna) e.g. 405007A (TT-5007A-THR)
 RF-Splitter 405038A-003 (TT-5038A-003)
 RF-Coupler 405038A-004 (TT-5038A-004)
AVIATOR 700D is an Inmarsat SwiftBroadband HGA (Class 6) System supporting:
• Single Channel SwiftBroadband
• Circuit-switched standard voice
• Background IP up to 432 kbps
• Streaming IP at 8/16/32/64/128 kbps
• SB X-Stream services
• ISDN service or 3.1 kHz audio
Inmarsat Satellite Land Earth Station – RAN Cobham AVIATOR
Description of Equipment: The 5035A/5035A-THD Satellite Data Unit (SDU), the 5014A/5014A-THD High Power Amplifier (HPA), the 5040A/5040A-THD Satellite BGAN Unit (SBU) and the 405013A Type F Diplexer and Low Noise Amplifier (DLNA) supports the SwiftBroadband aeronautical satellite communications service.
The transceiver meets the applicable requirement of RTCA/DO-210D “Minimum Operational Performance Standard for Geosynchronous Orbit Aeronautical Mobile Satellite Services (AMSS) Avionics”.
The AVIATOR 700/700D system are comprised of four units:
  • The 5035A/5035A-THD Satellite Data Unit (SDU)),
  • the 5014A/5014A-THD High Power Amplifier (HPA),
  • the 5040A/5040A-THD Satellite BGAN Unit (SBU) and
  • the 405013A Type F Diplexer and Low Noise Amplifier (DLNA).
The 5040A/5040A-THD (SBU) & The 5035A/5035A-THD (SDU) supports Inmarsat SwiftBroadband signals using BPSK, QPSK and 16QAM.The SDU/SBU signals are combined and amplified for transmission by the 5014A/5014A-THD (HPA). The AVIATOR 700/700D is a unique multi-channel solution.
It combines global voice, fax and data capabilities of the Inmarsat Classic Aero, SwiftBroadband and Swift64 service.
The AVIATOR 700/700D system provides one baseband communication channel capable of supporting simultaneous full-duplex of SwiftBroadband functionality.
The System functions in the 1525 – 1559MHz receive band and 1626.5 – 1660.5MHz transmit band.

Brand

Aviator
