405624B-THR Thrane Cobham Aviator TT-5624B Wireless Handset, Black

405624B-THR Thrane Cobham Aviator TT-5624B Wireless Handset, Black

The AVIATOR Wireless Handset is a compact, light-weight aeronautical handset for use with aeronautical satcom systems from Cobham SATCOM.

IP calls and SIP telephony
The AVIATOR Wireless Handset is used for making phone calls over an IP based network. The handset connects to a wireless access point complying with the Wireless Local Area Networking (WLAN) standard 802.11b/g. VoIP calls can be terminated in the SIP server of the Swift Broadband Unit of the satcom system, or they can travel as an IP call over satellite and be terminated by a SIP server at the receiving end.

The AVIATOR Wireless Handset connects to:
• a wireless access point, which is connected to a SwiftBroadband unit
• a wireless access point, which is connected to another IP connection
• a SwiftBroadband unit with integrated wireless access point
Note: The internal battery is charged from the dedicated cradle connected to an external power supply.

AVIATOR Wireless Handset connectors
The handset has two connectors on the side of the handset:
• one connector for connecting a headset (3.5 mm SMT phone jack, Switchcraft 35RASMT3BHNTR, see the Installation & Maintenance manual for details).
• one Mini-USB 5-pin connector, for charging the handset from a computer or USB charger in the service & installation center.

405624B-THR Whats in the Box?

• TT-5624B AVIATOR Wireless Handset, Black
• USB cable for service-charging the device outside the aircraft, Mini-USB type B (5-pin)
• 405624B-101 Manual pack: for AVIATOR Wireless Handset and Cradle

Compass safe distance
Make sure that the AVIATOR Wireless Handset and the Cradle is installed far enough from any magnetic compass to avoid influence of the loudspeaker magnet on the compass
reading. See the following table for the safe distance.
Table 4-1: Compass safe distance: AVIATOR Wireless Handset 400 mm (15.75 inches), Cradle 400 mm (15.75 inches

Applicable Cobham SATCOM model- and part numbers
This Installation Manual is for the AVIATOR Wireless Handset and Cradle and is applicable to the model- and part numbers below:

• T & T Part#     –   Model#     –   Description
• 405624B-THR   –   TT-5624B   –   AVIATOR Wireless Handset, black
• 405624B-THW  –  TT-5624B   –   AVIATOR Wireless Handset, white
• 405626B-THR   –  TT-5626B    –   Cradle for AVIATOR Wireless Handset, black, with Pigtail, and mating connector
• 405626B-THW  –  TT-5626B    –   Cradle for AVIATOR Wireless Handset, white, with fixed Pigtail, and mating connector
• 405624B-101 Manual pack: for AVIATOR Wireless Handset and Cradle
• Recommended Aircraft Circuit Breaker for the Cradle:  Klixon 2TC2-2 or MS3320-2 Dimension of circuit breaker: 2 A
• Mating connector: A mating connector for the pigtail connector (Mini Snap Female, size 0 (ODU PN K20L0C- P02NJH0-420S)) is included in the delivery.
• Additional connectors for the pigtail are available: Cobham SATCOM part number: 31-206012-003 (ODU PN S20L0C-P02PJH0-420S

AVIATOR Wireless Handset features

 Voice communication over IP based network
 Noise cancellation system
 Echo cancellation system
 Automatic power-up and power-down
 Li-Ion battery for extended talk and standby time
 Headset connection (3.5 mm Jack connector)
 Adjustable keypad backlight
 Display of alarms of the SwiftBroadband Unit
 High quality color TFT display with night colors

405624B Wireless Handset SPECIFICATIONS

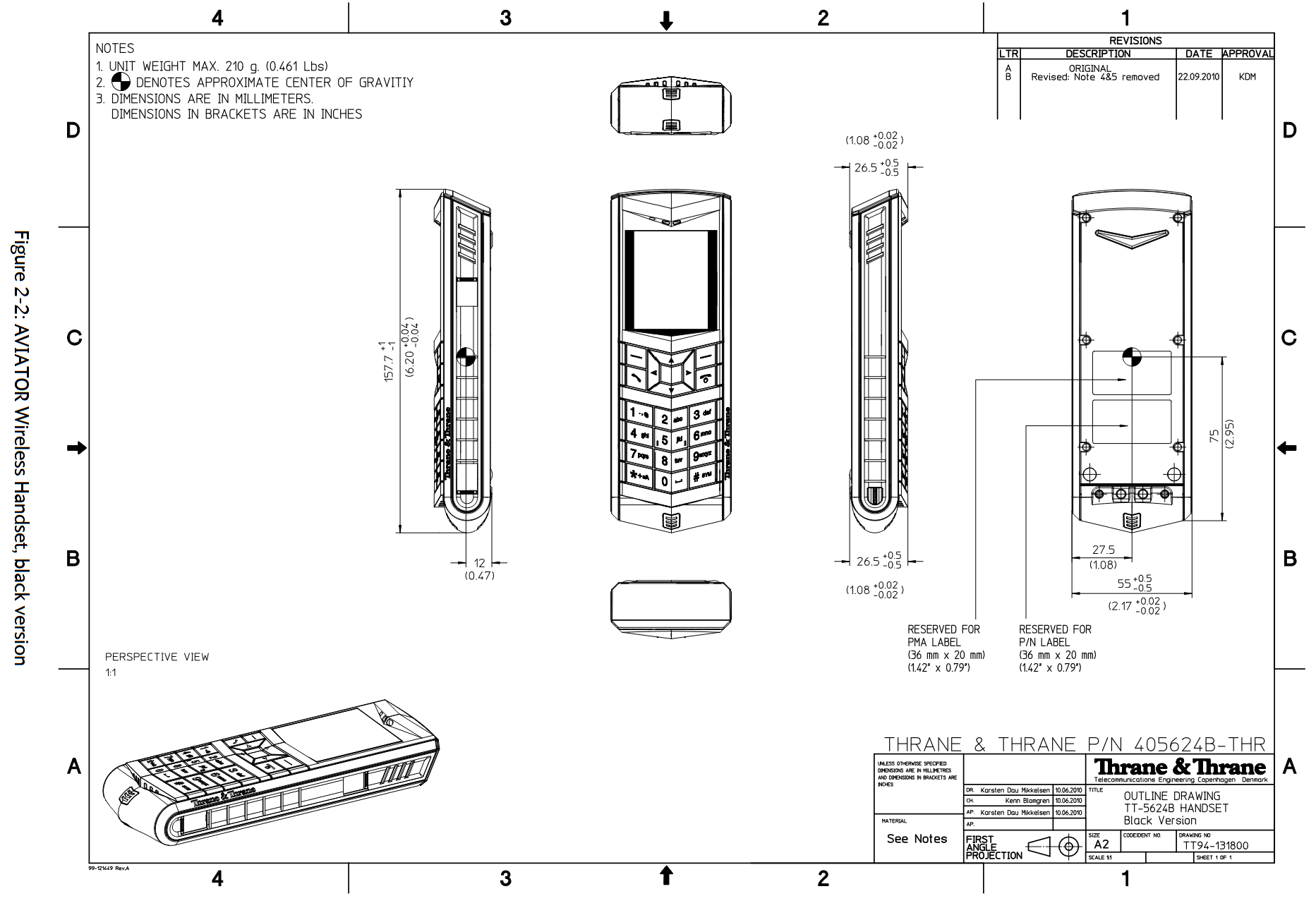

Dimensions (L x B x H) 152 mm x 55 mm x 26.5 mm (5.98’’x2.17’’x1.04’’)
Weight Max. 210 g (0.461 lbs)
Display 2.2″, 240 x 320 pixel TFT color LCD
Operating temperature -15°C to +45°C
Storage temperature Long term (>6 months) -20°C to +25°C, Short term (<6 months) -20°C to +45°C
Handset charging temperature 5°C to 30°C
Temperature, transport -25°C to +55°C
Humidity Up to 95% without condensation
Protection category IP54, dust proof and splash proof
Air pressure, transport 4572m AMSL
Battery Li-Ion 1880 mAh
Standby time Up to 30 hours
Talk time Up to 6 hours
Wireless network interface Wireless Local Area Network (WLAN) according to 802.11b/g
Network Protocol Internet Protocol (IP)
VoIP Protocol SIP v2 Session Initiation Protocol (RFC3261), SDP (RFC2327)
Voice Codecs G.711 and G.729 A/B
Physical interfaces Headset 3.5 mm Jack plug, Mini-USB 5-pin (service use only)
Encryption (VoIP protocol) SRTP (RFC 3711), ZRTP (ID ver. 3)
Compass safe distances
AVIATOR Wireless Handset: 400 mm (15.75“), Cradle: 400 mm (15.75”)
Certifications FAA PMA 8130-3
FCC-ID: ROJIPHANDSET

a. Compliant with DO160-F, Section 15.0, category A.

REFER BELOW FOR GENERIC AVIATOR 200 SYSTEM INFO*************************************************

SBB-AV-200-LGA Cobham Aviator 200 System, Single Channel Class 15 SwiftBroadband, Low Gain Antenna

Cobham’s AVIATOR 200 is the lightest, most compact airborne broadband solution on the market today. A perfect choice for smaller airframes or cost-conscious operators looking to add the convenience of in-flight broadband access. With reduced hardware and installation costs, AVIATOR 200 is everything you need to stay connected no matter what you fly.

Full Features – Compact Size
Cobham’s AVIATOR 200 is the lightest, most compact airborne broadband solution on the market today. A perfect choice for smaller airframes or cost-conscious operators looking to add the convenience of in-flight broadband access.

With reduced hardware and installation costs, AVIATOR 200 is everything you need to stay connected no matter what you fly.

Aviator 200/300/350 System – Overview
The AVIATOR 200/300/350 system is a compact, light-weight aeronautical satcom system that uses Inmarsat’s SwiftBroadband services.

The AVIATOR system consists of the following units:
• TT-5040A SBU SwiftBroadband Unit
• TT-5040A-001 or TT-4050A-8xy CM Configuration Module, inserted in the SBU. The CM also holds the SIM card, which provides access to the SwiftBroadband services. The SIM card is included in the delivery.
• TT-5016A HLD High Power Amplifier, Low Noise Amplifier and Diplexer in one unit.
NOTE: These units must be connected to a satcom antenna. See section Satcom antenna systems on page 2-5 of the Installation Manual(attached) for supported antenna types and model numbers.

Flexible, Affordable and Dependable
Being the lightest, most compact broadband system available has its advantages. The hardware itself is engineered for unprecedented flexibility of use. This reduced weight and size makes it ideal for smaller airframes or aircraft already equipped for special missions, but would benefit from the additional capability it delivers.

Applications range from general aviation use to mission-specific military needs. Additionally, powerful options allow the user to tailor the system to their specific needs.
• Built-in router
• Built-in WiFi access

Features

The AVIATOR 200/300/350 system has the following features:

 SwiftBroadband unit providing an ‘always on’ data connection of up to 432 kbps.

 Full duplex, single or multi-user  Automatic satellite selection.

 Built-in PBX interfacing to two 2-wire connections, one ISDN interface and WLAN in the SBU, with integrated SIP server.

 Standard voice.

 3.1 kHz audio for modems, G3 fax, 14.4 kbps high quality voice etc.1

 ISDN voice for Secure communication, G4 fax etc.1

 ISDN data for video conferences etc.1

 Built-in Router option with DHCP and Network Address Translation (NAT).

 Access to built-in web interface for daily use on all LAN connectors.

 Built-in Wireless option (WLAN) IEEE 802.11 b/g.

 Built-in Multi-voice option, up to 1 + 8 concurrent calls (from software 1.07 Level E, 2.01 Level D)

 Built-in web interface for configuration using the Maintenance connector on the SBU front plate.

 Remote management

 ACARS (from software 2.01 Level D)

 SB-Safety Voice (ICAO voice) (from software 4.0 Level D) The AVIATOR 200/300/350 system does not affect the operation of an Iridium system.

Interfaces

The availability of some services depends on the installed satcom antenna. Check the section Services on page 3 for an overview of services available for the antenna types LGA, IGA and HGA. The AVIATOR 200/300/350 system has the following interfaces:

 Two 2-wire connections for telephone

 One ISDN interface

 Six Ethernet interfaces

 One Wireless interface (WLAN) IEEE 802.11 b/g

 One Ethernet interface for system configuration on the SBU front plate (It is used for installation, service and maintenance. It is not used during flight time.)

Built-in router and Wireless options

The AVIATOR 200/300/350 system offers a built-in router as an option. With this option multiple users and applications can use the system simultaneously. Without this option only the first device that connects to the SBU will be allowed on the Internet. The system also offers a built-in WLAN option for wireless communication devices and a WLAN antenna approved for aeronautical use. This includes full WLAN routing functionality. If ordered, these options are enabled in the AVIATOR 200/300/350 from the factory. If these options are not included from the start, the system can be upgraded at a later stage. Then you receive the FLEX key for the purchased options and enter it in the AVIATOR 200/300/350 web interface.
