405626B-THR Thrane Cobham Aviator TT-5626B Cradle only for Wireless Handset, Black

405626B-THR Thrane Cobham Aviator TT-5626B Cradle only for Wireless Handset, Black

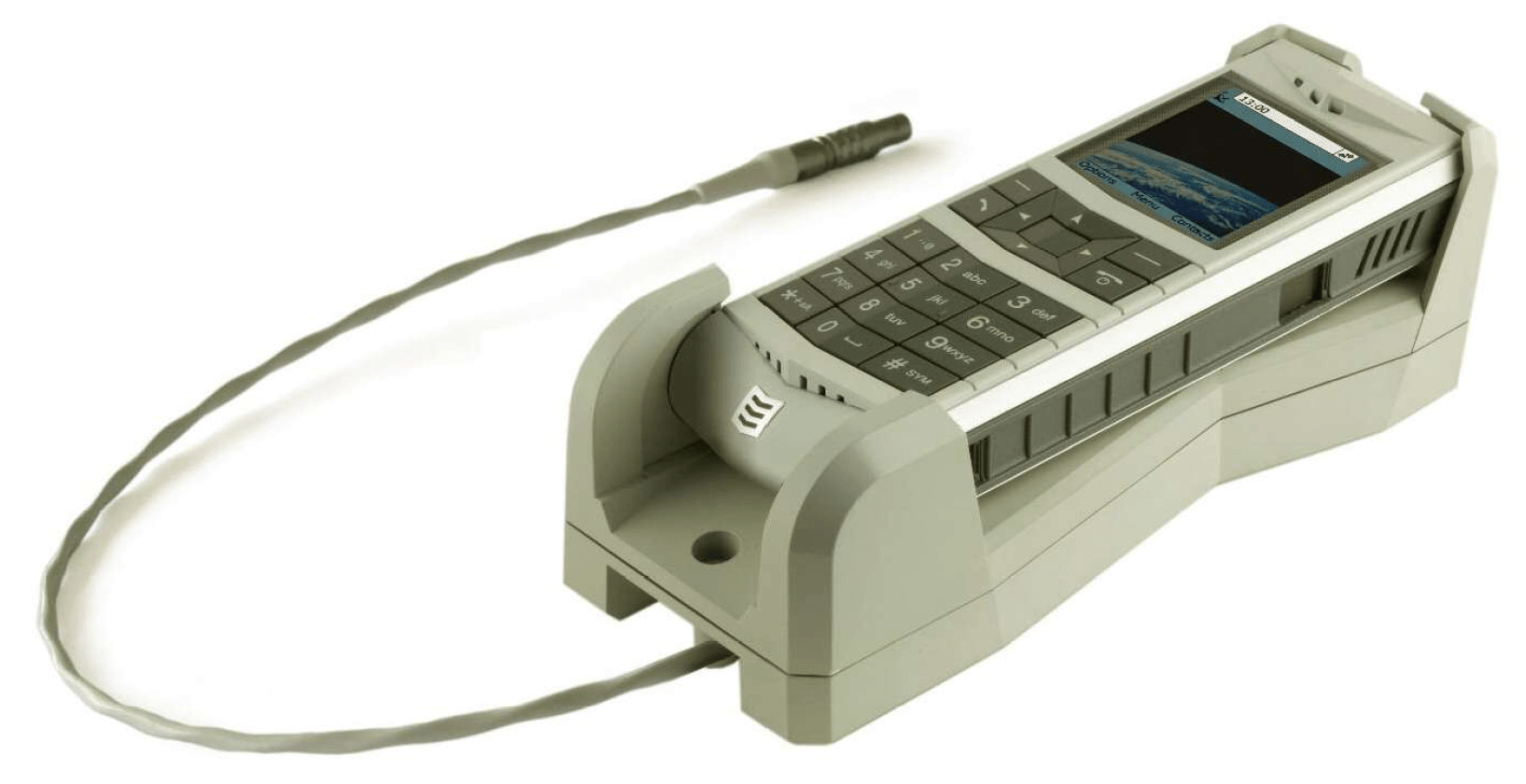

The AVIATOR Wireless Handset is a compact, light-weight aeronautical handset for use with aeronautical satcom systems from Cobham SATCOM.

The TT-5624B AVIATOR Wireless Handset connects through a wireless access point to the SwiftBroadband satcom system.
It is charged by the Cradle. The Cradle is installed in the aircraft cabin and powered by the aircraft’s power supply.

IP calls and SIP telephony
The AVIATOR Wireless Handset is used for making phone calls over an IP based network. The handset connects to a wireless access point complying with the Wireless Local Area
Networking (WLAN) standard 802.11b/g. VoIP calls can be terminated in the SIP server of the Swift Broadband Unit of the satcom system, or they can travel as an IP call over satellite and be terminated by a SIP server at the receiving end.

405626B-THR Whats in the Box?

• TT-5626B AVIATOR Cradle, Black, with Pigtail, terminated with Mini-Snap Male Connector
• 31-206012-003 Mating Connector, Mini-Snap Female, size 0 (ODU PN K20L0C- P02NJH0-420S)
• 405624B-101 Manual pack: for AVIATOR Wireless Handset and Cradle
• Note: This pack does NOT include any Wireless Handset

Compass safe distance
Make sure that the AVIATOR Wireless Handset and the Cradle is installed far enough from any magnetic compass to avoid influence of the loudspeaker magnet on the compass
reading. See the following table for the safe distance.
Table 4-1: Compass safe distance: AVIATOR Wireless Handset 400 mm (15.75 inches), Cradle 400 mm (15.75 inches

Applicable Cobham SATCOM model- and part numbers
This Installation Manual is for the AVIATOR Wireless Handset and Cradle and is applicable to the model- and part numbers below:

• T & T Part#     –   Model#     –   Description
• 405624B-THR   –   TT-5624B   –   AVIATOR Wireless Handset, black
• 405624B-THW  –  TT-5624B   –   AVIATOR Wireless Handset, white
• 405626B-THR   –  TT-5626B    –   Cradle for AVIATOR Wireless Handset, black, with Pigtail, and mating connector
• 405626B-THW  –  TT-5626B    –   Cradle for AVIATOR Wireless Handset, white, with fixed Pigtail, and mating connector
• 405624B-101 Manual pack: for AVIATOR Wireless Handset and Cradle
• Recommended Aircraft Circuit Breaker for the Cradle:  Klixon 2TC2-2 or MS3320-2 Dimension of circuit breaker: 2 A
• Mating connector: A mating connector for the pigtail connector (Mini Snap Female, size 0 (ODU PN K20L0C- P02NJH0-420S) is included in the delivery.
• Additional connectors for the pigtail are available: Cobham SATCOM part number: 31-206012-003 (ODU PN S20L0C-P02PJH0-420S

AVIATOR Wireless Handset features

 Voice communication over IP based network
 Noise cancellation system
 Echo cancellation system
 Automatic power-up and power-down
 Li-Ion battery for extended talk and standby time
 Headset connection (3.5 mm Jack connector)
 Adjustable keypad backlight
 Display of alarms of the SwiftBroadband Unit
 High quality color TFT display with night colors

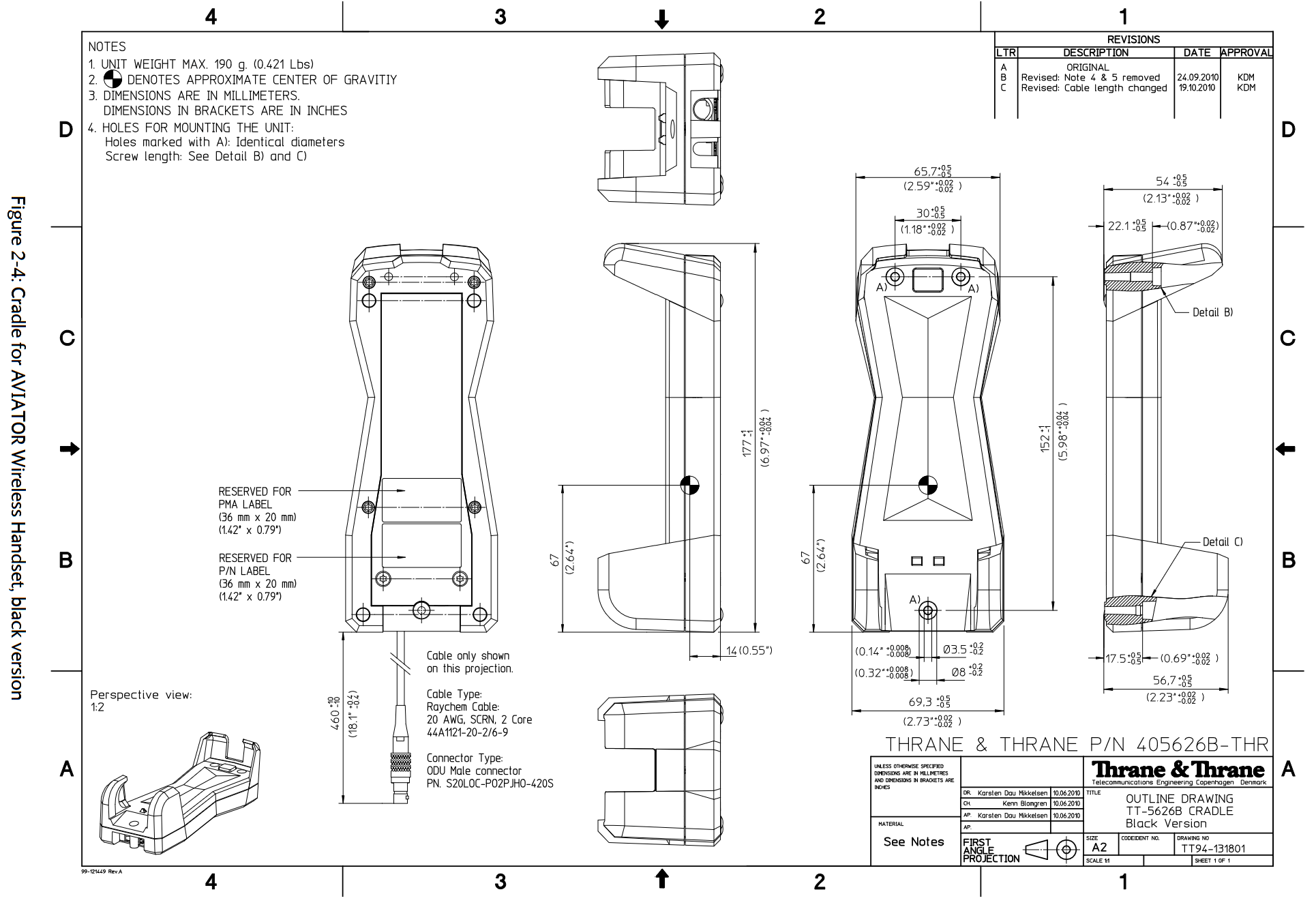

405626B Cradle for Wireless Handset – SPECIFICATIONS

Dimensions (L x B x H) 177 mm x 67.5 mm x 54 mm (6.97’x 2.59’ x 2.13’)
Weight Max. 190 g (0.421 lbs)
Mounting: Mount in a pressurized and temperature controlled location.
Operating temperature -15°C to +45°C
Storage temperature Long term (>6 months) -20°C to +25°C
Short term (<6 months) -20°C to +45°C
Temperature, transport -25°C to +55°C
Humidity Up to 95% without condensation
Air pressure, transport 4572m AMSL
Certifications FAA PMA 8130-3, FCC-ID: ROJIPHANDSET
Power consumption 6 W max.
Aircraft DC power supply 28 VDC, min. 20.5 V, max. 32.2 V
Environmental Categories Refer to Environmental Qualification form in insert-cross reference in Appendix B (of Installation Manual)
Compass safe distances
AVIATOR Wireless Handset: 400 mm (15.75“), Cradle: 400 mm (15.75”)
