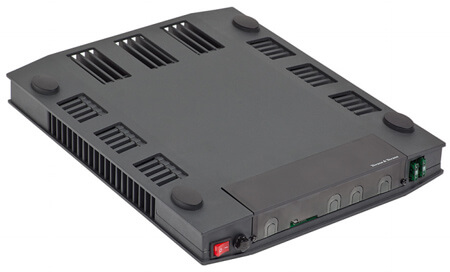

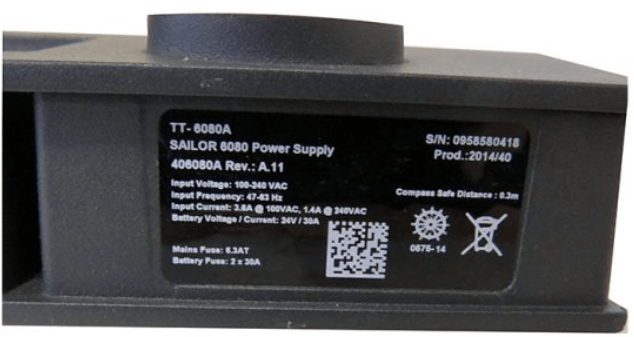

406080A-00501 Sailor 6080 Power Supply, 300W/28VDC

406080A-00501 Sailor 6080 Power Supply, 300W/28VDC

Originally developed as a dedicated BGAN power supply unit, the SAILOR 6080 AC/DC Power Supply is also destined to work as a
generic AC/DC power unit across the maritime portfolio, either as stand-alone or daisy chained to provide additional power.

This new modular design set-up on PSU promises greater flexibility and ease of installation than ever seen before.

406080-00501 – Whats In the Box
• SAILOR 6080 Power Supply

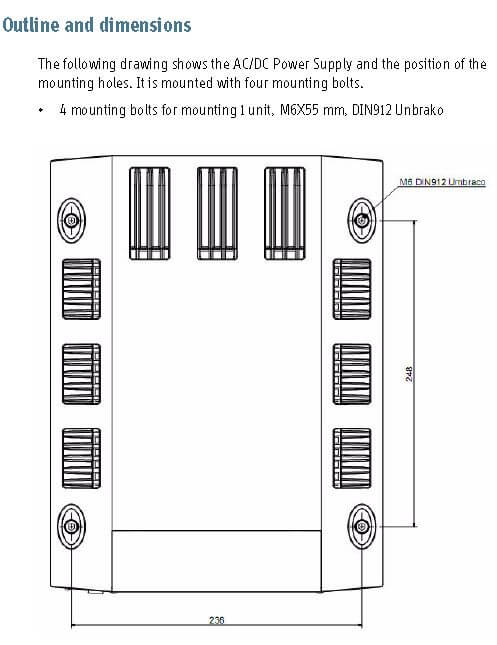

• 4 mounting bolts for mounting 1 unit, M6X55 mm, DIN912 Hex
• 4 Top Caps for covering mounting holes
• Cable-relief bracket, comb-style
• Installation manual (this manual)

Optional accessories available, but NOT included in this pack

• S-406081-004 • Mounting Kit F/ 3 additional 6080 power packs
• S-406080A-001 Wall-mount tray, heavy duty, with cable-relief bracket(supports up to 4pcs 6080 Power Supply Units)
• S-406080A-002, to support mounting x2pcs 6080 AC/DC Power Supply units, 4pcs M6X100 mm, DIN912 Unbrako
• S-406080A-003, to support mounting x3pcs 6080 AC/DC Power Supply units, 4pcs M6X140 mm, DIN912 Unbrako

Features

• Two DC connectors, output, range: 28.7 V – 31.2 V
• Output power 300 W continuous, 370 W peak (max. 2 min., 10% duty cycle, 100-240 VAC) or 270 W continuous, 333 W peak (max. 2 min., 10% duty cycle, 90-100 VAC)
• Daisy-chaining of up to four units to give up to 1480 W.1
• AC input (100-240 VAC operating) with fuse (6.3 A) with Power Factor Correction
  Automatic detection of input voltage range
• AC alarm and Short circuit protection
• Over-temperature protection (shutdown with automatic restart)
• Switch over to battery power in case of AC supply failure, secured by 2 fuses (30 A)
• On/off switch
• Short circuit protection
• No forced cooling required
• IP 3X for internal high voltage areas (>42 V), IP 2X in other areas
• IP X2 when vertically mounted (wall) and connector panel is facing down
• Approval and certification: IEC 60945 approval

Specifications / Value

• Dimensions(HLW): 46.5 x 354 x 265mm
• Weight(Approx.): 3.7kg
• Compass safe distance 300mm
• Output power at 100 VAC – 240 VAC 300 W continuous / 370 W peak (max. 2 min. with 10% duty cycle)a
• Output power at 90 VAC – 100 VAC: 270 W continuous / 333 W peak (max. 2 min. with 10% duty cycle)a
• DC output (nominal): 31.2 VDC at 0 A / 29.3 VDC at 10 A / 28.7 VDC at 13 A
• AC input voltage: 115-230 VAC nominal, 100-240 VAC operating
• NOTE: Output power capability depends on the mounting position (horizontal or vertical), input voltage, ambient temperature and ventilation at the place of installation.
• Alarm in case of: AC power failure
• IP rating: IP 30
• Operating temperature: -15° to +55° C
• Storage temperature: -40° to +80° C
• Heat dissipation: 31,104 Kcal / hour
• Survival temperature(power on): -40° to +80° C
• NOTE: Cooling The SAILOR 6080 must be placed in a ventilated area with free space around all sides of the unit, except the bottom side.

The 6080A AC/DC Power Supply can deliver 300 W output power on average with a peak of 370 W for a minimum of 2 minutes.

This is useful for MF/HF applications and DSC transmissions of 2 minutes duration.

It is AC powered with a battery switch-over function.

All connectors are placed at the same end of the power supply to simplify mounting and installation, the connector panel is protected by a transparent lid.

When mounted vertically the AC/DC Power Supply fulfils IP32 in areas with more than 42 V and IP22 in other areas.
This means that the unit is protected against the intrusion of solid objects (including body parts like fingers), dust, water etc.
When mounted vertically the AC/DC Power Supply fulfils IP32 in areas with more than 42 V and IP22 in other areas.
This means that the unit is protected against the intrusion of solid objects (including body parts like fingers), dust, water etc.
When more power is needed than one power supply can give, i.e. 300 W, you can stack up to three power supplies on top of each other and connect them.
When stacking 2 or 3 units the load on each of the units is automatically balanced among the units.

Stacking multiple units
You can mount up to three AC/DC Power Supply units in a vertical (recommended to use the Wall Mounting Tray and cable-relief bracket, heavy duty, order number: Part# 406080A-001) or horizontal position.
When mounted in a vertical position, with the connector panel pointing downwards, the unit fulfils IP32 in areas with more than 42 V and IP22 in other areas.
The mounting holes in the AC/DC Power Supply are designed in such a way that units fit nicely on top of each other when being stacked.

IMPORTANT NOTE
To ensure adequate cooling of the AC/DC Power Supplies an unobstructed space of minimum 5 cm must be maintained around all sides of the group of units (except between the units and the bottom side).
