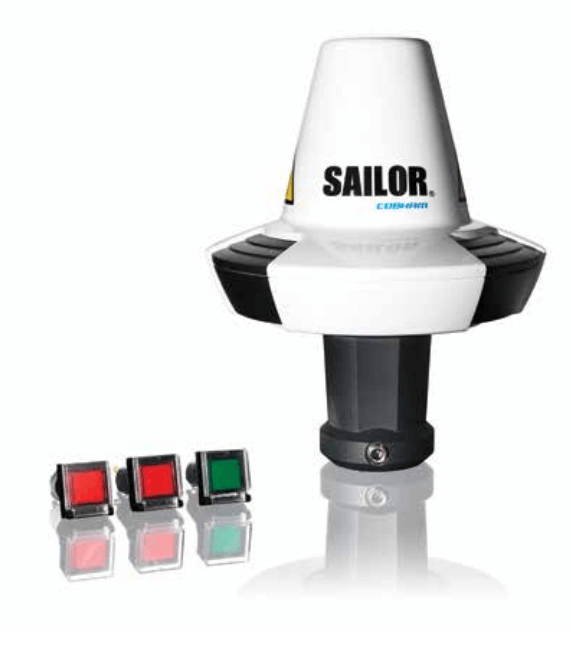

406120A-00510 SAILOR 6120 mini-C, SSA System – US version
Sailor 6120 mini-C SSA System is approved by Inmarsat and all major classification societies and national flag state administrators, and exceeds the requirements listed in IMO MSC. 136(76) and MSC. 144(77) under SOLAS resolution XI-2/6.
$5,483.50 Inc. GST
406120A-00510 INMARSAT by Thrane Thrane, SAILOR 6120 Mini-C SSAS (US Version) Satellite Terminal
SAILOR 6120 mini-C SSAS
Building on the successful legacy of SAILOR TT-3000 SSAS System, SAILOR 6120 mini-C SSAS introduces new messaging functionality and meets all requirements of the Ship Security Alert System.
Fully approved
SAILOR 6120 mini-C SSA System is approved by Inmarsat and all major classification societies and national flag state administrators, and exceeds the requirements listed in IMO MSC. 136(76) and MSC. 144(77) under SOLAS resolution XI-2/6.
So you can be sure that you are meeting requirements the new Terminal Control Unit enables operators to easily determine system status such as power, Inmarsat log-in and GPS fix.
Next generation functionality
Multiple address functionality enables additional messages to be sent to chosen recipients, in addition to the ISPS code required flag state and ship owner messages.
Be confident that you can get the message out to authorities, the operator, crew family or other stakeholders without fail should the worse happen.
Technical innovation
New sealed, self-contained terminal design, 50 channel GPS module, high gain omni-directional antenna and the included NMEA 2000 and RJ45 cabling set SAILOR 6120 mini-C SSA System apart.
Accurate, reliable satellite fix and position, lower lifetime costs, no condensation issues and improved installation and maintenance thanks to unique cabling and upgraded design/technology.
Designed for action
Alert buttons are small to ease installation and concealment whilst configuration and re-configuration, can be done remotely or by one of our technicians.
Keep your alerting system hidden from attackers and benefit from simpler installation and maintenance that requires no crew interaction.
Touchscreen operation
Operation is via the new SAILOR 6006 Message Terminal, which stands out as the world’s first touch screen, Wheelmarked GMDSS terminal.
The multimedia style interface is user-friendly, which in turn ensures the safe operation of the vessel’s IMO safety and tracking systems.
Efficient communication
SAILOR 6120 mini-C SSA System features ThraneLINK, a unique new system that enables efficient communication within the network.
Engineers can access a vessel’s network from a single point for lower maintenance and lifetime costs. The system also identifies new products in a network, making installation easier.
TT-00-406120A-00500 INMARSAT by Thrane Thrane, SAILOR 6120 Mini-C SSAS Satellite Terminal
SSAS Regulation
The SAILOR 6120 mini-C SSAS fully meets and exceeds the requirements listed in IMO MSC. 136(76) and MSC. 144(77) under SOLAS resolution XI-2/6. This stipulates that all vessels over 500 GT are required to be fitted with a Ship Security Alert System (SSAS) to be used under pirate attacks to notify the flag state administration. Alarms are silent, meaning that there is no audio or visual indication on the vessel that an alarm has been activated.
SAILOR 6120 mini-c SSAS Features
The multiple address functionality enables additional messages to be sent directly to, e.g. the vessel owner, operator or crew family, in addition to the required flag state and ship owner message in
relation to the ISPS code. Re-configuration can be done remotely or by a Thrane & Thrane technician, and has been made simpler, requiring no crew interaction. New configurations may be required when changing flag, where the SSAS alert address stored in the terminal needs to be updated. The Thrane 6194 Terminal Control Unit (TCU), is the key connection point to the system and brings new functionality to ease operation. The TCU has a range of LEDs that allow operators to quickly determine Inmarsat, GPS and program status. They are all usefull features if the SAILOR 6120 mini-C SSAS is also used as Long Range Identification and Tracking (LRIT) carrier.
Easy Upgrade & Installation
Upgrading from a SAILOR TT-3000SSA has been made easy as existing SSAS alert and test buttons can be simply connected to the TCU instead of the legacy interconnection box. The SAILOR 6120 mini-C SSAS comes complete with all cables and connectors, making it ready to go out of the box. The standard connection cable to the mini-C terminal is 30M long, but can be extended up 200M.
Approvals and certification
The SAILOR 6120 mini-C SSAS is approved by Inmarsat and all major classification societies and national flag state administrators where required. In addition to its primary function as SSA alert carrier the SAILOR 6120 mini-C SSAS can also function as a LRIT.
Brand
Sailor
Whats in the Box? TT-00-406120A-00510
SAILOR 6120 Mini-C SSAS (US Version) System includes the following:
SAILOR 3027 SSAS Terminal,
Polemount,
30m NMEA2K Mini cable w/plug for mini-C (backbone)
Thrane 6194 Terminal Control Unit (TCU),
6m NMEA2K Micro connection cable,
6m NMEA2K Power Cable,
Mini/Micro NMEA2K Tee,
2 pcs. Alert buttons with 50m Cable,
1 pc Test butoon with 50m Cable
