406205A-00500 Sailor 6205 Control Speaker Mic and Cradle, with DSC, Distress Button
406205A-00500 SAILOR 6205 Control Speaker Mic Cradle with DSC, Distress Button
NOTE: The SAILOR 6205 has additionally class D DSC functionality, with Distress Button
Sailor 6205 – What’s in the box?
- 6205 Control Speaker Microphone with Cradle
- Integrated spiral cable and connector, DSC Enabled with Distress Button
- Cradle for Control Speaker Microphone
- 5m extension cable with connector
- Kit with mounting screws
- User manual

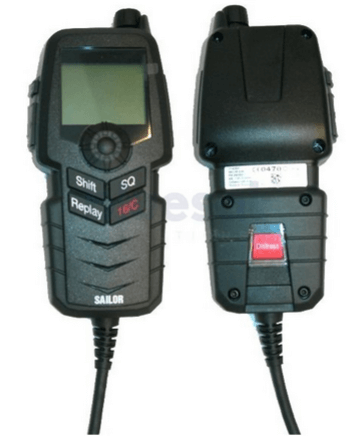

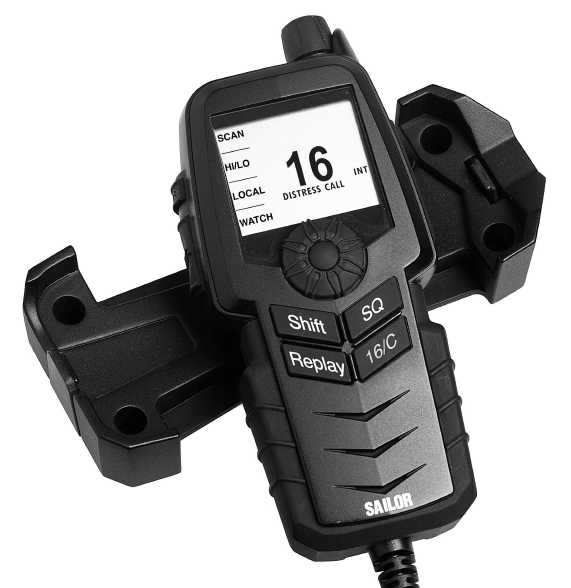

The SAILOR 6204/05 Control Speaker Microphone (CSM) is a control and speaking device for remote radio operation of a VHF radio.
The SAILOR 6204/6205 is powered by the radio and has full VHF radio functionality.
The Control Speaker Microphone is waterproof to the IPx8 and IPx6 standard.
Display has a view area of 40×30 mm and a menu-driven setup.
The display can be dimmed for optimum readability and visibility (both day and night). Use the selector wheel and buttons to access the desired radio functions.
Up to four Control Speaker Microphones can be connected to one radio.
If the radio requires the audio, the microphone of the Control Speaker
Microphone is automatically switched off.
SPECIFICATIONS 6204/6205
- Weight Control Speaker Microphone 320 g (0.7 lbs)
- Shipping Box weight 1.2 kg (2.6 lbs)
- Dimensions Height: 173 mm
- Width: 70 mm
- Depth: 52 mm, including front selector wheel and cradle
- Operating temperature -25°C to 55°C (5°F to 131°F)
- Storage temperature -30°C to 80°C (-22°F to 176°F)
- Power supply Powered by the radio.
- Current consumption Powered by the radio.
