406205B-00500 Explorer 6205 CSM Control Speaker Microphone Handset for 3647 PTT Terminal
$975.70 Inc. GST
406205B-00500 Explorer 6205 CSM Control Speaker Microphone Handset for 3647 PTT Terminal
The look and feel of the included Control Speaker Microphone is exactly like a simple legacy Push-To-Talk handset.
EXPLORER Mobile Gateway is an IP-based radio and data communications device that delivers extended coverage, improved call quality and lower costs for mobile workforce communications.
Included in this pack:

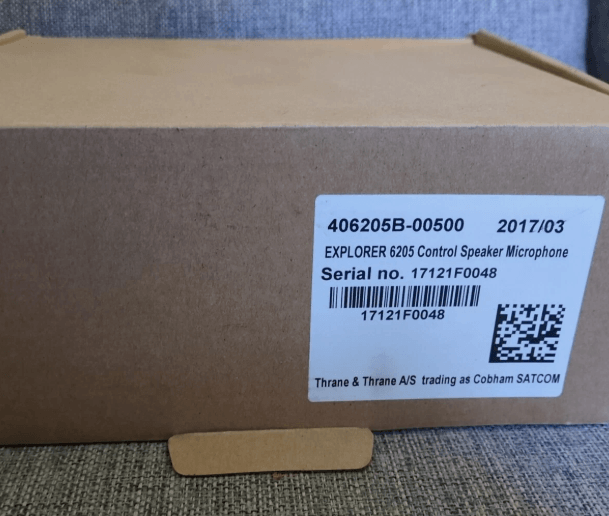

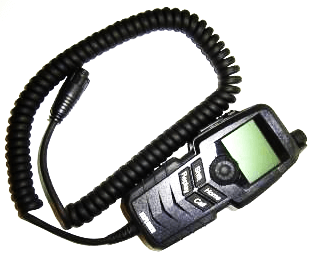

- 406205B EXPLORER 6205 CSM Handset, with fixed 1.5m curling cord

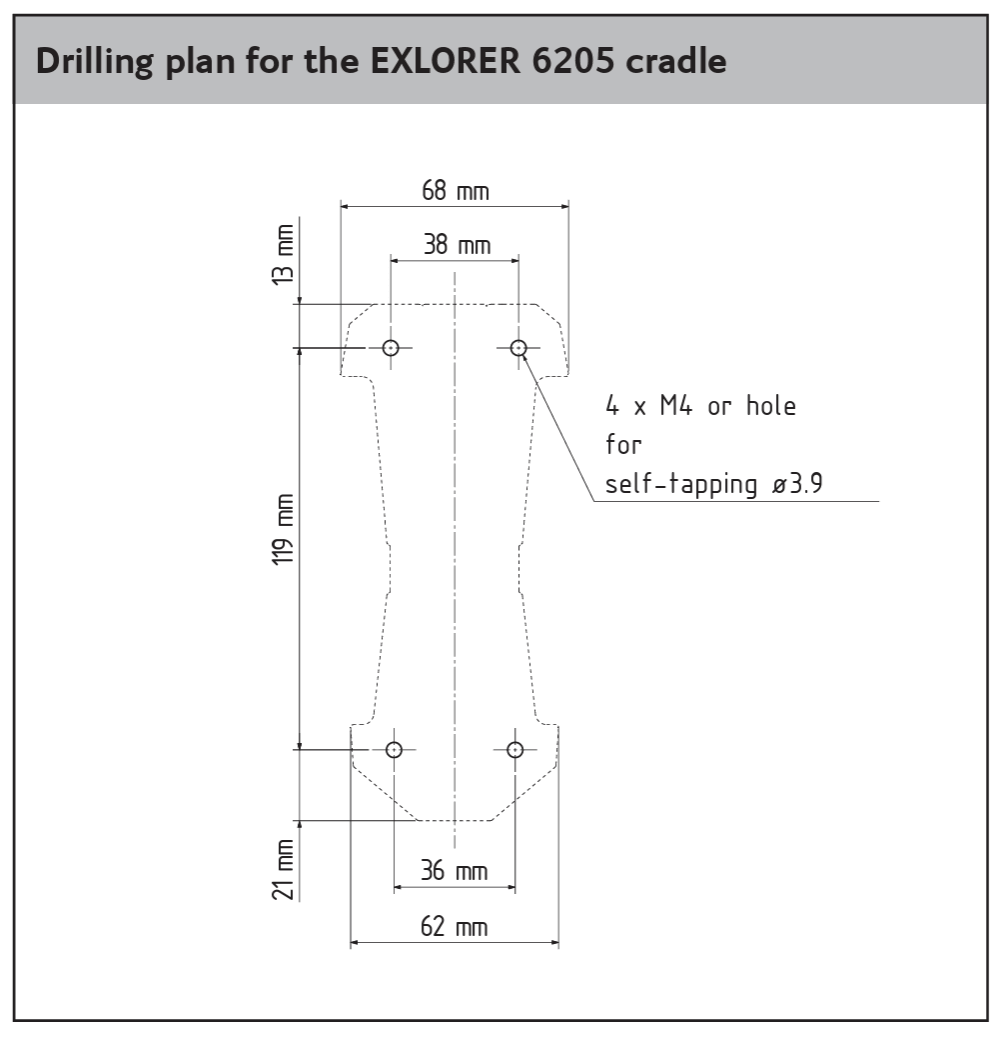

- Cradle for Wall/Desk Mounting, with 4x Retaining Screws
- 5m Extension Cable
- Quick Start Guide
Basic Specs
- Dimensions: Height: 173 mm x Width: 70 mm x Depth: 52 mm(including front selector wheel and cradle)
- Weight: 320g(0.7lb)
- Power Supply: via the PTT Terminal
Related Products – NOT included in this pack
- 403667-00500 EXPLORER Mobile Gateway 3 Terminal
- 650000-001 Cobham PRISM Managed Service
- 403723A-00500 EXPLORER 323 Terminal
- 403706A-050 EXPLORER Connection Box
User Interface
Handset (CSM): Power On/Off, PTT button, 4 control buttons, 40x30mm Display, Jogwheel selector, Dimmer (display backlight), and Distress button
This Handset Controls Enhanced Capabilities
EXPLORER Mobile Gateway solves many challenges faced by traditional LMR system operators:
- Coverage area can be extended by using satellite and existing cellular based networks
- Lowers expensive terrestrial infrastructure costs
- High availability to support critical communications
- Scalable from two to thousands of units
- Seamless switching between available satellite, cellular, and LAN connectivity ensures constant communications
- Compatibility with many different brands of land mobile radios
- Voice compression technologies are used to allow for the most efficient use of bandwidth across multiple transport mediums
- 256 bit AES-CTR encryption
Beyond Line-Of-Sight Communication
EXPLORER Mobile Gateway is an IP-based radio and data communications device that supports satellite/3G/LTE/LAN backhaul and Land Mobile Radio (LMR) integration to provide seamless switching between available networks in any situation. It is a cost effective system designed to expand and augment traditional LMR systems widely used in the Public Safety, Utility, Mining, and Oil & Gas sectors.
Vehicle installation of the system requires an on-the-move satellite terminal and the EXPLORER Mobile Gateway.
Up to two cellular modems can be connected to the EXPLORER Mobile Gateway, allowing for independent network connections.
The all important automatic routing functionality enables seamless switching between the available networks.
Cobham PRISM Service
The EXPLORER Mobile Gateway is managed and configured in the Cobham-managed PRISM Portal. The web-based portal ensures simple and easy configuration of any EXPLORER Mobile Gateway, no matter its location and with over-the-air updates to vehicles.
