406286A-00500 Sailor 6286 DGNSS Active Antenna, GPS, GLONASS, LW-Band
406286A-00500 Sailor 6286 DGNSS Active Antenna

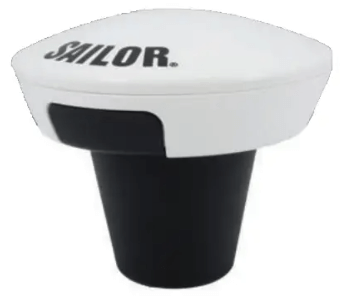

- The SAILOR 6286 DGNSS Antenna – Active is a robust, sealed and waterproof GPS and GLONASS antenna.
- This antenna also has an antenna for receiving differential corrections from radio beacon stations in the LW frequency band.
SAILOR 6286 DGNSS ANTENNA – ACTIVE
- Dimensions Ø: 142 mm, H: 53 mm
- Weight 0.57 kg
- Mounting Bracket mount on pipe, thread 1 1/4” x 11 TPI
- Equipment class Exposed, according to IEC 60945
- Antenna type Active patch antenna for GNSS combined with a H-Field antenna for beacons
- Frequency 1560 to 1608 MHz for GNSS 283.5 to 325 kHz for beacons
- Impedance Nominal 50 Ohm
- Polarization Circular right-hand for GNSS
- Coverage Hemispherical
- Selectivity 30 dB down at center ±42 MHz for GNSS
- Gain 25 dB
- Supply voltage 5 ±1 VDC
- Current consumption Approx. 50 mA
- Connector TNC female
- Cable Coax cable, <10 dB cable loss
- Operating temperature -40 °C to +55 °C
- Storage temperature -40 °C to +70 °C
