6301A-00500 Sailor 6301 Control Unit for DSC Class A Systems

6301A-00500 SAILOR 6301A Control Unit for DSC Class A Systems

SAILOR 6301 Control Unit is a replacement unit only- SAILOR 6201 Handset not included.

The SAILOR 6301 Control Unit DSC Class A is a modular and flexible MF/HF radio that can be customized to your specific needs for MF/HF communication on work boats, high seas fishing vessels and merchant vessels of all kinds.

It offers simplex and semi-duplex SSB radiotelephony in the maritime mobile frequency bands from 150 kHz to 30 MHz. Services include voice transmissions, watch function, DSC operations (Distress calls, position info, Distress relay and more) and AM Broadcast reception.

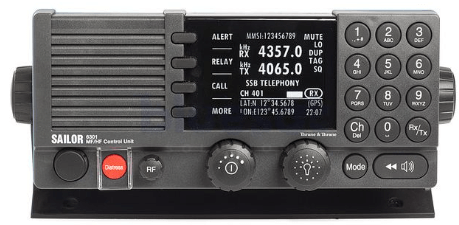

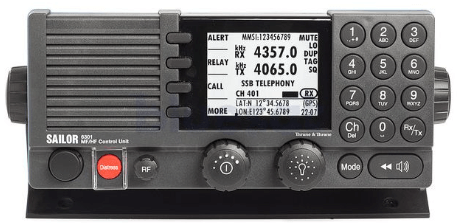

The large display shows Rx and Tx frequencies and status, MMSI number, position information, system and channel properties, including indicators for transmission power and received signal strength. It is easy to read from almost all angles and the display light can be adapted to dark environments.

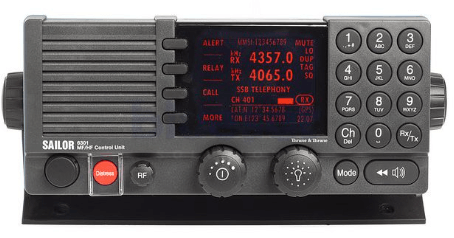

Red text is shown on a black background providing good visibility in low light conditions while protecting night vision. DSC operations are made using the four soft keys next to the display. The
MF/HF radio can replay the last 240 s of received voice. This is a useful feature to minimize misunderstandings and to record audio when the radio is unattended.

The SAILOR 6301 Control Unit has an Ethernet interface to connect to other equipment for control, monitoring and printing.

The SAILOR 6301 Control Unit is available as a basic MF DSC radio that can be upgraded with an HF DSC option and/or a telex option. Telex is sent using the SAILOR 6006 Message Terminal.

SAILOR 6301 Control Unit DSC Class A Features:

 Rugged and reliable design.
 Full power range on all ITU channels: 1.6 — 30 MHz for 150 W, 250 W and 500 W systems (Reduced power in the frequency range 1.6 —
4.0 MHz for 500 W according to legislation).
 Powerful transceiver (150, 250 or 500 W).
 Outdoor automatic antenna tuning unit.
 Radiotelex using the SAILOR 6006 Message Terminal
 Optionally 6 DSC Distress frequency watch keeping receiver.
 Intelligent scanning for Voice, DSC and radiotelex (optional).
 Ethernet with ThraneLINK.
 Compliant with GMDSS in sea areas A2, A3 and A4 (Wheelmark).
 Fulfills DSC specification ITU493-13.

Compatibility

• SAILOR 6310/A/B –  MF/HF DSC Class A 150W
• SAILOR 6311/A/B –  MF/HF 150W DSC Class A FCC
• SAILOR 6320/A/B – MF/HF 250W DSC Class A
• SAILOR 6350/A/B –  MF/HF 500W DSC Class A
• SAILOR System 6000A MF/HF
