406310B-00500 Sailor 6310B MF-HF 150W DSC Class A System, Basic
$17,031.30 Inc. GST
406310B-00500 SAILOR 6310B MF-HF 150W DSC Class A System, Basic
The new GMDSS-approved SAILOR 6300 MF/HF guarantees a constant secure link to the mainland from every corner of every ocean.
Designed for vessels operating in Sea Area 2 and beyond.
Incorporates the most advanced MF/HF technology, the SAILOR 6300 series MF/HF is a vital lifeline for all seafaring vessels
1 Channel watch receiver
Whats in the Box
Basic system including:

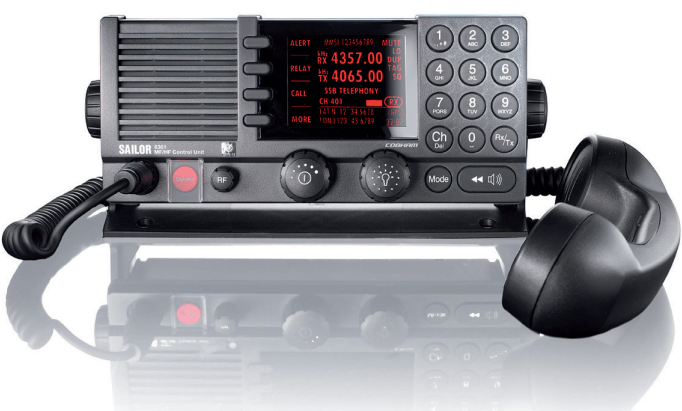

– SAILOR 6301 Control Unit DSC Class A
– 6m 12 POL CAN cable (CU-TU)
– SAILOR 6365 MF/HF 150W Transceiver Unit DSC Class A
– SAILOR 6384 Antenna Tuning Unit
Though designed to meet GMDSS requirements for professional mariners operating a wide variety of vessels Sailor 6310B MF/HF is a rugged, high-end communications system in its own right. It complies with the newest requirement – ITU493-13 – for MF/HF DSC Class A, part of the mandatory requirements for SOLAS vessels and many national GMDSS requirements.
The Thrane & Thrane 6310B MF/HF DSC is a modular and flexible MF/HF radio that can be customized to your specific needs for MF/HF communication on workboats, high seas fishing vessels and merchant vessels of all kinds operating in Sea Area 2 and beyond.
Thrane & Thrane 6310 MF/HF DSC 150W
Based on the same foundation of high reliability, ease of use and leading-edge functionality that has positioned SAILOR as the leading product in maritime communications, the SAILOR 6310B MF/HF DSC Class A offers much more than just a way to meet mandatory GMDSS requirements.
In addition to being part of the innovative SAILOR 6000 GMDSS series, it is an integral part of a vessels communication system and a crucial tool when in distress and rugged, reliable, easy to use communications are a must.
TT-00-406310A-00500
The SAILOR 6300 MF/HF offers enhanced functionality, a unique message replay capability (a first for an MF/HF radio), next-generation radiotelex software and the ability to connect to multiple control units.
Easy to use, install and maintain, the SAILOR 6300 MF/HF can be seamlessly connected to the entire SAILOR 6000 Series via ThraneLINK, eliminating the need for additional cabling or an external GPS.
SAILOR Replay – 240 seconds – First MF/HF to offer this feature
High quality graphical display – perfect night and day vision
6W internal loudspeaker for excellent sound quality
Improved, intuitive and easy to operate menu structure
Unique, next generation radiotelex software
Also available:
Multiple control units
150W-250W-500W versions
406310B-00500
Refer to the below attachments or go to www.cobham.com or www.thrane.com for full specifications.
Dimensions and weight:
• Transceiver unit (H/W/D) 445 mm / 390 mm / 127 mm (17.5″ / 15.4″ / 5″).
• Control unit (H/W/D) 105 mm / 240 mm / 100 mm (4.1″ / 9.5″ / 3.7″).
• Antenna tuning unit (H/W/D) 500 mm / 290 mm / 80 mm (19.7″ / 11.4″ / 3.1″).
• Handset (H/W/D) 226 mm / 62 mm / 75 mm (8.9″ / 2.4″ / 3.0″).
• Transceiver unit 19 kg (41.9 lbs).
• Control unit 3.3 kg (7.3 lbs).
• Antenna tuning unit 3.3 kg (7.3 lbs).
Frequencies:
• Receiver (Rx) 150 kHz – 30 MHz.
• Transmitter (Tx) 1605 kHz – 30 MHz (ITU marine bands).
• DSC watch receiver (Scanning) 2187.5 kHz, 4207.5 kHz, 6312.0 kHz, 8414.5 kHz, 12577.0 kHz.
• 16814.5 kHz.
• Aerial coupler 1.6 MHz – 27.5 MHz.
Power:</.strong>
• Power supply 24 V DC nominal.
• Power consumption Rx, 60W (approx. at 24V DC).
• Transmitter output power 150W PEP +/- 1.4 dBG into 50?voice.
• ACC connector 1 x ACC connector for Handset and Accessory Connection Box.
• AUX connector 1 x AUX connector for VDR, external speaker, alarm panel and GPS.
• Ethernet connector 1 x RJ-45 LAN connector for ThraneLINK, printer, and service/config.
• TU-CU BUS 1 x TU-CU BUS for interconnection between transceiver and control unit.
Brand
Sailor
TT-00-406310B-00500
This factory package includes:
Basic system including:
– SAILOR 6301 Control Unit DSC Class A
– 6m 12 POL CAN cable (CU-TU)
– SAILOR 6360 MF/HF 150W Transceiver Unit DSC Class A
– SAILOR 6381 Antenna Tuning Unit
