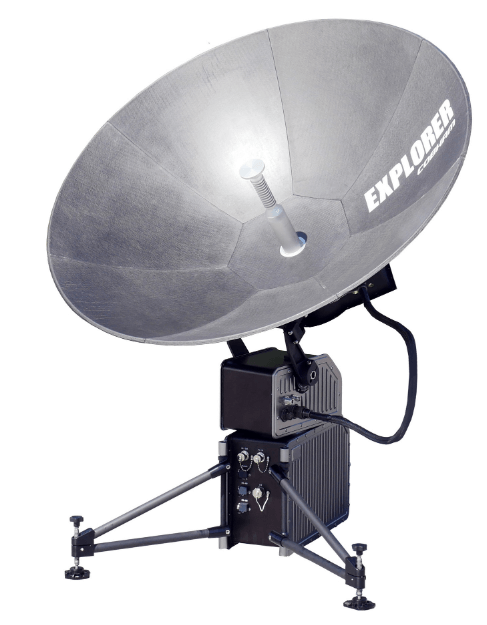

406627A-50314 Explorer 6100 VSAT System, Ku-band 20W Buc, 1m Stabilized Auto-Acquire Fly-Away Portable

406627A-50314 Explorer 6100 VSAT System, Ku-band 20W Buc, 1m Stabilized Auto-Acquire Fly-Away Portable

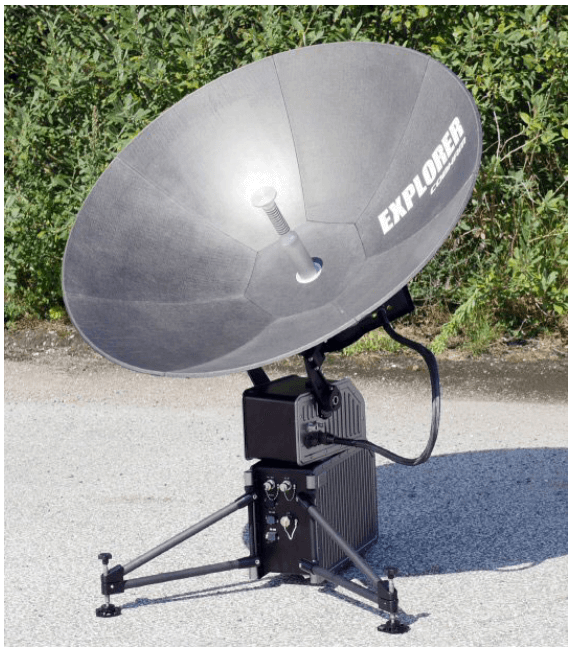

Online With the Push of a Button EXPLORER 6100 Ku is a lightweight, rugged and highly portable 1m Auto-Acquire Fly-Away VSAT system.

Its user friendly design allows operators with little satellite experience to access ku-band satellite services within minutes. No pointing is needed with EXPLORER 6100 Ku; it automatically finds the satellite in a matter of minutes, providing quick access even in remote locations.

This Pack Includes:

• EXPLORER 6000 Base Unit(IP65-Rated with External Modem Interface)
• Ku RF Package, with 20 Watt extended range BUC
• 1m reflector Package, with 7 piece Carbon Fiber Reflector
• Replaceable Ku-band Feed Horn
• Dual-band LNB for International Use
• 12” Waveguide
• DC Power input cable, 2.5m in length(open leads)
• Built-in WiFi and a Web-based User Interface for Easy Configuration
• 2 Case Pack-up, Airline checkable, being Two transit cases containing the VSAT terminal: Case# 1of2 with RF assembly and three reflector petals (left), and Case# 2of2 with Base Unit, antenna positioner and four reflector petals (right)

Note: Total complement within this package you will find:• Base Unit with antenna positioner • RF package • One Ku feed horn • One set of reflector petals (7 pcs. in two separate bags) for 100 cm reflector • One DC input cable 2.5 m with open leads • RF cables: Transmit (Red, Tx) & Receive (Blue, Rx) and Pol motor encoder cable • Quick guide • Safety summary page

Optional Accessories available to buy, but NOT all are included:

• 403160P Explorer 6000 Power Supply – 48 VDC, 320 Watt, – Weight: 2.4 kg / 5.3 lbs
• 403160P-010 Explorer 6000 Power Supply Extension cable – 10m extension cable with Neutrik connectors
• 406627A-070 Explorer 3100 Ku/ 6100 Ku, Field Replaceable Feed Horn
• 406627A-014 Explorer 6100 Ku Waveguide – 12” Waveguide for Explorer 6100 Ku (No BUC)

Explorer 6100 VSAT Flyaway System Features

• 1m Diameter, 7-Piece Carbon Fiber Reflector
• Advanced Dynamic Pointing Correction technology
• IP65 rated
• WLAN Access Point and LAN interface
• LCD Display and Web-based User Interface for Easy PC and Smartphone Configuration
• Fast Assembly with Less than 5 Minutes Setup Time
• 2ce Case Solution, Airline Checkable
• Replaceable Ku-Band Feed Horn
• Available in 8W BUC, 20W BUC and No Buc Options
• Eutelsat Characterized

Uninterrupted Communication

The new addition to the EXPLORER portfolio provides you with uninterrupted connectivity services thanks to Cobham’s unique Dynamic Pointing Correction technology.

In the field, Dynamic Pointing Correction ensures that the antenna stays locked on to the satellite, even in strong wind or if moved. Using lessons learned from Cobham SATCOM’s maritime stabilized VSAT antennas, and proven on land with the EXPLORER 8000 Series, the technology sets EXPLORER 6100 apart from other Fly-Away antennas in its class.

Reliable EXPLORER EXPLORER 6100 Ku is developed completely in-house by Cobham SATCOM. It features genuine EXPLORER design, which is already established and proven with Cobham SATCOM’s highly regarded EXPLORER BGAN and VSAT terminals. Its robust design and system versatility ensures high-quality connectivity, which means you can count on EXPLORER 6100 Ku to provide you with vital communication whatever the conditions.

A True Portable Fly-Away

EXPLORER 6100 Ku is a highly portable Fly-Away VSAT system. It comes in two airline checkable Peli Air cases with custom foam for secure transportation. A rugged and lightweight hard case solution, easy to carry along and quick to deploy. Setting up the terminal takes less than 5 minutes and combined with the fast automated acquisition, the EXPLORER 6100 Ku sets new standards for deploying Fly-Away VSAT systems in the field
