407164A-00550 Explorer 3075GX VSAT System, 5W BUC, 75cm Auto-Acquire, Fly-Away Portable

407164A-00550 Explorer 3075GX VSAT System, 5W BUC, 75cm Auto-Acquire, Fly-Away Portable

You will now have the reassurance of access to one of the fastest and most reliable networks available.

With an assembly time of approximately 5 minutes and featuring one button auto-acquire technology personnel can be assured of uninterrupted broadband connectivity within minutes – and because the EXPLORER 3075GX can operate in wind speeds up to 72km/h(anchored) and temperatures of -33° to +55°C, connection will be maintained when it’s need most.

This Pack Includes:

• The cases contain the following items: • Tripod and electronics enclosure • RF feed assembly • Transmit (Red, Tx) & Receive (Blue, Rx) RF cables • BUC power cable (Gray) • Power cable • Quick guide • Safety summary page

Optional Accessories available to buy, but NOT all are included:

• TS3075230-100 EXPLORER 3075GX to KA-SAT Conversion Kit

Key Features:

• Easy to set up and use
• 4pce 0.75 m Carbon Fiber Reflector
• IP65-compliant
• WLAN Access Point and LAN interface
• LCD Display and Web-Based User Interface
• 2pce Case Solution, Airline Checkable
• Modular design – switch feed assembly and modem to access EutelSat KA-SAT

EXPLORER 3075GX

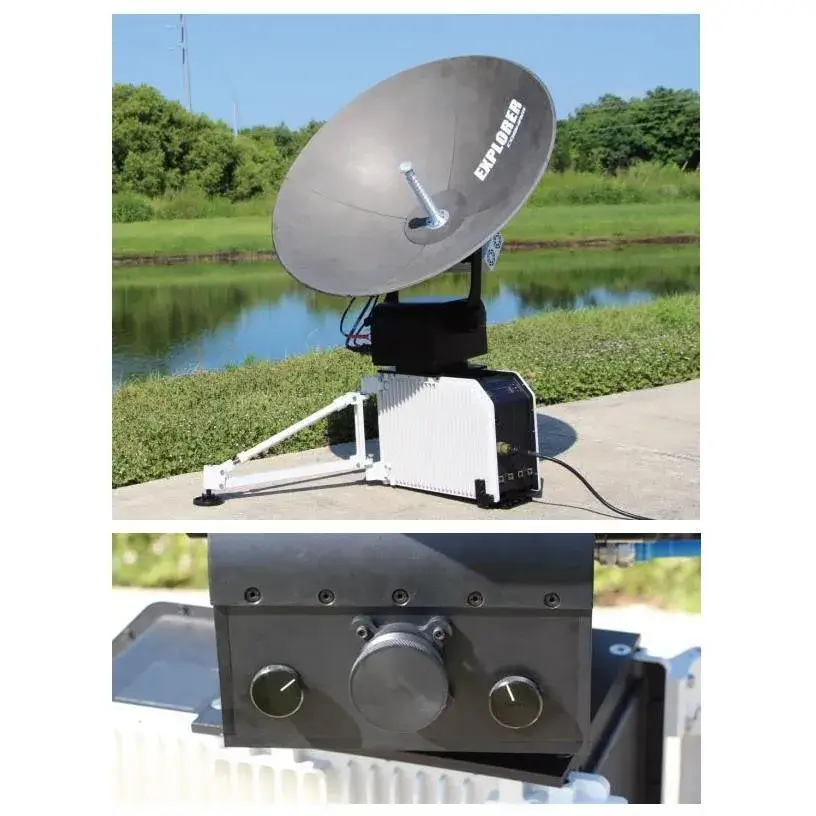

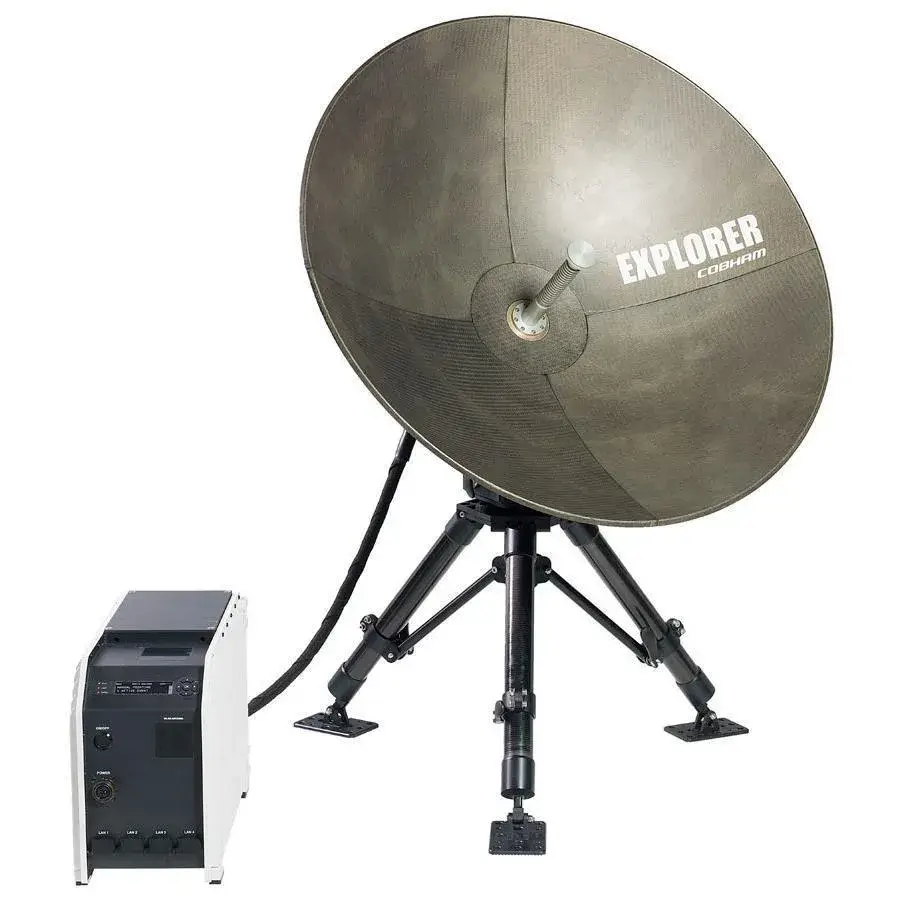

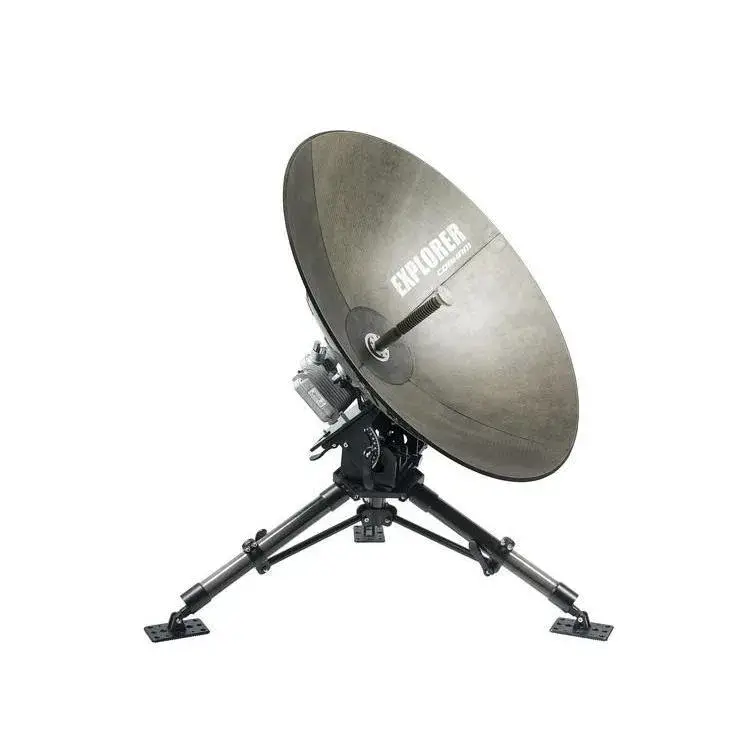

This Cobham EXPLORER manual point Fly-Away system is lightweight, rugged and portable. The terminal includes a fully integrated iDirect Core Module and is configured specifically for operation on the Inmarsat Global Xpress® (GX) Ka-band network. Its user friendly design allows operators with little satellite experience to access GX services within minutes. EXPLORER 3075GX comes in two hard cases both below 23kg and is thereby easy airline checkable.

Versatile system

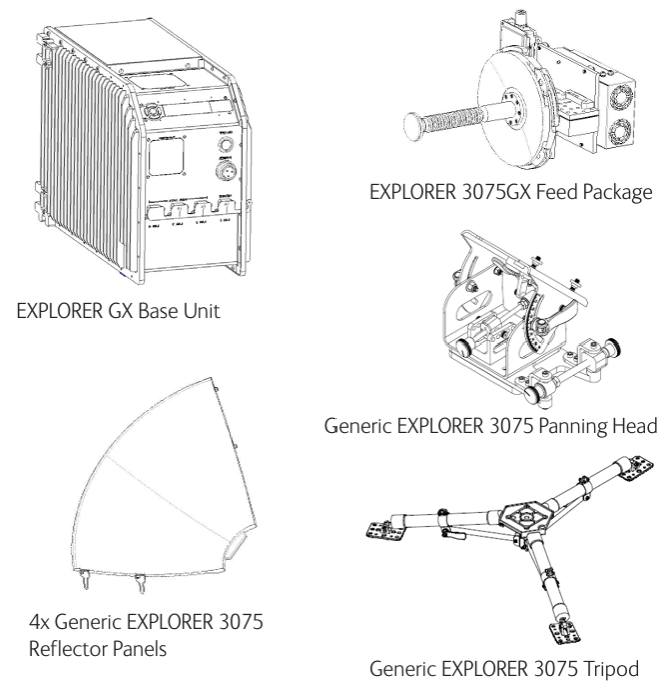

The EXPLORER 3075GX system includes a separate GX base and stands apart from other GX antennas as it offers the possibility of switching between ka-band networks. By simply swapping the RF feed assembly and the modem, EXPLORER 3075GX can switch between Inmarsat’s GX services and Eutelsat KA-SAT services. The tripod, the manual panning head and the reflector panels are shared components.

Reliable EXPLORER

EXPLORER 3075GX is developed completely in-house by Cobham SATCOM. It features genuine EXPLORER design, which is already established and proven with Cobham SATCOM’s highly regarded EXPLORER BGAN and VSAT terminals. Its unique design and system versatility ensures high-quality connectivity, which means you can count on EXPLORER 3075GX to provide you with vital communication whatever the conditions.
