407224A Sailor TT-7224A Control Unit, for the 7222 VHF DSC Class A System
Sailor 7222 is GMDSS Compliant Exceeding standards set by IMO regulation for GMDSS Class A VHF
$3,660.80 Inc. GST
407224A Sailor TT-7224A Control Unit, for the 7222 VHF DSC Class A System
Compatibility: This is the Control Unit for the Sailor 7222 VHF System only
Compliance: Exceeds GMDSS standards set by IMO regulation for GMDSS Class A VHF

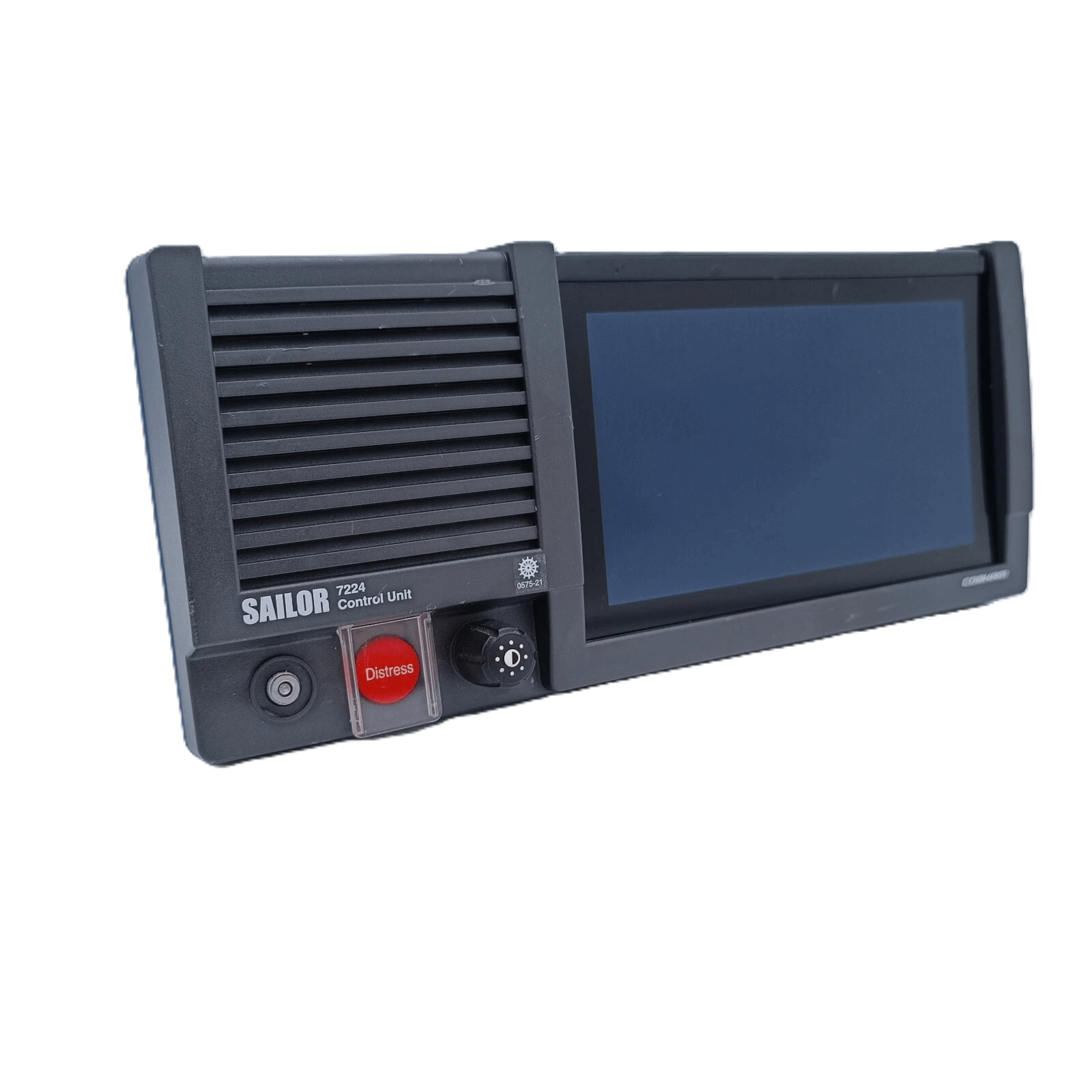

The VHF 7222 is a simplex / semi duplex VHF radio, and so the control unit is obviously in charge of controlling the system and contains user interface.
The device can be easily mounted as a desktop, overhead or flush mounted.
407224A This Pack Includes:
- 7224 Control Unit
- 37-130130 DC Power Cable 2.5m with Cable Relief Kit and
- Installation Guide
Note: No other/additional accessories or parts are included.
Control Unit Mounting:
- Please keep in mind that for the Control Unit, the compass safe distance is 0.85m.
- The U-Mount Bracket Kit (407224A-930) is available as an accessory from Cobham SATCOM.
- You can mount the Control Unit to a flat surface, e.g. an instrument panel. The Flush Mount Bracket Kit (407224A-950) is available as an accessory from Cobham SATCOM.
Power Supply
The unit requires a power supply of +24 VDC However the voltage fluctuations achieved, should be between -10% and +30%.
BAM specifications of 7224A Control Unit: The control unit’s BAM operation is based on:
IEC 61097-3
IEC 62923-1
IEC 62923-2
And BAM interface is based on IEC 61162-1 ACN, ALC, ALF, ARC, HBT.
INFO REFERENCE FOR THE 7222 SYSTEM BELOW**********************************
407222A-00500 SAILOR 7222 VHF DSC Class A
Sailor 7222 is GMDSS Compliant Exceeding standards set by IMO regulation for GMDSS Class A VHF
This Pack Includes:
- TT-7224A SAILOR 7224 VHF Control Unit
- 406201A-00500 SAILOR 6201 Handset and Cradle
- TT-7226A SAILOR 7226 VHF Transceiver Unit and
- 37-130130 Power Cable (2.5m)
Note 1: Mounting accessories MUST be ordered separately
Note 2: Connection between CU and TU must be made using a shielded LAN cable – up to 50m. Not included.
Highly resilient and easy to operate in any situation, the SAILOR 7222 VHF DSC Class A is the most advanced SAILOR radio for demanding users operating within the SOLAS maritime environment. As a next generation solution at the forefront of radio technology, it unlocks new performance gains that improve critical safety and regular operational communication.
Technology Updated.
GMDSS Compliant Exceeding standards set by IMO regulation for GMDSS Class A VHF, the August 2021 introduced Bridge Alert Management IMO resolution MSC.302(87), as well as IEC 62923-
1 & IEC 62923-2, the SAILOR 7222 VHF DSC Class A is a robust platform for when clear communication could make the difference between a non-event or a major incident.
Highly resilient and easy to operate in any situation, the SAILOR 7222 VHF DSC Class A is the most advanced SAILOR radio for demanding users operating within the SOLAS maritime environment.
As a next generation solution at the forefront of radio technology, it unlocks new performance gains that improve critical safety and regular operational communication.
Performance
Exceeding standards set by IMO regulation for GMDSS Class A VHF, the August 2021 introduced Bridge Alert Management (BAM) IMO resolution MSC.302(87), as well as IEC 62923-1 & IEC 62923-2, the SAILOR 7222 VHF DSC Class A the most reliable radio platform delivering clear communications that could make the difference between a non-event or a major incident.

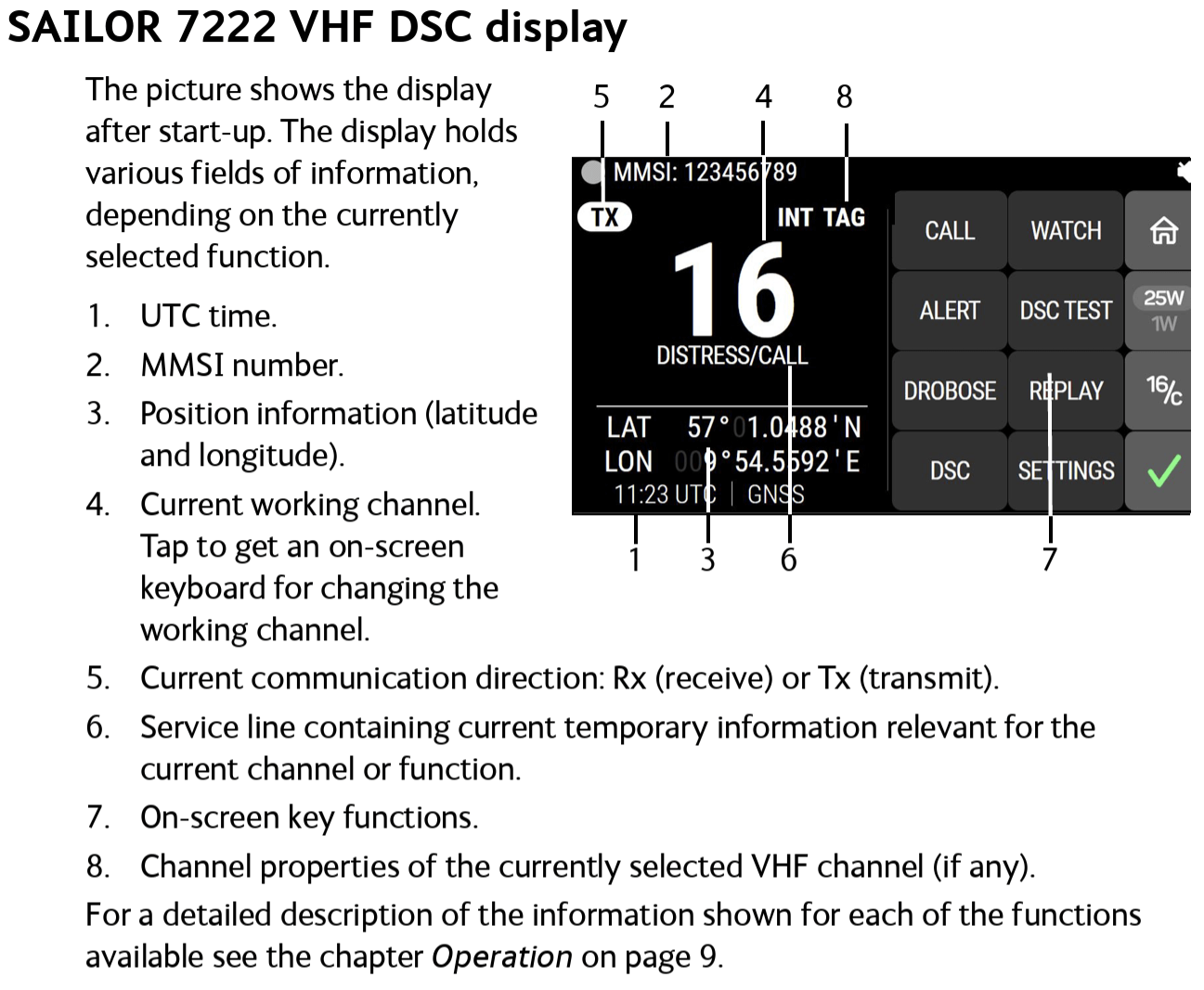

Building on the established technology leadership of former SAILOR VHF DSC radios, the SAILOR 7222 VHF DSC Class A features updated hardware and software to deliver even more reliability. It is designed with a new and innovative, user-friendly 5.5” TFT touch-screen interface that further streamlines workflows and optimizes operational safety and efficiency.
Installation
SAILOR 7222 VHF DSC Class A VHF is quick and easy to install as a standalone device, or as a core component of a SAILOR GMDSS console. Advanced networking functionality also significantly reduces the installation and service burden, when deployed as part of a fully compliant solution, with other compatible SAILOR products, including mini-C, MF/HF, NAVTEX, Portable VHF and AIS.
System Configuration Example
The SAILOR 7222 VHF DSC can be customised with a range of accessories to suit your installation. The standard system consists of :
- SAILOR 7224 VHF DSC Control Unit, DC Power Cable 2.5m with Relief Kit and Installation Guide
- SAILOR 6201 Handset, Cradle and Screw Kit
- SAILOR 7226 VHF Transceiver Unit, Screw Kit and Installation Guide
With SAILOR connection boxes the VHF radio connects easily to external equipment like a BAM system, additional handsets, water proof hand microphones, control speaker microphone, alarm panel or external speaker. The Ethernet interface connects the Control Unit with the Transceiver Unit, and enables the VHF radio to be connected to other units in a local network. Instead of the touch screen on the Control Unit, you can also connect a PC or other device with a browser for setup and control via the web interface.

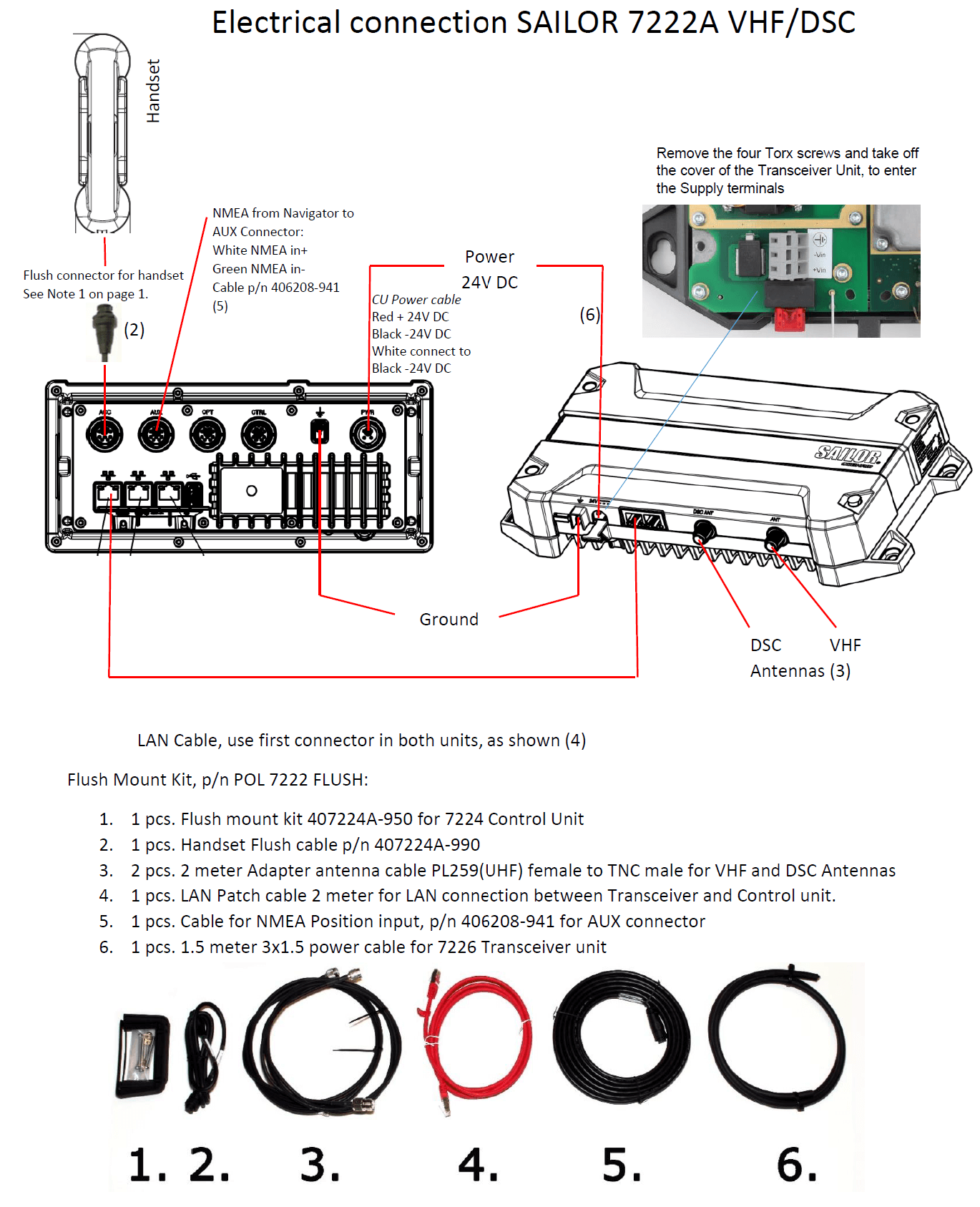

The following illustration is one example of a system configuration:
Providing clear communication at all times, the SAILOR 7222 VHF DSC Class A VHF is far more than just a means of meeting regulations. It is a vital tool for daily operations with features and ruggedness ensuing for diverse users on any vessel, from trawlers and workboats to merchant ships and specialist offshore vessels.
TT-00-406210A-00500
The robust, solid qualities of the SAILOR 6200 VHF series are apparent immediately.
A large display with red backlight protects the user’s night vision and makes it easy to read the intuitive menu.
The tactile feel of the buttons and wheelknobs makes the VHFs very easier to operate.
The powerful 6W built in loudspeaker ensures good sound quality, even in noisy environments.
Play it Again
The SAILOR 6200 VHF series feature the popular SAILOR Replay function, which constantly records the latest incoming messages.
This function allows the user to clarify received information and ensures that it is not lost or ignored, if the user was occupied in other operations.
The SAILOR 6200 VHF series feature the popular SAILOR Replay function, which constantly records the latest incoming messages.
This function allows the user to clarify received information and ensures that it is not lost or ignored, if the user was occupied in other operations.
Flexible Installation
The SAILOR 6210 VHF and SAILOR 6215 VHF DSC Class D offer a very flexible installation.
The waterproof design, covering the entire radio including hand microphone allows for open installations.
The SAILOR 6200 VHFs can be operated by two extra handsets, hand microphones or one control speaker microphone.
All are detachable and can be connected on both the front and the rear of the VHF.
The VHF’s also allow for interfaces to external loudspeaker, loudhailer with talkback and foghorn and additional equipment that can enable even more features.
With the SAILOR 6210 VHF and SAILOR 6215 VHF DSC Class D the new generation of SAILOR VHF is here.
They are built on decades of history as the professional user’s choice.
Designed with the user in mind, keeping focus on high value, performance, ease-of-use, connectivity functionality and build quality the SAILOR 6200 VHF series continues the long tradition of SAILOR VHF.
7226 Transceiver Unit – SPECIFICATIONS
Weight 1.5kg (3.3lbs)
Dimensions Height: Outer dimension 161 mm Width: Outer dimension 306 mm Depth: Outer dimension 51 mm
Operating temperature-15°C to 55°C (5°F to 131°F)
Storage temperature-25°C to 70°C (-13°F to 158°F)
Ingress Protection IP20 Power supply 24VDC +30%/-10%
Power consumption (typical) Rx operative: 8W Tx 25 W operative: 65W Tx 1 W operative: 18W
Heat dissipation (typical) Rx operative: 8W Tx 25 W operative: 40W Tx 1 W operative: 17W RX/TX ant. Input/output 50 ohm @ TX voice/TX DSC & RX voice DSC ant. Input 50 ohm @ RX DSC LAN 2 LAN ports Category 6 STP
Frequency range Voice: 156.000MHz—164.000MHz DSC: 156.525 MHz Channel spacing 25kHz, all international maritime channels Number of P channels
The radio may be programmed with up to 100 private channels in all channel modes.
Modulation 16K0G3E, 16KOG2B (DSC)
Transmitter RF output power High: 25W +0dB / – 1.5dB Low: 1W +0dB / – 1.5dB Frequency error +/- 3ppm Adjacent channel power Below 80 dB Conducted spurious emission Below 0.25mW Distortion Below 3% S/N ratio Better than 46dB Receiver @ voice Sensitivity < -119dBm typically @ 20dB SINAD CCITT weighted LF power Built-in loudspeaker: 6W (at 5kHz dev./1kHz tone) External loudspeaker: 6W / 8Ohm Distortion Below 5% Spurious emissions Below 2nW Spurious response rejection 80dB
Intermodulation response 76dB Co-channel rejection Better than -10dB Adjacent channel selectivity 80dB Blocking response Better than 100dBV @ ±1MHz Receiver @ DSC Sensitivity-117dBm Adjacent channel selectivity Below 80dB Intermodulation response Better than 70dBV Blocking response Better than 100dBV
7224 Control Unit – SPECIFICATIONS
Weight 1.0kg (2.2lbs) Dimensions Height: Outer dimension 107 mm, hole height for flush mount 89 mm Width: Outer dimension 241 mm, hole width for flush mount 227 mm Depth: Outer dimension from front of knobs 104 mm, depth for flush mount 94 mm Operating temperature-15°C to 55°C (5°F to 131°F) Storage temperature-25°C to 70°C (-13°F to 158°F)

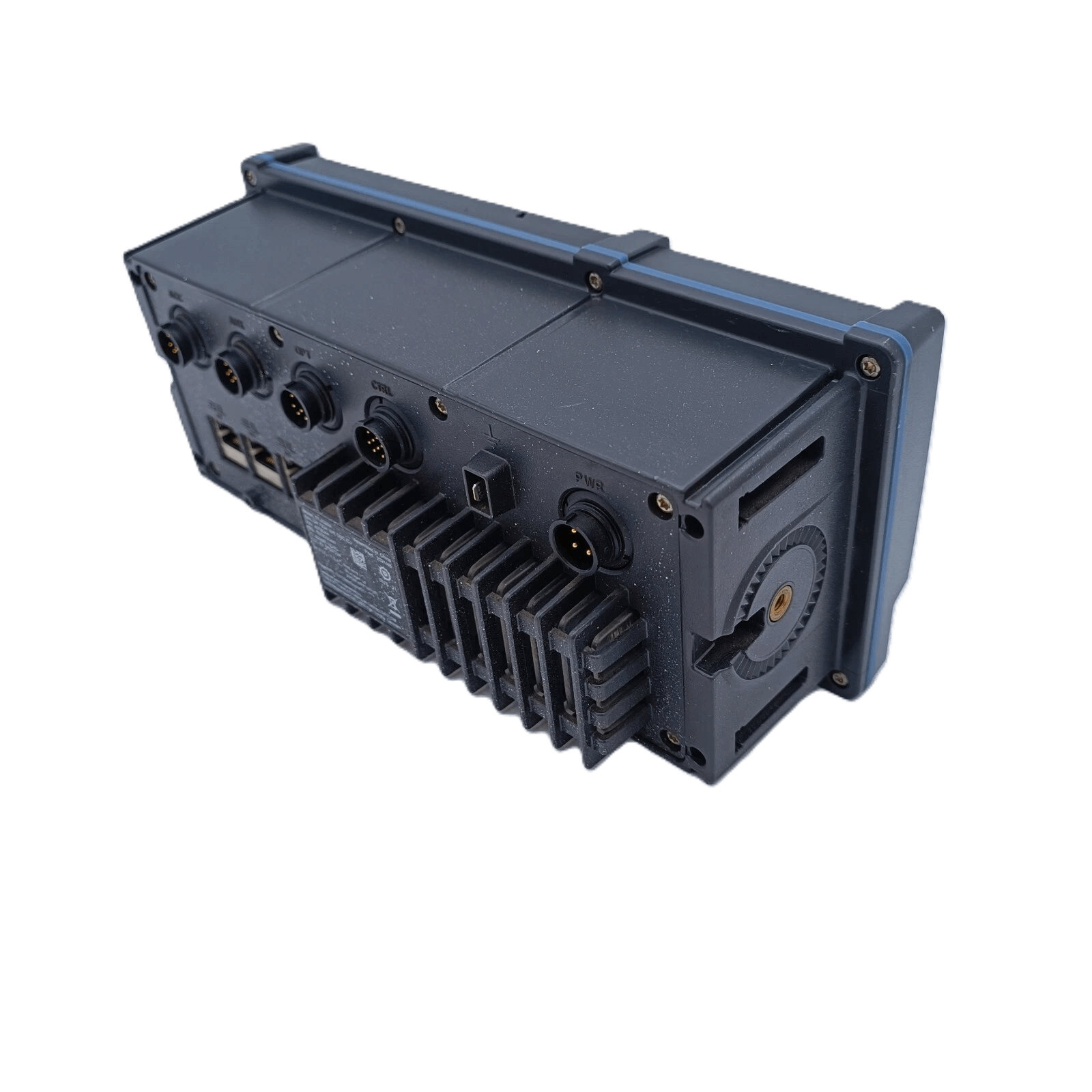

Ingress Protection IP54 when flush-mounted (Estimated, only front exposed) IP20 for other installation (whole unit exposed) Power supply +24 V DC nom. (-10% / +30%) Power consumption 10W @ 24VDC standby 33W @ 24VDC max Heat dissipation 8.5 to 15W Display 5.5” TFT with capacitive multi touch – 350 cd/m2. (e.g. 800×600, 1024×768) – 40k hours to half brightness Speaker Internal speaker – Max audio output power: 6W (internal LS @ 5 kHz deviation/1kHz) LAN 2 LAN ports supporting RSTP and 10/100 Mbit 1 LAN port not supporting RSTP USB USB 2.0 CTRL Port Supporting up to four SAILOR 6204 ACC Port Supporting Handset & Hand Microphone. NMEA for GNSS and AIS AUX Port Support for VDR, Alarm I/O, GNSS, AUX OC and Ext. Speaker. Max audio output power: 6W (external LS @ 5 kHz deviation/1kHz) OPT Port Supporting NMEA RX and TX for BAM support
General DSC – SPECIFICATIONS
DSC operation DSC protocol According to:- ITU-R M.493.15- ETSI EN 300 338-1- ETSI EN 300 338-2 According to Rec. ITU-R M.493-13 – Class A, IEC 61097-3 and IEC 61097-8 Navigator interface Modulation According to IEC 61162-1 GLL, RMC, ZDA, GGA, VTG, GNS 1700 Hz ± 400 Hz. 1200 baud
NMEA – SPECIFICATIONS
Rx sentences ACN, HBT, GGA, GLL, GNS RMC, ZDA. Tx sentences ALC, ALF, ARC, HBT. Talker ID CV Supported standards IEC 61162-1, 2016 Edition 5 Baud rate 4800 Electrical Isolation 1000 VDC Load of each input Max. 2 mA Input impedance 100 Ohm Max number of listeners 20 listeners/each 2 mA/ >60 Ohm Tx interval Default 30 seconds for HBT
