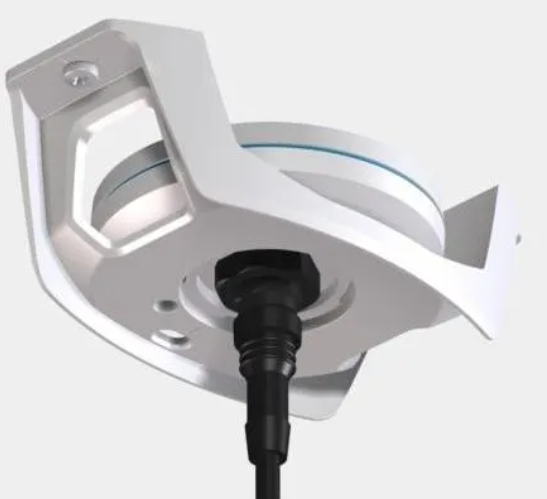

51-100233 Lars Thrane LT-300 GNSS, Roof Mount only
The LT-300 GNSS receiver meets all standards and certification requirements needed for worldwide maritime navigation equipment.
$130.90 Inc. GST
51-100233 Lars Thrane LT-300 GNSS, Roof Mount only
NOTE: This pack includes the Roof Mount ONLY
INFORMATION – LT-300
The LT-300 Global Navigation Satellite System (GNSS) receiver is a maritime navigation product from Lars Thrane A/S. The LT-300 GNSS/GPS receiver is designed for the leisure as well as the professional maritime markets.
The LT-300 GNSS receiver meets all standards and certification requirements needed for worldwide maritime navigation equipment.
Key Features:
- High-performance GNSS receiver with hot start capability
- UTC time and date, position, satellite information, ground speed, course over ground, and magnetic variation
- 72-ch. GNSS (GPS/GLONASS/BeiDou) satellite receiver with SBAS correction
- Simultaneously NMEA 0183 and NMEA 2000
- Configurable NMEA 0183 sentences (enable/disable, talker ID, output rate)
- Configurable NMEA 2000 termination resistor (open or terminated)
- Easy configurable NMEA 0183 data rate (4800 or 38400 baud)
- Each unit is functional tested prior to shipment
- Worldwide maritime certification
PERFORMANCE
The LT-300 GNSS receiver is capable of providing positions with an accuracy better than 2 meters.
The GNSS receiver outputs navigation data (up to 10 Hz): UTC time and date, position, course over ground, ground speed, GNSS satellite information and magnetic variation, in order to give your vessel smooth navigation capabilities. The 72-channel GNSS receiver benefits from advanced technologies such as:
- Receive and track multiple satellite systems (GPS & GLONASS, GPS & BeiDou, or GPS)
- Support for Satellite-Based Augmentation System (SBAS): EGNOS, WAAS, and MSAS
The LT-300 GNSS receiver is designed and built for the extremely demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).
INSTALLATION & NAVIGATION
The LT-300 GNSS receiver is easy to mount on a 1” pole (optional installation: roof-mount) with a single cable supporting NMEA 0183, NMEA 2000, and power.
The LT-300 GNSS receiver can be configured to either 4800 or 38400 baud (NMEA 0183), and open or short termination (NMEA 2000). An external PC installation and service software is available for optional configuration and maintenance of the LT-300 GNSS receiver.
More than 40 years of experience have been put into the design and construction of the advanced LT-300 GNSS receiver, with an exceptional performance and specification level.
INCLUDES:
- LT-300 GNSS P/N: 51-100142
- Pole Mount P/N: 91-100234
- Roof mount P/N: 91-100233
- Cable, 10m, Multi 8-pin Simple-Cut (M) P/N: 91-100172
- Screw-in Conn. NMEA 2000 Micro-C (M) P/N: 91-100174
- Quick Installation Guide P/N: 97-100230
- Safety Instruction Sheet P/N: 97-100450
- Unit Test Sheet P/N: 46-100381
K
LT-300 GLOBAL NAVIGATION SATELLITE SYSTEM
Certification and standards CE, IEC 60945, IEC 60950, EN 300 440
FCC, IC, RCM, RoHS
NMEA 0183, NMEA 2000
Equipment class Protected, according to IEC 60945
Weight, with pole mount 153 g (0.34 lbs)
Weight, with roof mount 148 g (0.33 lbs)
Dimensions, with pole mount 128.0 x Ø 81.6 mm
(5.04 x Ø 3.21 in)

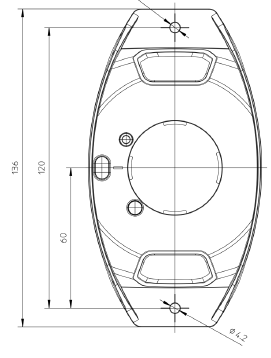

Dimensions, with roof mount 81.6 x 136.0 x 45.2 mm
(3.21 x 5.35 x 1.78 in)
Temperature, operational (ambient) -40°C to +55°C (-40°F to +131°F)
Temperature, storage (ambient) -40°C to +85°C (-40°F to +185°F)
Vibration, operational IEC 60945 (sine) & Proprietary
Maritime Random profile (240 h)
Vibration, survival Properitary Maritime Random
profile (100 h)
Vibration, shock Proprietary Maritime profile
(60 g pk, 11 ms)
Waterproof rating IP67
Humidity 95% non-condensing @ 40°C
Wind, operational 80 knots (93 MPH)
Wind, survival 110 knots (127 MPH)
Ice, survival 25 mm (1 in)
Solar radiation 1120 W/m2
Communication interface 8-pin female connector for NMEA
0183, NMEA 2000 and power
Input voltage 9-40 VDC
Power consumption < 1 W (@ 12 VDC)
Load Equivalent Number (LEN) 2 (NMEA 2000)
Compass safe distance standard 0.3 m (1 ft)
Compass safe distance steering 0.3 m (1 ft)
Mounting, pole mount 25.4 mm (1 in)
Warranty 2 year
Maintenence None
