51-100294 Lars Thrane LT-500 AHRS Electronic Compass

51-100142 Lars Thrane LT-500 AHRS Electronic Compass

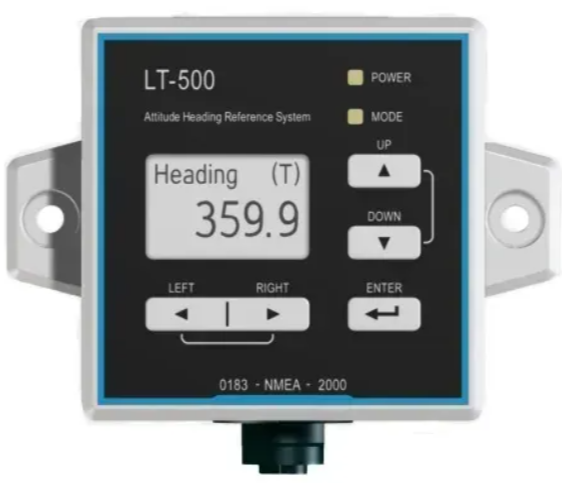

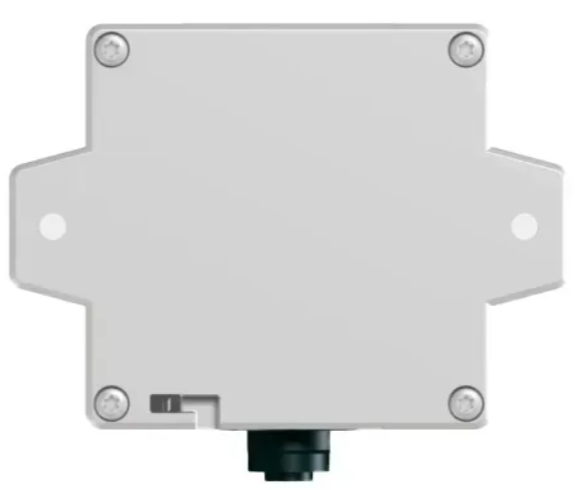

The LT-500 Attitude Heading Reference System (AHRS) unit is a maritime navigation electronic compass / heading sensor from Lars Thrane A/S.

Designed for the leisure as well as the professional maritime markets, the LT-500 unit meets all standards and certification requirements needed for worldwide maritime navigation equipment.

• LT-500 AHRS P/N: 51-100294
• Cable, 10m Multi 8-pin Simple-Cut (M) P/N: 91-100172
• Screw-in Conn. NMEA 2000 Micro-C (M) P/N: 91-100174
• Quick Installation Guide P/N: 97-100226
• Safety Instruction Sheet P/N: 97-100459
• Unit Test Sheet P/N: 46-100376

PERFORMANCE
The LT-500 AHRS unit is a small, compact, and very advanced unit with 11 precision sensors. With the use of sensor-fusion and Kalman filtering, the LT-500 AHRS unit outputs: true heading1, roll, pitch, air pressure, and temperature real-time, with high precision and resolution. The LT-500 AHRS unit includes advanced technologies such as:

• Kalman filtering
• Calculation of magnetic variation based on the World Magnetic Model (WMM)
• Compensation of soft and hard iron (deviation)
• Built-in magnetometer calibration algorithm

The LT-500 AHRS unit is designed and built for the demanding and rough environment at sea and with an operational temperature range from -25⁰C to +55⁰C (-13⁰F to +131⁰F).

Key Features:

• Attitude Heading Reference System with 11 precision sensors
• True heading, magnetic heading, deviation, variation, roll, pitch, air pressure, and temperature

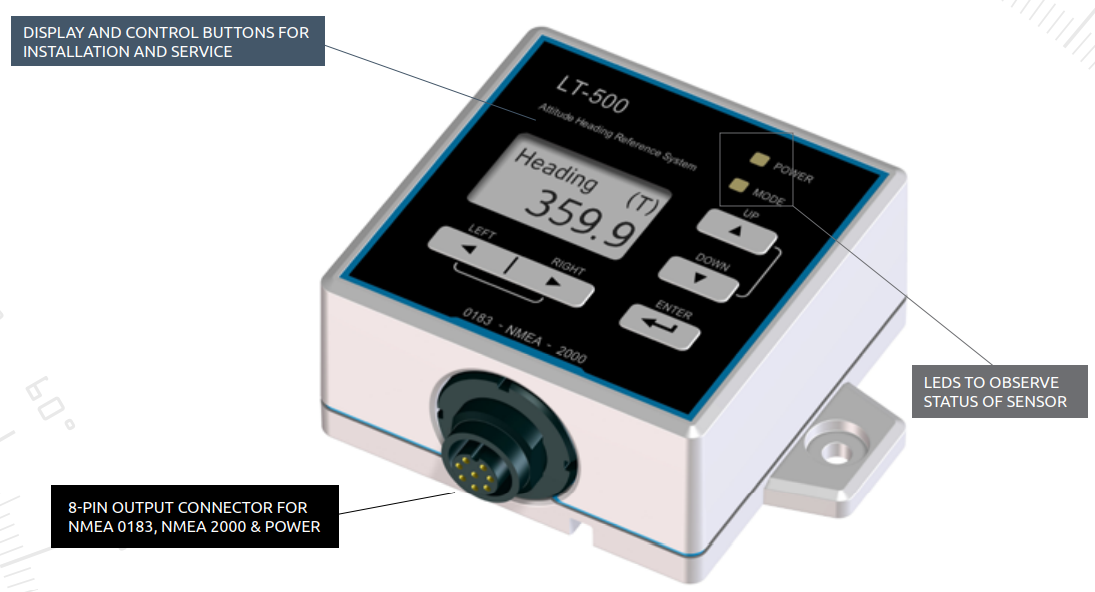

• Display and control buttons for installation and service
• Simultaneously NMEA 0183 and NMEA 2000 data
• Configurable NMEA 0183 sentences (enable/disable, talker ID, output rate)
• Easy configurable NMEA 2000 termination resistor (open or terminated)
• Easy configurable NMEA 0183 data rate (4800 or 38400 baud)
• Mount in any orientation without compromising the high performance
• Each unit is factory calibrated and functional tested over temperature prior to shipment
• Worldwide maritime certification

INSTALLATION & NAVIGATION

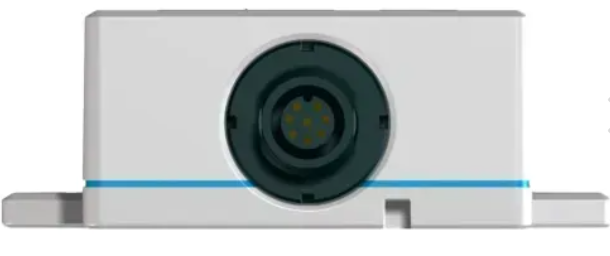

The LT-500 AHRS unit is easy to mount and supports NMEA 0183, NMEA 2000, and power on a single cable. Without compromising the high performance, the LT-500 AHRS unit may be installed in any position. The LT-500 AHRS units has a built-in user interface (display and control buttons) for installation and service. Navigation output from the LT-500 AHRS unit is available in the user interface. The LT-500 AHRS unit supports automatic levelling (pitch and roll), which can be used during the installation. The built-in magnetometer calibration algorithm will compensate for deviation, and the LT-500 AHRS unit will output reliable navigation data. The external PC installation and service software is available for optional configuration and maintenance of the LT-500 AHRS unit.

More than 40 years of experience have been put into the design and construction of the advanced LT-500 AHRS unit, with an exceptional performance and specification level.
