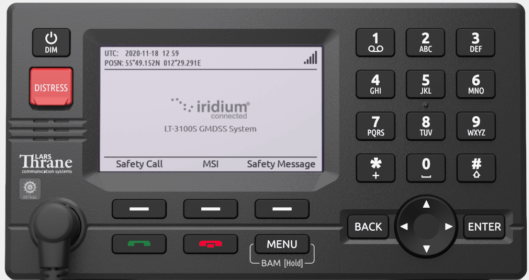

51-101812 Lars Thrane LT-3110S Control Unit for the 3100S GMDSS System
The standard LT-3100S GMDSS terminal is offered in a version that includes control unit & bracket mount, handset & cradle, antenna unit & power cable and fulfills all the GMDSS basic requirements.
$7,175.30 Inc. GST
92-101175 Lars Thrane LT-3110S Control Unit for 3100S GMDSS
SPECIFICATIONS: LT-3110S Control Unit, part# 51-101812
- Weight: 0.67 kg (1.48 lbs)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- Interfaces Ethernet, auxiliary, DC input, chassis ground, Antenna
- Unit (N conn.), Handset, SIM card
- Input voltage 12-24 VDC (2.2-1.7 A)
SYSTEM INFORMATION – LT-3100S GMDSS
This standard version(part# LT-3100S) fulfills all the GMDSS basic requirements.
The standard LT-3100S GMDSS terminal is offered in a version that includes control unit & bracket mount, handset & cradle, antenna unit & power cable.
NOTE: The full LT-3100S GMDSS SSAS System, you must order part# 90-102071-SSAS-BNDL
Certifications & Wheelmark Approval: Recognized by the IMO, the SOLAS convention and meets standards/certification requirements needed for widespread/multi-jurisdiction use of maritime satellite communications equipment (MED, Wheelmark)
Range of Safety & Standard Features: Comes standard with truly global Distress Alert, Safety Voice, and MSI via Iridium SafetyCast™; shore-to-ship calling, SSAS, LRIT, BAM, LRIT, ECDIS, GPS, and standard Iridium voice/data communications
The First & Only Truly Global GMDSS System: The Lars Thrane LT-3100S GMDSS System is the inaugural satellite solution for Iridium GMDSS Distress and Safety communications, delivering the world’s first and only truly global GMDSS solution.
With all Iridium GMDSS services, as well as standard Iridium® satellite communications available through a single, small-form-factor terminal, the LT-3100S GMDSS System can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity between the ship and shore.
The LT-3100S GMDSS system also provides voice, SMS, data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.
All-in-One Terminal for Distress Alert, Safety Voice, and MSI
- Truly Global Coverage, Even in High-Latitude Regions and Sea Area A4
- Recognized by the IMO and the SOLAS Convention, Meets Global Standards & Certification Requirements
- Support for Voice, SMS, Data, Vessel Tracking, and Other Standard Iridium® Services
- Includes Control Unit, Handset, and Antenna Unit
Key Features:
- SOLAS GMDSS Approved (Sea Areas A1, A2, and A3)
- 100% Global Distress Coverage
- Distress Alert & Distress Call
- Safety Calling & Safety Messaging
- Maritime Safety Information (MSI)
- Support for remote Alarm Panels
- Support for GMDSS Printer
- Support for Bridge Alert Management (BAM)
- Ship Security Alert System (SSAS)
- Long Range Identification and Tracking (LRIT)
- Voice, SMS, & Modem Data
- Single antenna cable solution (up to 500 m)
- High-performance GNSS/GPS receiver
- Webserver for configuration and maintenance
- MED Module B+D, RED(CE), FCC, ISED, ROHS2, Iridium
WHATS IN THE BOX
- LT-3110S Control Unit P/N 51-101812
- LT-3120 Handset P/N 51-100988
- LT-3121 Cradle P/N 51-101181
- LT-3130 Antenna Unit P/N 51-100989
- Bracket Mount, Control Unit P/N 91-100771
- Power Cable, 3m P/N 91-102118
- User & Installation Manaul P/N 95-101817
ACCESSORIES – Available to order separately, but NOT included in this pack.
LT-3100S SSAS Kit for LT-3100S GMDS System P/N 90-102072 LT-3140S Interface Unit P/N 51-101814
LT-3150S Alarm Panel P/N 51-101815
LT-3160S Printer Adapter P/N 51-101816
Flush Mount, Control Unit P/N 91-100772
Bracket Mount (1.5” to 2.5” tube), Antenna Unit P/N 91-100773
Pole Mount (1.5” tube), Antenna Unit P/N 91-100774
Aux Cable, 3m P/N 91-100768
Coaxial Cable Ø10mm, 10m, 25m and 50m
Key Features:
- SOLAS GMDSS Approved (Sea Areas A1, A2, and A3)
- 100% Global Distress Coverage
- Distress Alert & Distress Call
- Safety Calling & Safety Messaging
- Maritime Safety Information (MSI)
- Support for remote Alarm Panels
- Support for GMDSS Printer
- Support for Bridge Alert Management (BAM)
- Ship Security Alert System (SSAS)
- Long Range Identification and Tracking (LRIT)
- Voice, SMS, & Modem Data
- Single antenna cable solution (up to 500 m)
- High-performance GNSS/GPS receiver
- Webserver for configuration and maintenance
- MED Module B+D, RED(CE), FCC, ISED, ROHS2, Iridium
Specifications:
- LT-3110S Control Unit
- Weight: 658 g (1.45 lbs)
- Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- LT-3120 Handset Unit
- Weight: 290 g (0.64 lbs)
- Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- LT-3130 Antenna Unit
- Weight: 687 g (1.51 lbs)
- Dimensions: 151.1 x Ø 149.5 mm (5.95 x Ø 5.89 in)
- Temperature, operational: -40°C to +55°C (-40°F to +131°F)
- IP rating, dust and water: IP67
Brand
Lars Thrane

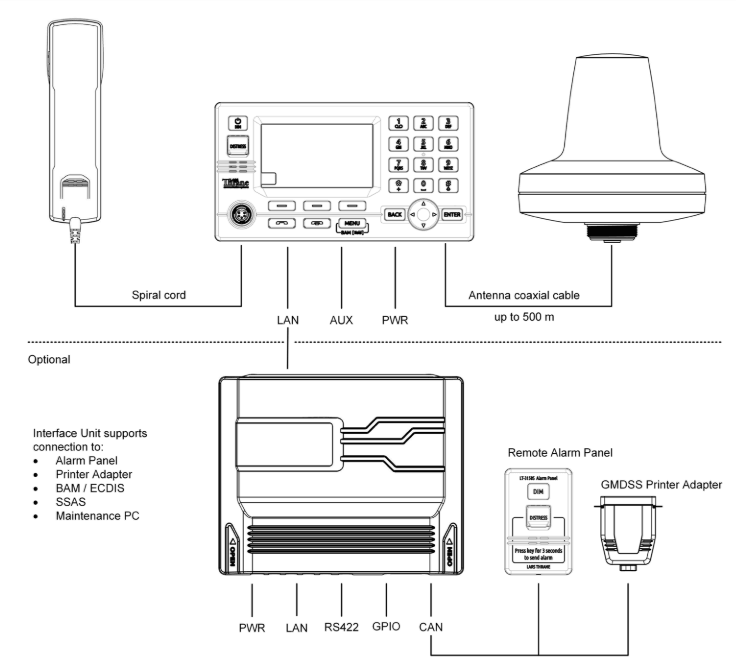

90-102071 LT-3100S GMDSS System – Basic System, Includes the following:
- 51-101812 LT-3110S Control Unit
- 51-100988 LT-3120 Handset
- 51-101181 LT-3121 Cradle
- 51-100989 LT-3130 Antenna Unit
- 91-100771 Bracket Mount, Control Unit
- 91-102118 Power Cable, 3m
- 95-102251 User & Installation Manual
Additional services like SSAS, GMDSS Alarm Panels and printer, will require the LT-3140S Interface Unit which is NOT included.
