51-102664 Lars Thrane LT-4210 Control Unit for the 4200 System
$3,095.40 Inc. GST
51-103149 Lars Thrane LT-4230L Antenna-Terminal, Land Mobile
$9,179.50 Inc. GST
51-103118 Lars Thrane LT-4210S Control Unit for the 4200S GMDSS System
LT-4210S Compatibility: LT-4200S GMDSS Systems ONLY
$4,195.40 Inc. GST

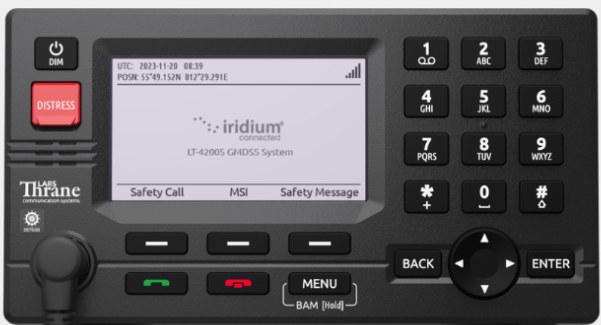

92-104507 51-103118 Lars Thrane LT-4210S Control Panel Unit
Compatibility: LT-4200S GMDSS Systems

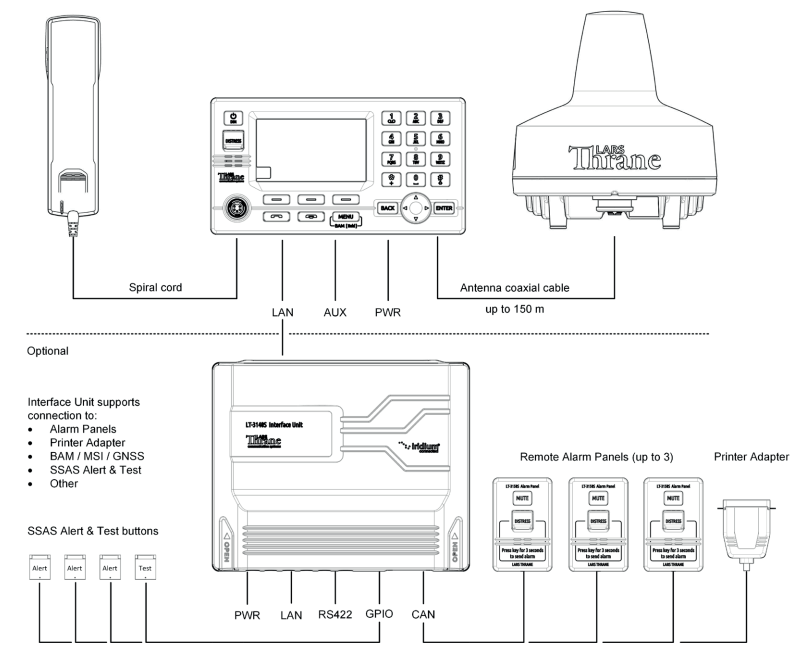

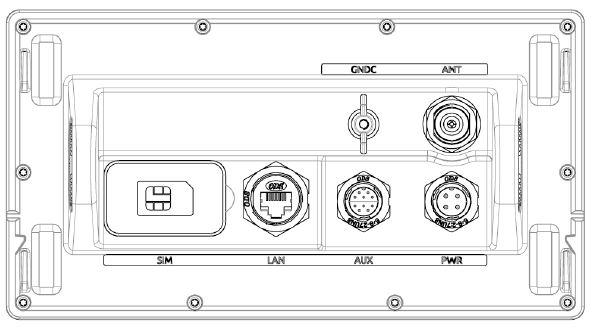

The LT-4210S Control Unit has the following interfaces:
• 4-pin power connector (male), marked ‘PWR’
• Chassis ground connector, marked ‘GNDC’
• N connector (female) for coaxial cable to the LT-4230 Antenna Unit, marked ‘ANT’
• Ethernet (RJ-45) connector, marked ‘LAN’
• 10-pin auxiliary connector (male), marked ‘AUX’
• SIM card holder, marked ‘SIM’
• 5-pin connector (female) for LT-3120 Handset (front of the control unit)
Control Panel specifications LT-4200S Control Unit
- Weight 0.67 kg (1.48 lbs)

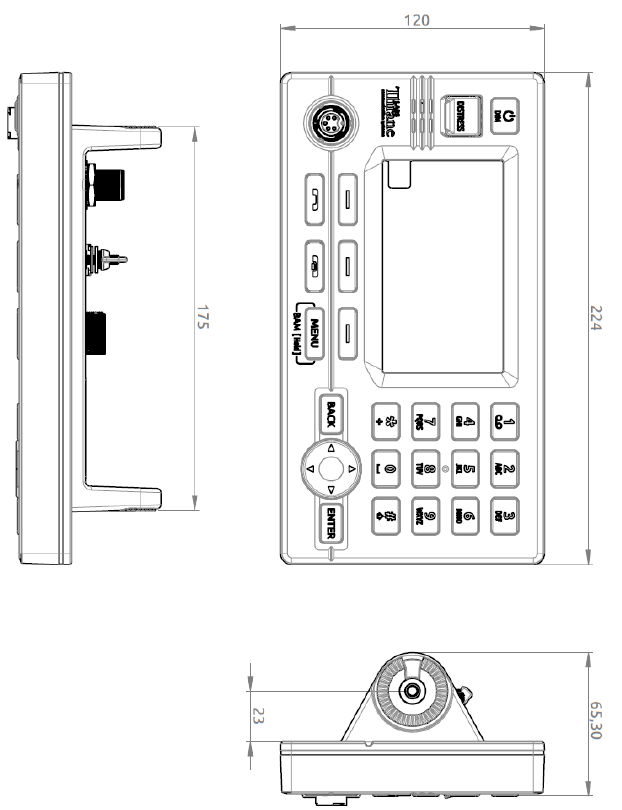

- Dimensions 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
- Temperature, operational -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water IP32
- Interfaces Ethernet, auxiliary, DC input, chassis ground
- Antenna Unit (N conn.), handset, SIM card
- Input power 24 VDC (8 A)
