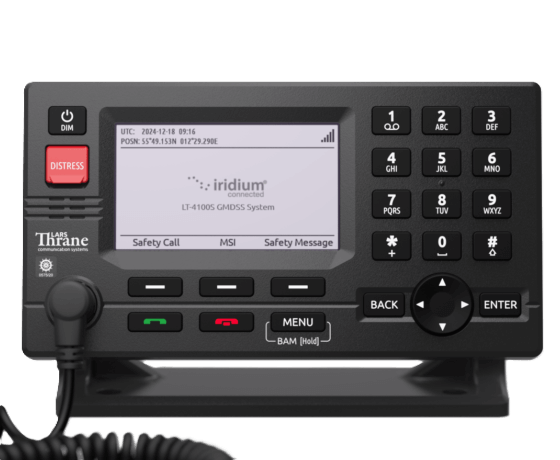

51-104870 Lars Thrane LT-4110S Control Unit, for the 4100S GMDSS System
This control unit is for the LT-4100S GMDSS System only
$7,466.80 Inc. GST
51-104870 Lars Thrane LT-4110S Control Unit, for 4100S GMDSS Systems
Compatibility: This Control unit is for the LT-4100S GMDSS System only
In this Pack:
- 1pce Control Unit only
Note: This pack contains no additional accessories or parts
The LT-4110S Control Unit has the following interfaces:
- 4-pin power connector (male), marked ‘PWR’
- Chassis ground connector, marked ‘GNDC’
- N connector (female) for coaxial cable to the LT-4130 Antenna Unit, marked ‘ANT’
- Ethernet (RJ-45) connector, marked ‘LAN’
- 10-pin auxiliary connector (male), marked ‘AUX’
- SIM card holder, marked ‘SIM’
- 5-pin connector (female) for LT-3120 Handset (front of the control unit)
SPECIFICATIONS – LT-4110S Control Unit
- Weight 0.67 kg (1.48 lbs)
- Dimensions 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
- Temperature, operational -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water IP32
- Interfaces: Ethernet, auxiliary, DC input, chassis ground Antenna Unit (N conn.), handset, SIM card
- Input power 12-24 VDC (2.0-1.0 A)
- Compass Safe Distance, std: Compass
- Safe Distance, steer: 0.60 m (2.0 ft) 0.40 m (1.3 ft)
INFO REFERENCE FOR LT-4100S GMDSS SYSTEM AS BELOW**********************
90-104506 Lars Thrane LT-4100S GMDSS System, Basic
The LT-4100S GMDSS System is an Iridium satcom product supporting all GMDSS requirements for SOLAS vessels with 100% global coverage.
The LT-4100S GMDSS System is fully compliant and tested towards the new GMDSS standard IEC 61097-16 (2019). The LT-4100S GMDSS System is MED / Wheelmark approved.
The standard LT-4100S GMDSS System is offered in a version that includes control unit & bracket mount, handset & cradle, antenna unit & power cable. The standard version fulfills all the GMDSS basic requirements.
Additional services like SSAS, GMDSS Alarm Panels and printer, will require the LT-3140S Interface Unit.
The LT-4110S Control Unit has the following interfaces:
- 4-pin power connector (male), marked ‘PWR’
- Chassis ground connector, marked ‘GNDC’
- N connector (female) for coaxial cable to the LT-4130 Antenna Unit, marked ‘ANT’
- Ethernet (RJ-45) connector, marked ‘LAN’
- 10-pin auxiliary connector (male), marked ‘AUX’
- SIM card holder, marked ‘SIM’
- 5-pin connector (female) for LT-3120 Handset (front of the control unit)
Key Features:
- SOLAS GMDSS Approved (Sea Areas A1, A2, and A3)
- 100% Global Distress Coverage
- Distress Alert & Distress Call
- Safety Calling & Safety Messaging
- Maritime Safety Information (MSI)
- Support for remote Alarm Panels
- Support for GMDSS Printer
- Support for Bridge Alert Management (BAM)
- Ship Security Alert System (SSAS)
- Long Range Identification and Tracking (LRIT)
- 2 x Voice Channels
- IP-data: 22 kbps (up) / 88 kbps (down)
- Single antenna cable solution (up to 500 m)
- High-performance GNSS/GPS receiver
- Webserver for configuration and maintenance
- MED Module B+D, RED(CE), FCC, ISED, ROHS2, Iridium
90-104506 – In this Pack:
- 51-104870 LT-4110S Control Unit
- 51-100988 LT-3120 Handset
- 51-101181 LT-3121 Cradle
- 51-102640 LT-4130 ADU(Antenna-Terminal) Unit
- 91-100771 Bracket Mount, Control Unit
- 91-102118 Power Cable, 3m
- 4 x Stainless steel A4 screws (for Bracket Mount, Control Unit)
- 2 x Stainless steel A4 screws (for Cradle)
- 4 x Unit Test Sheets
- 95-104951 LT-4100S GMDSS User & Installation Manual
INSTALLATION NOTE: Antenna unit mounts are not included in the LT-4100S GMDSS Satellite Communications System – Basic (P/N: 90-104949) and must be ordered separately. The antenna unit must only be mounted, using a pole mount, delivered by Lars Thrane A/S. The antenna unit mounts are listed with part numbers (P/N) in Accessories as below.
Accessories available to order, but NOT included in this pack:
GMDSS parts – The following GMDSS parts are not part of the basic system and must be ordered separately:
- 51-101814 LT-3140S Interface Unit
- 51-101815 LT-3150S Alarm Panel (incl. 25m cable)
- 51-101816 LT-3160S Printer Adapter (incl. 25m cable) SSAS parts
The following SSAS individual parts – are not part of the basic system and must be ordered separately:
- 91-102073 SSAS Alert Button (incl. 50m cable)
- 91-102074 SSAS Test Button (incl. 50m cable)
The SSAS Full Kit – is offered consisting of the following parts (Order No.: 90-102072):
- 51-101814 LT-3140S Interface Unit, 1 pcs.
- 91-102073 SSAS Alert Button (incl. 50m cable), 2 pcs.
- 91-102074 SSAS Test Button (incl. 50m cable), 1 pcs.
Mounts – The following accessory parts are not part of the basic system and must be ordered separately:
- 91-100772 Flush Mount, for Control Unit
- 91-100774 Pole Mount (1.5” pipe, 38.8mm), for Antenna Unit
- 91-102550 Pole Mount (2.0” pipe, 53.0mm), for Antenna Unit
Cable and connectors – Cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes included with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
NOTE: A coaxial cable up to a length of 150 meters can be used for connecting the LT-4110S Control Unit and the LT-4130 Antenna Unit. Details about the coaxial cable, specification and cable lengths, are described in LT-4130 Antenna Unit on page 38 of the User and Installation manual.
LT-4100S GMDSS FEATURES
Installation Wizard – The installation and setup of the LT-4100S GMDSS system has been made user-friendly by adding an Installation Wizard that will guide you through the initial configuration and activation of the system on the Iridium GMDSS System (IGS).
Activating Distress Distress Alert can be activated by pushing the DISTRESS button on the front of the control unit. A Distress Alert message will be sent to the Iridium GMDSS System (IGS) and immediately forwarded to the Rescue Coordination Center (RCC).
Distress Call – The LT-4100S GMDSS System is supporting both Safety Calling (priority) and General Calling (non-priority). The terminal can be configured to automatically setup a Safety Voice call (priority: Distress) to the RCC, if the DISTRESS button has been activated.
Basic Overview
The LT-4100S GMDSS System is small and compact, with no requirements for either message terminal or printer, and offers the Iridium GMDSS services, High quality Voice (2 channels), and IP Data.
The built-in GNSS/GPS receiver supports tracking functionality and can output NMEA 0183 position data, and can interface to external BAM and ECDIS systems.
The Antenna Unit can be installed up to 500 meters from the Control Unit.
Specifications LT-4100S GMDSS Satellite Communications System
Certification & standards Maritime CE, FCC, ISED, RCM, RED, MED (Wheelmark), RoHS 2, Iridium® Vibration, operational IEC 60945 Vibration, shock Half sine 20 g/11 ms Compass Safe Distance, std. Compass Safe Distance, steer. BAM EUT function types Power consumption: Transmit, max 0.3 – 1.4 m (1.0 – 4.6 ft) 0.3 – 0.9 m (1.0 – 3.0 ft) P 34 W LT-4110S Control Unit Weight 0.67 kg (1.48 lbs) Dimensions 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in) Temperature, operational -15°C to +55°C (+5°F to +131°F) IP rating, dust and water IP32 Interfaces Ethernet, auxiliary, DC input, chassis ground Antenna Unit (N conn.), handset, SIM card Input power 12-24 VDC (2.0-1.0 A) Compass Safe Distance, std. Compass Safe Distance, steer. 0.60 m (2.0 ft) 0.40 m (1.3 ft) LT-3120 Handset Weight 0.30 kg (0.66 lbs) Dimensions 52.8 x 208.8 x 38.2 mm (2.08 x 8.22 x 1.50 in) Temperature, operational -15°C to +55°C (+5°F to +131°F) IP rating, dust and water IP32 Compass Safe Distance, std. Compass Safe Distance, steer. 0.60 m (2.0 ft) 0.35 m (1.1 ft) LT-3121 Cradle Weight 0.07 kg (0.15 lbs) Dimensions 106.9 x 57.4 x 29.3 mm (4.21 x 2.26 x 1.15 in) Compass Safe Distance, std. Compass Safe Distance, steer. 1.40 m (4.6 ft) 0.90 m (3.0 ft) LT-4130 Antenna Unit Weight (without mount) 1.39 kg (3.05 lbs) Dimensions 182 x Ø 162 mm (7.16 x Ø 6.39 in) Temperature, operational (24 VDC input power) -40°C to +55°C (-40°F to +131°F) IP rating, dust and water IP67 Interfaces Control Unit (N conn.) Antenna communication cable Coaxial cable, up to 500 m (1500 ft) Compass Safe Distance, std. Compass Safe Distance, steer. 0.30 m (1.0 ft) 0.30 m (1.0 ft)
LT-3140S Interface Unit Weight Dimensions Temperature, operational IP rating, dust and water Interfaces Input power Power consumption: operating mode, max Compass Safe Distance, std. Compass Safe Distance, steer. LT-3150S Alarm Panel Weight / Weight (incl. 25m cable) Dimensions Temperature, operational IP rating, dust and water Interfaces Compass Safe Distance, std. Compass Safe Distance, steer. LT-3160S Printer Adapter Weight / Weight (incl. 25m cable) Dimensions Temperature, operational IP rating, dust and water Interfaces Compass Safe Distance, std. Compass Safe Distance, Steer. Warranty Maintenance Lars Thrane A/S 0.71 kg (1.57 lbs) 227.0 x 186.0 x 40.0 mm (8.94 x 7.32 x 1.57 in) -15°C to +55°C (+5°F to +131°F) IP20 4 x Ethernet, 2 x RS-422, 4 x GPIO, 4 x CAN DC input, chassis ground 24 VDC (0.4 A) 10.0 W 0,30 m (1.0 ft) 0,30 m (1.0 ft) 0.07 kg (0.15 lbs) / 1.29 (2.84 lbs) 52.0 x 82.0 x 26.0 mm (2.05 x 3.23 x 1.02 in) -15°C to +55°C (+5°F to +131°F) IP30 1 x CAN 0,70 m (2,3 ft) 0,50 m (1,6 ft) 0.03 kg (0.07 lbs) / 1.25 kg (2.76 lbs) 62.1 x 68.1 x 19.4 mm (2.44 x 2.68 x 0.76 in) -15°C to +55°C (+5°F to +131°F) IP40 1 x CAN 0,70 m (2,3 ft) 0,50 m (1,6 ft) 2 year None
Specifications:
- LT-4110 Control Unit
- Weight: 658 g (1.45 lbs)
- Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- LT-3120 Handset Unit
- Weight: 290 g (0.64 lbs)
- Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)
- Temperature, operational: -15°C to +55°C (+5°F to +131°F)
- IP rating, dust and water: IP32
- LT-4130/-L Antenna Unit
- Weight: 1.39 kg (3.05 lbs)
- Dimensions: 182.0 x Ø 162.0 mm (7.16 x Ø 6.39 in)
- Temperature, operational: -40°C to +55°C (-40°F to +131°F)
- IP rating, dust and water: IP67
