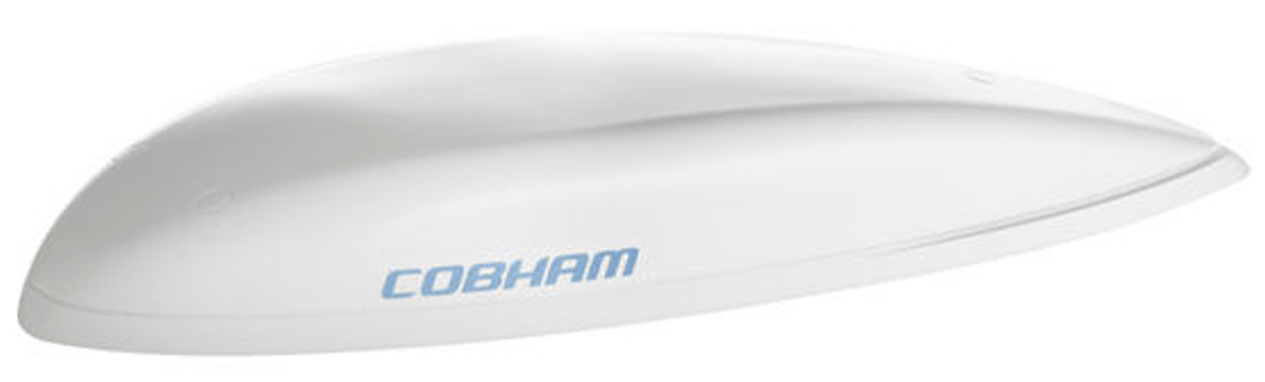

677-A0213 Cobham Aviator LGA-5005 HLD Enhanced Low Gain Antenna
677-A0213 Cobham Aviator LGA-5005 HLD Enhanced Low Gain Antenna, Aeronautical
The LGA-5005 is intended to comply with DO-262B, Appendix E, as part of an AES4 system.
LGA-5005 may only be installed with an AVIATOR-S CSDU [SDU-5045, part number 405045-vvccc] and SCM [SCM-5055, part number 405055-vvccc].
Together, these three items form a complete AES4 system, as defined in DO-262B, Appendix E. The LGA-5005 is powered by the CSDU (SDU-5045) of the AVIATOR 200S system.
System overview
The purpose of the LGA-5005 is to provide an L-band radio link between the Inmarsat SwiftBroadband Class 4 SATCOM system AVIATOR 200S and an Inmarsat I4 satellite.

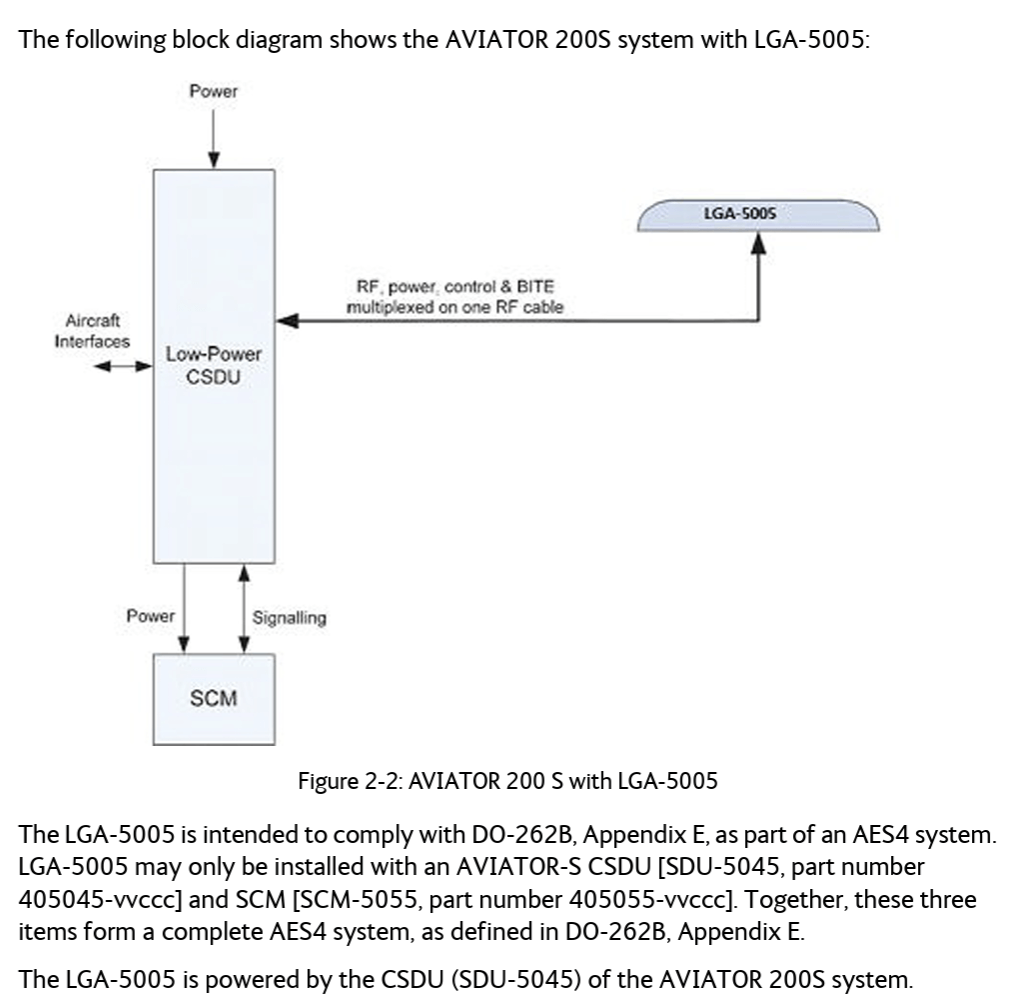

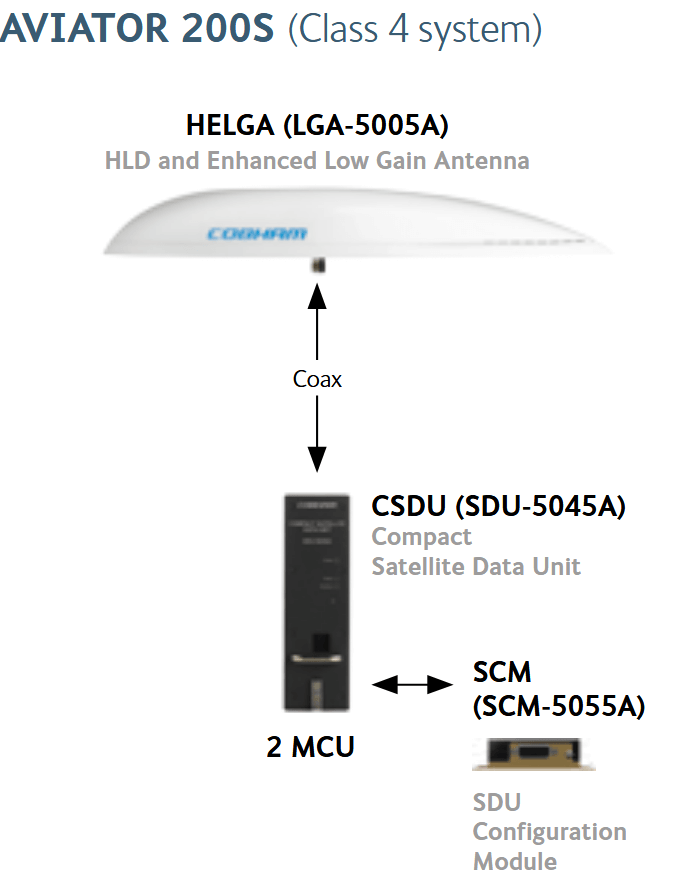

For SwiftBroadband services, the LGA-5005 is part of a single channel aeronautical SATCOM system comprising the following subsystems (as defined in ARINC 781-6, Attachment 7, Configuration 3 [4]), interconnected as shown in Figure 2-2:.
- LGA-5005 HLD/Enhanced Low Gain Antenna (HELGA), part# 677-A0213
- SDU-5045 Compact Satellite Data Unit (CSDU)
- SCM-5055 CSDU Configuration Module (SCM), part# 677-A0217
LGA-5005 Features
- Diplexer Low Noise Amplifier (DLNA) and High Power Amplifier (HPA) built into the antenna
- Complies with ARINC 741 LGA (Low Gain Antenna) mounting footprint requirements
- Unique 4th generation phased array technology
LGA-5005 Specifications
- Power Requirements 28 V DC, < 50 W, supplied by the CSDU
- Dimensions (nominal) L = 379 mm [14.92″] W = 141 mm [5.55″] H = 62 mm [2.44″] (at widest point)
- Weight (max) 1.82 kg [4.0 lbs]
- Operating temperature- 55 °C to + 70 °C [-67°F to +158°F]
- Ground survival temperature- 55 °C to + 85 °C [-67°F to +185°F]
- Storage Up to 30 years in the original packing (< 50% RH)
- Altitude Up to 16764 m [55 000 ft]
- Frequency, Receive Band 1518.0 MHz – 1559.0 MHz Frequency,
- Transmit Band 1626.5 MHz – 1660.5 MHz and 1668.0 MHz – 1675.0 MHz
- Software RTCA / DO-178C
- Level D Hardware RTCA / DO-254 Level D
