90-102825 Lars Thrane LT-4100L System, Land

The LT-4100L Satellite Communications System (Iridium Certus® 100) is a land satellite communication product from Lars Thrane A/S. The LT-4100 system is designed for the professional land market system meets all standards and certification requirements needed for worldwide maritime satellite communication equipment.

PERFORMANCE

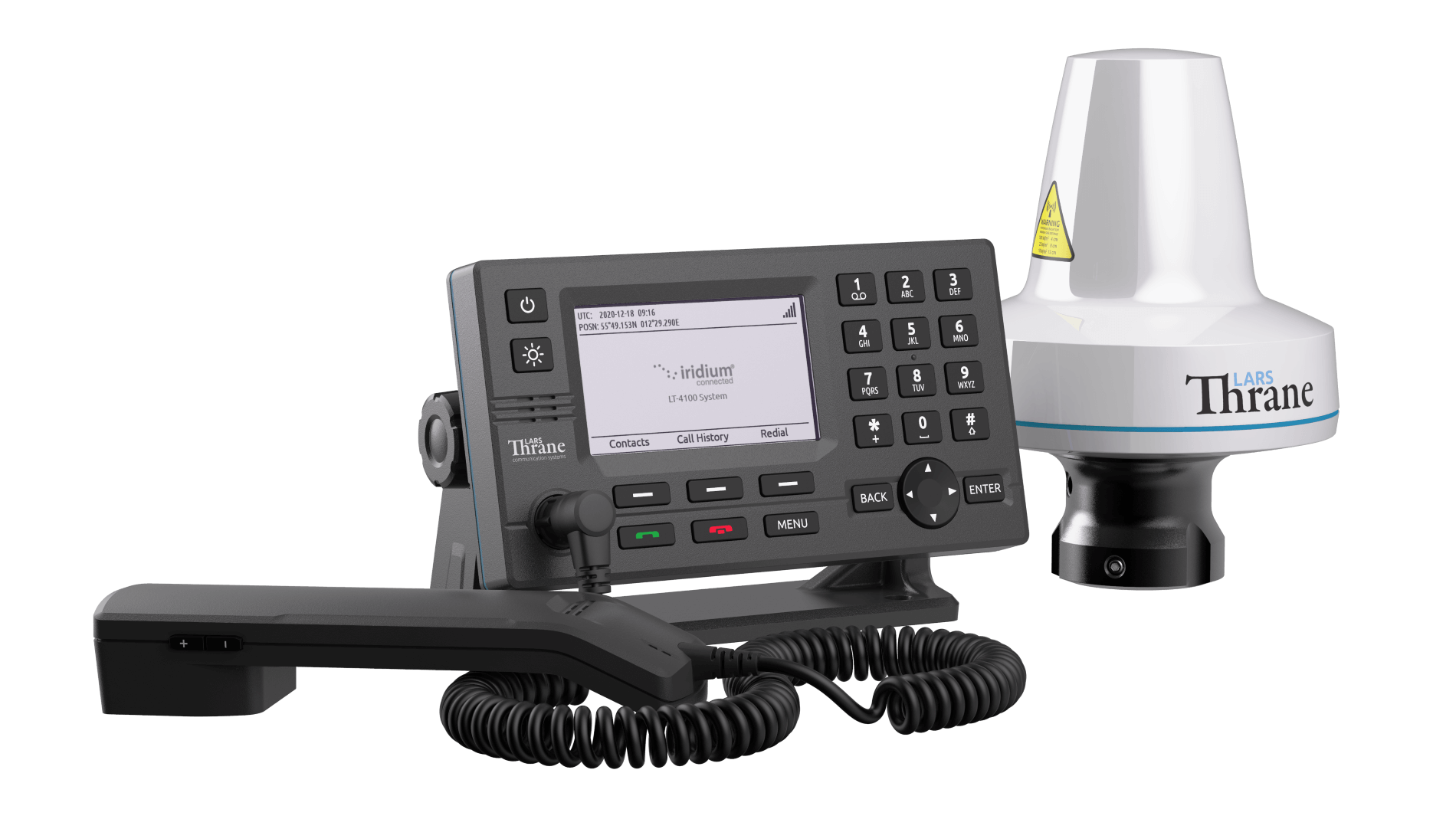

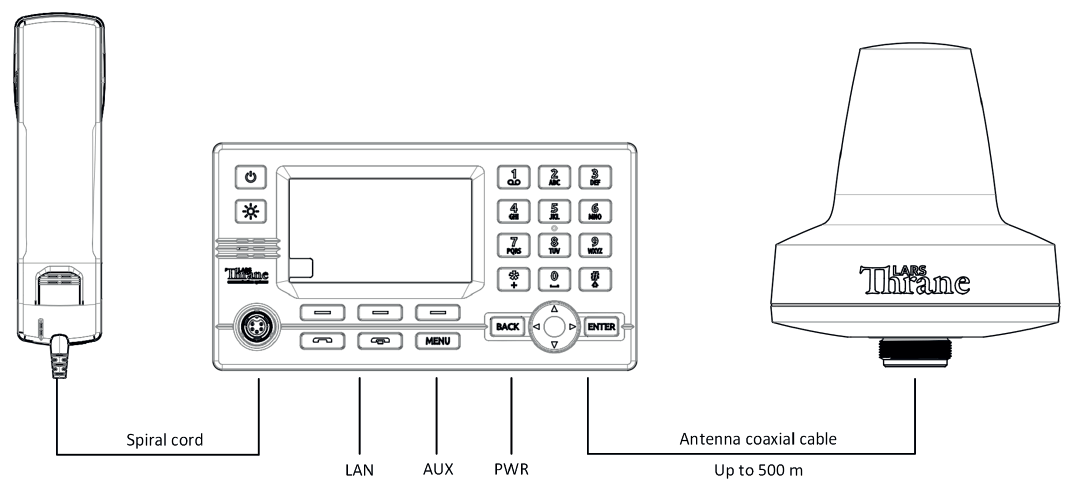

The LT-4100L system has voice and data capabilities with 100% global coverage provided by the Iridium® network. The LT-4100L system consists of a control unit, antenna unit, handset, and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 500 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites.

The LT-4100L system can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity. The LT-4100 system offers 2 high quality voice channels, and IP-data 22 kbps (up) / 88 kbps (down), making it the perfect satellite communication product in any Land-Mobile Vehicle or Building.

The LT-4100L system is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).

90-102825 – Whats in the Box?

• LT-4110 Control Unit P/N: 51-102663
• LT-3120 Handset P/N: 51-100988
• LT-3121 Cradle P/N: 51-101181
• LT-4130L Antenna Unit (Land-Mobile) P/N: 51-102827
• Bracket Mount, Control Unit P/N: 91-100771
• Power Cable, 3m P/N: 91-102118
• User & Installation Manual P/N: 95-102576
• 4 x Stainless steel A4 screws (for Bracket Mount, Control Unit)
• 2 x Stainless steel A4 screws (for Cradle)
• 4 x Unit Test Sheets
• 95-102576 LT-4100 User & Installation Manual

LT-4100 / LT-4100L Accessories (available to buy, but NOT included in this pack)

Mounts – The following accessory parts are not part of the basic system and must be ordered separately:

• 91-100772 Flush Mount, Control Unit
• 91-100774 Pole Mount (1.5” pipe, Ø38.8mm), Antenna Unit
• 91-102550 Pole Mount (2.0” pipe, Ø53.0mm), Antenna Unit

Cable and connectors – The following cable and connector parts are not part of the basic system and must be ordered separately:

• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm

Note: Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.

The LT-4110 Control Unit has the following interfaces:

• 4-pin power connector (male), marked ‘PWR’
• Chassis ground connector, marked ‘GNDC’
• N connector (female) for coaxial cable to the LT-4130 Antenna Unit, marked ‘ANT’
• Ethernet (RJ-45) connector, marked ‘LAN’ • 10-pin auxiliary connector (male), marked ‘AUX’
• SIM card, marked ‘SIM’
• 5-pin connector (female) for LT-3120 Handset (front of the control unit)

INSTALLATION

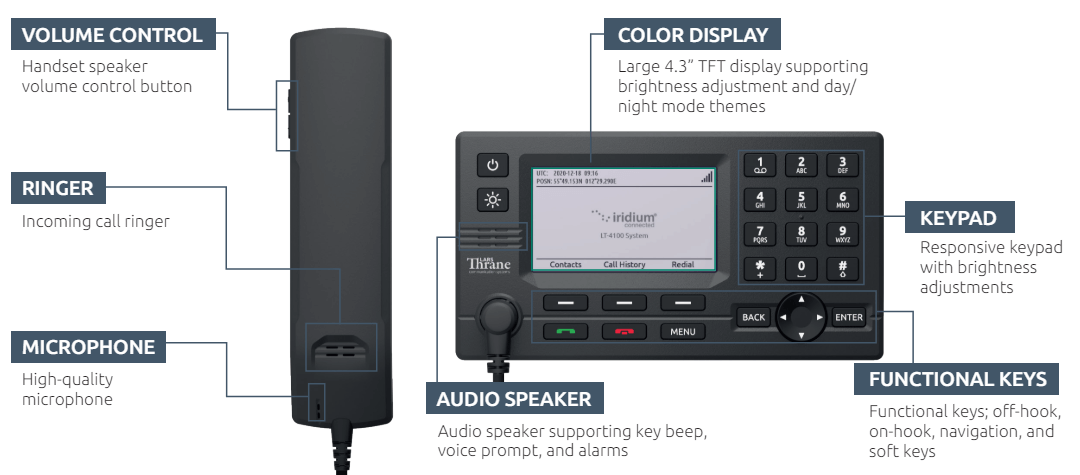

The LT-4100 system is very easy to install. Everything is included in the box to get started with the installation and operating the LT-4100 system. The control unit can be installed using either a bracket mount or flush mount. The antenna unit can be mounted using either a pole mount (1.5″ pipe, Ø38.8mm) or pole mount (2.0″ pipe, Ø53.0mm). The control unit has a large 4.3″ TFT display, from where the system can be operated with overview and ease. The built-in webserver can be used for service and maintenance.

More than 40 years of experience have been put into the design and construction of the LT-4100 system, with an exceptional performance and specification level.
