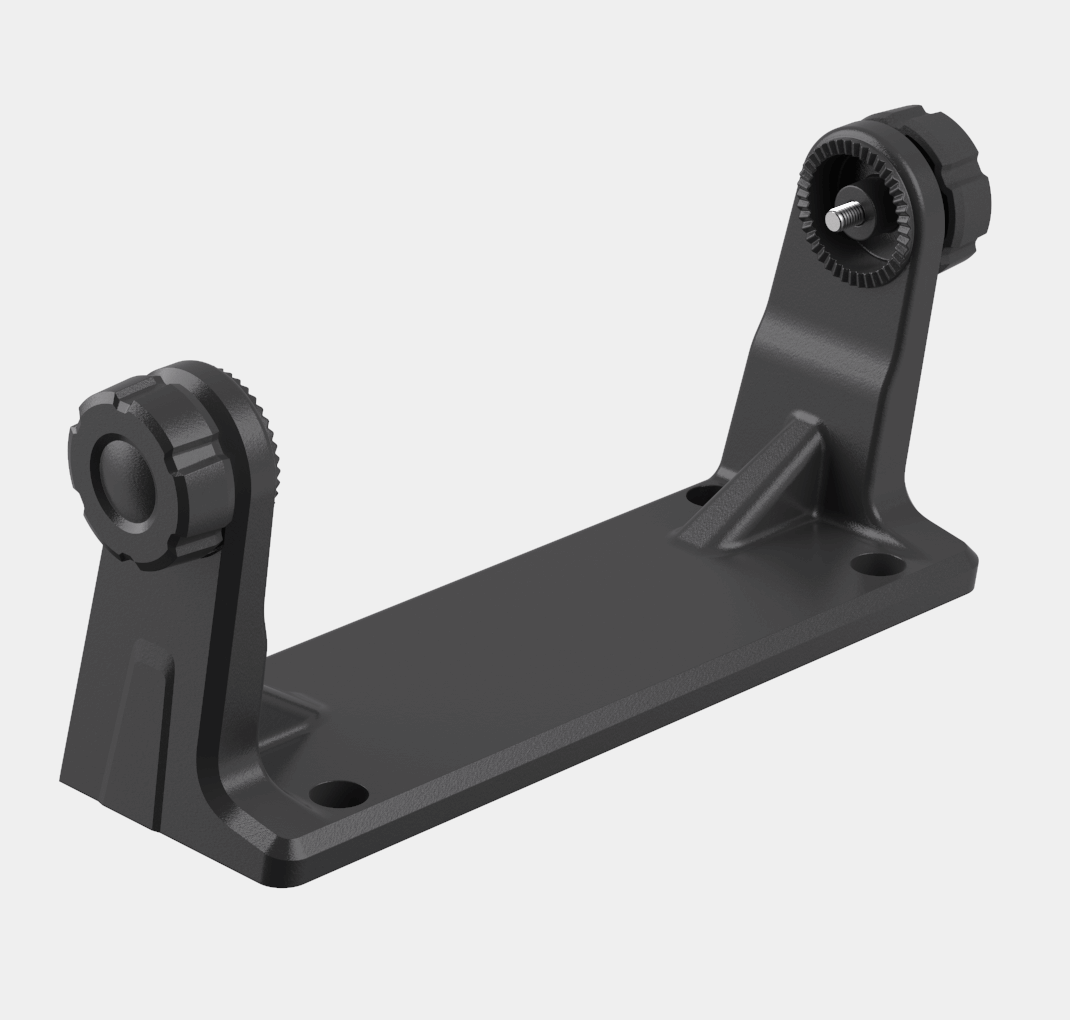

91-100771 Lars Thrane Bracket Mount, for Control Units

91-100771 Lars Thrane Bracket Mount, for Control Units

Compatibility: All LT-31xx, 41xx, 42xx Systems

TYPICAL APPLICATION:

The LT-3110S Control Unit must be mounted with either the Bracket Mount, Control Unit (P/N: 91-100771) or Flush Mount, Control Unit (P/N: 91-100772)

The Flush Mount, Control Unit is not included in the LT-3100S GMDSS Satellite
Communications System – Basic (P/N: 90-102071) and must be ordered separately.

Mounting and installation considerations

For optimum system performance, the following guidelines on where to install and mount the LT-3110S Control Unit must be followed.

It is recommended to mount the unit in a location, which fulfils these requirements:

• Mount the unit indoor (not exposed to direct water)
• Mount the unit using either the bracket mount or flush mount
• Mount the unit on a rigid structure with a minimum of exposure to vibration and shock
• Mount the unit in an area with an ambient temperature between -15°C to +55°C (+5°F to +131°F)
