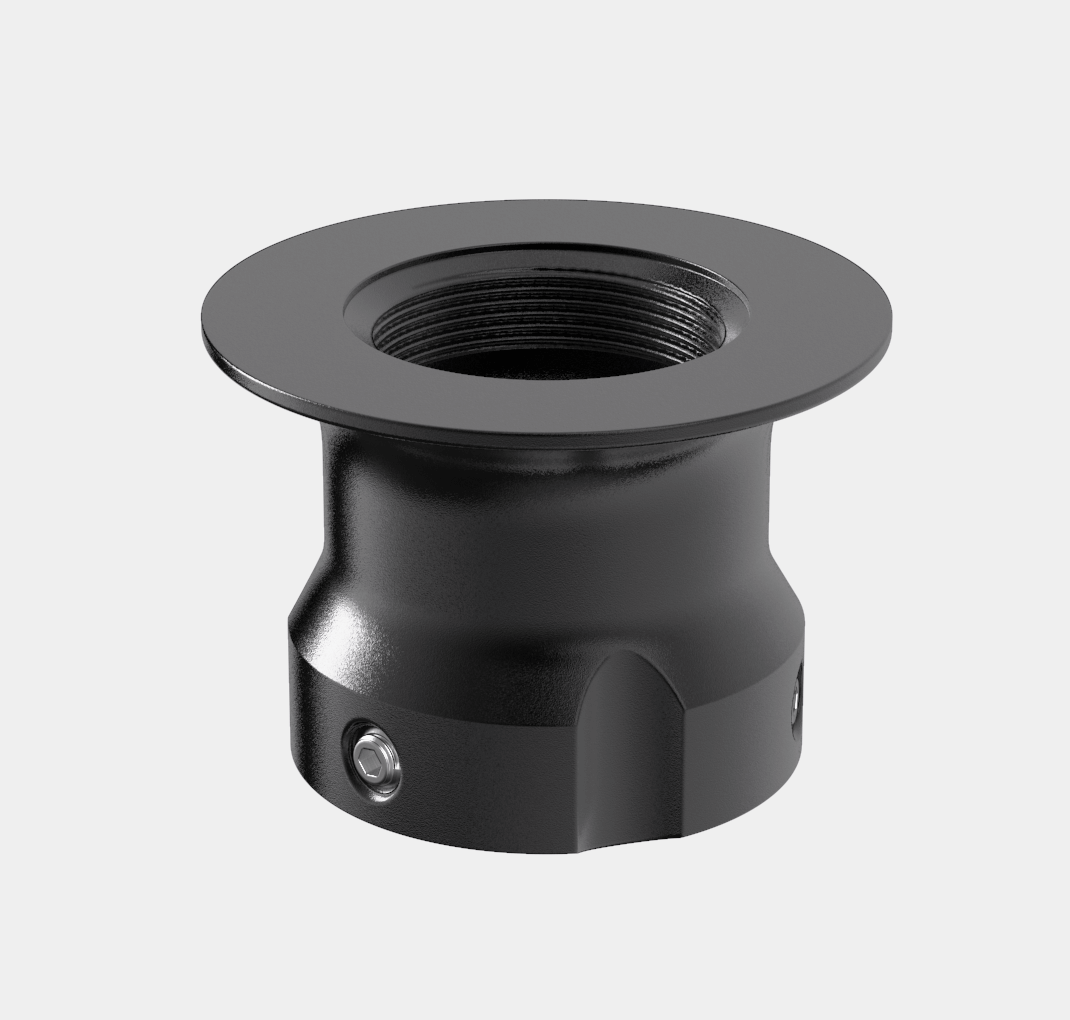

91-100774 Lars Thrane Pole Mount, 1.5in(?38.8mm), for Antenna
The Pole Mount 1.5in pipe(Ø38.8mm), Antenna Unit only supports a 1.5in(Ø38.8mm) pipe(outside diameter).

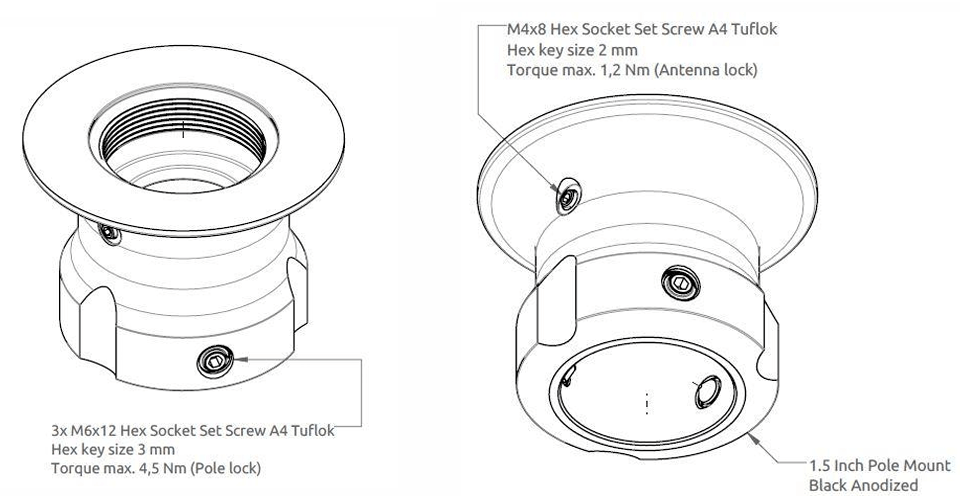

The pinot or grub screw (antenna and pole lock) torques are specified in the user installation guide. The pole mount is made of milled aluminum (black anodized).
The pinot screws(or grub screws) are made of A4 stainless steel.
$232.10 Inc. GST
91-100774 Lars Thrane Pole Mount, 1.5in(Ø38.8mm), for Antenna
- Size: 1.5in pipe(Ø38.8mm),
- Material: Passivated Steel
- Compatibility: for LT-xxxx Antennas
Pole mount installation procedure:
1. Screw the pole mount onto the LT-xxxx Antenna Unit using the Head screws (max torque = 12 Nm)

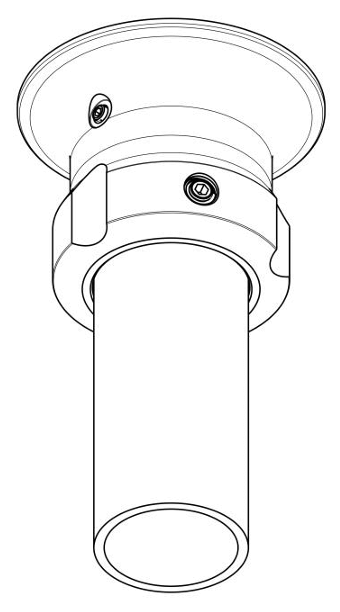

2. The LT-xxxx Antenna Unit and pole mount can now be mounted on the 2.0” pipe. Fasten the three pole lock pinot screws, as illustrated in Figure 34 (max torque = 88 Nm)
3. Feed the coaxial cable through the supplied cable hose
4. Fasten the coaxial cable to the LT-xxxx Antenna Unit (N connector)
5. Apply self-volcanic tape on the N connector and cable to protect against saltwater and corrosion
NOTE: The Antenna Unit interfaces to a pipe of maximum 2.0” (53.0 mm), measured outer-pipe diameter.
ACCESSORIES – NOT INCLUDED – Below are not part of this system and must be ordered separately:
GENERIC TERMINAL-ANTENNA INFORMATION
The L-xxxx Antenna Unit should be mounted with free line of sight to the Iridium satellites for best possible performance.
The best location will typically be at the top of the lantern mast, where there are no obstructions blocking the Iridium satellite link. The LT-xxxx Antenna Unit is designed to maintain a communication link to the Iridium satellites in all weather conditions.
TO ORDER – Pole Mount Options for LT-xxxx Antenna
- Part# 91-102469 – Stainless Steel, Pole Bracket Mount, Ø38.8 to 63.5mm(1.5 to 2.5in), with Cable Hose
- Part# 91-100774 – Passivated Steel, Pole Mount, Inside diameter: Ø38.8mm(2.0″), Wt. 190g(0.42lbs)
- Part# 91-102550 – Passivated Steel, Pole Mount, Inside diameter: Ø53.0mm(2.0″), Wt. 240g(0.53lbs)
- Part# 91-102967 – Stainless Steel(A4), Pole Mount, Inside diameter: Ø53.0mm(2.0″)
NOTE: If installing the LT-xxxx Antenna Unit without the use of any Pole Mount, the Antenna Unit may be base-fixed-mounted, the max screw length is 25mm(refer to the user/installation manual for specific LT-xxxx Antenna Mounting instructions.
TO ORDER – Cable, Connectors and Tooling
The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
Antenna Mounting and installation considerations:
• Mount the unit vertically (with the N connector pointing down)
• Mount the unit with free line of sight to the Iridium® and GNSS satellites. Make sure that the unit can receive signals from the Iridium® and GNSS satellites
• Mount the unit on a rigid structure with a minimum of exposure to vibration and shock
• Mount the unit using either the Bracket Mount or Pole Mount provided by Lars Thrane A/S
• Mount the unit outdoor with an ambient temperature between -40°C to +55°C (-40°F to +131°F)
• Mount the unit with a minimum angle of 10 degrees towards a radar antenna (above or below) and keep a minimum distance of 2.5 m (8 ft)
• Mount the unit at least 1 m. (3 ft.) away from radio transmitting antennas (VHF, UHF, MF-HF)
• Mount the unit away from Inmarsat and transmitting VSAT antennas
The LT-xxxx Antenna Unit must be installed outside the radar main beam. Typically, this is in the order of 10 degrees. To avoid near field antenna coupling, a minimum distance of 2.5 m (6 ft) between the radar antenna and the LT-xxxx Antenna Unit must be obeyed. Figure 13 is illustrating how the LT-xxxx Antenna Unit should be mounted to avoid interference from radars.
IMPORTANT: Failing to obey the specified installation conditions will void the warranty. However, depending on the specific radar frequency and power level, the separation distance between the radar and the LT-xxxx Antenna Unit may be reduced, with no impact on the antenna performance. The performance of the LT-xxxx Antenna Unit should be validated when the LT-xxxx system is installed.
TO ORDER – Cable and connectors
The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
